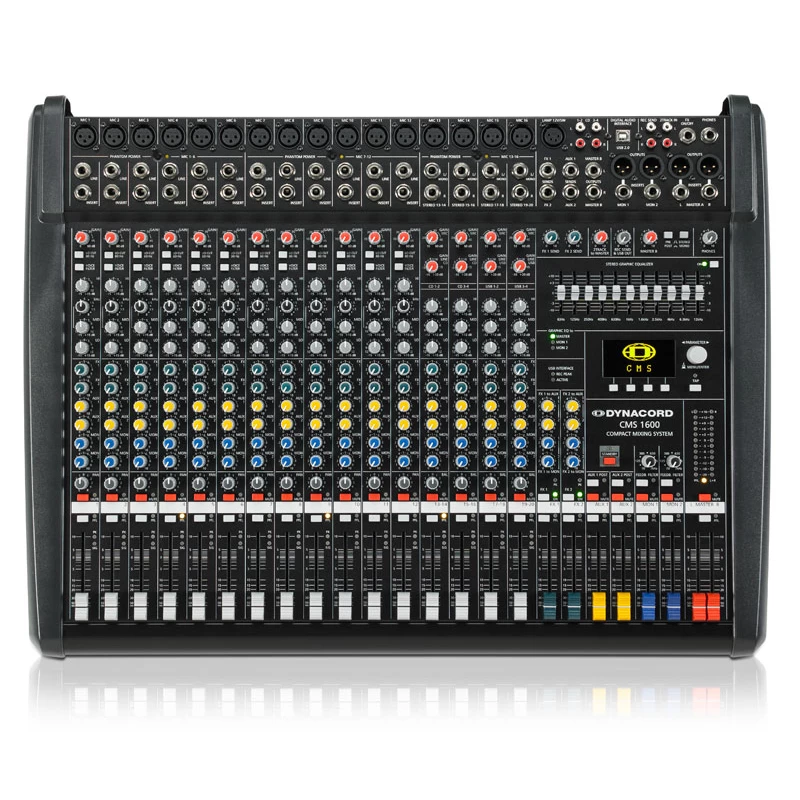

16-CHANNEL COMPACT MIXING SYSTEM

• Intuitive mixer section: 16 input channels with 12 Mic/Line, 4 Mic/Stereo-Line
• 2 High-Quality FX processors, editable with 100 factory and 20 user presets
• Professional 4x4 24-bit/96kHz USB interface, recording software and MIDI interface for FX control
• Stereo EQ for the main mix
• First-class components ( e.g. ALPS faders and potentiometers)
• Large, contrast rich OLED display
• Lightweight (12kg) compact package

MIC/LINE Input ChannelsThe XLR microphone input is equipped with an extremely high quality, ultra-low noise, discrete preamp. The +48V phantom power for condenser microphones can be switched in groups of six. The Line Input and Channel Insert are implemented as TSR sockets; gain can be controlled in the range of 0-60 dB. The switchable Lo Cut filter (80Hz, 18dB) serves to eliminate low-frequency noise. A very typical DYNACORD feature is the asymmetrical Voicing Filter that allows to emphasize the voice powerfully in the mix.
Optimized for ease-of-use, the 3-band semi-parametric equalizer allows with a few turns requisite corrections, swiftly and intuitively. With its extended buss structure, the CMS-3 offers very flexible configuration options with 6 AUX busses available: 2 (FX) are assigned to the two effects sends;
2 (AUX) can be configured globally either as monitor or effects sends;
2 (MON) are designed as monitor sends, each equipped with a sweep able anti-feedback (notch) filter in the Master section as a quick help to prevent feedback on stage.
MUTE and PFL switches, each with its own LED, make it possible to mute each input channel individually and/or listen to its pre-fader signal. Each channel offers a Signal Present and Peak LED for level control. The channel faders are dust-protected and offer not only excellent crosstalk attenuation but also a practice-optimized control characteristic.
All potentiometers and faders are high-quality components from ALPS, using several customized designs exclusively for DYNACORD.
Stereo MIC/LINE Input Channels
Master Digital USB 2.0 4x4 Audio Interface
Professional Effects
Innovative Solution for Protection and Transportation
Professional and versatile mixer for demanding applications in live sound as well as fixed installation.
Performance without compromise.
The pro audio mixer amongst mixers. Unique. CMS1600
