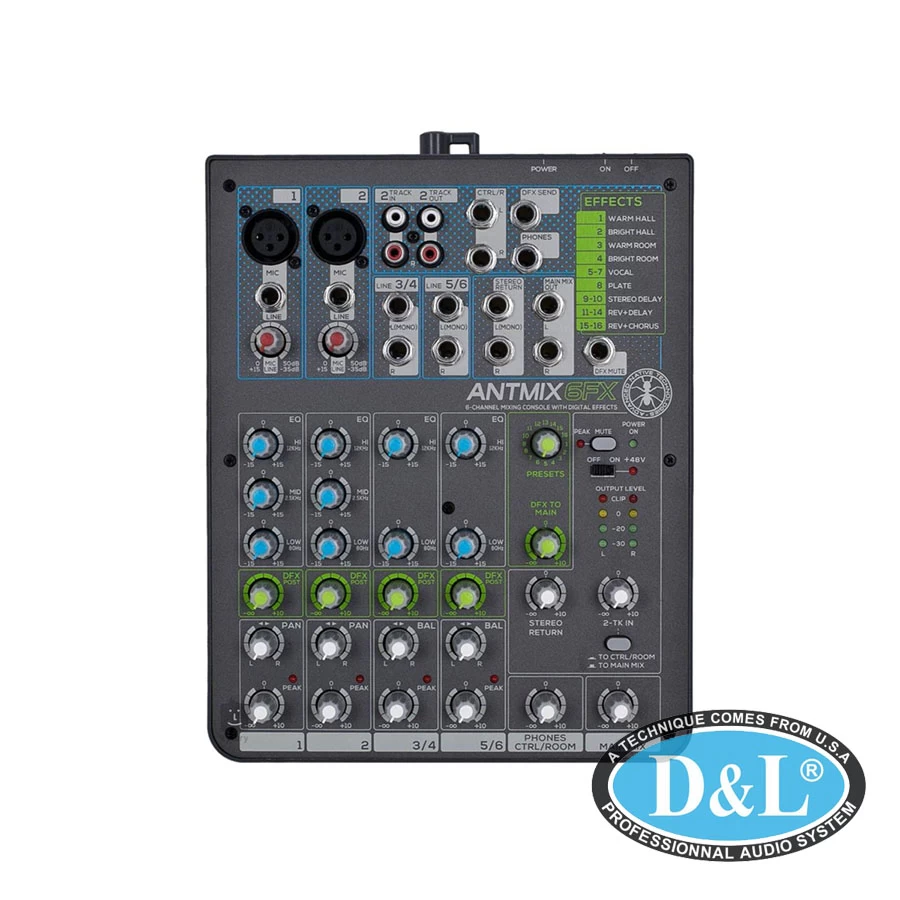

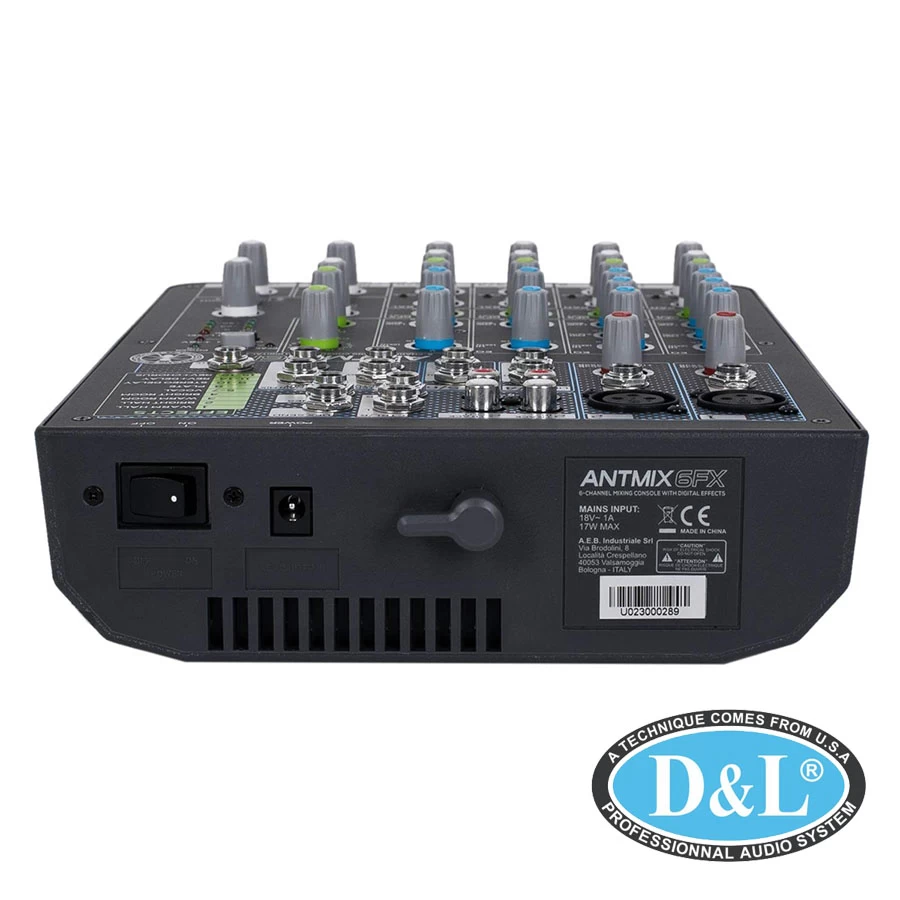

Được thiết kế đặc biệt để sử dụng được ngay và thân thiện với người dùng, mixer ANTMIX 6FX thỏa mãn những ai cần một mixer trình diễn âm thanh xuất sắc, điều khiển linh hoạt và cổng kết nối đa dạng.
Được tối ưu cho mọi màn trình diễn nhạc sống
Tích hợp bộ xử lý EFFECT kỹ thuật số 24-bit để tạo ra những bản mix sáng tạo nhất
Micro preamp cho độ ồn thấp và dải độ động rộng hơn
Thông số kỹ thuật
- MONO mic/line inputs: 2
- Mic mono/stereo line inputs: -
- Stereo line input: 2
- Dimensions (W x H x D): 196 x 68 x 243 mm
- Weight: 1,18 Kg
- MICROPHONE INPUT
- Connector: Balanced XLR
- Impedance: 1.8 kΩ
- Frequency response: 20~20kHz +/-1dB
- Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
- Gain: 0~55dB
- Max input: +15dB (balanced)
- Low-cut: 75Hz 12dB/oct.
- Signal-to-noise ratio: <-100 dBr A weighted
- Phantom powering: +48V
- LINE INPUT
- Connector: Balanced 6,35mm (1/4”) - unbalanced RCA
- Impedance: 10 kΩ
- Frequency response: 20~20kHz +/-1dB
- Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
- Gain: +15dB~-35dB
- Signal-to-noise ratio: <-100 dBr weighted A
- COMMON SPECIFICATION
- Compressor (only for channels featuring this control) Gain: 0 ---> 9 dB | Soglia: 20 dB ---> 5 dB
- Hum & noise < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
- Crosstalk < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
- EQUALIZATION AND 2-TRACK IN
- Mono & mono/stereo channels +/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5 kHz+/- 15 dB @80 Hz
- Stereo channels +/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz
- MICROPHONE INPUT
- Connector: 2 x unbalanced RCA
- Impedance: 10 kΩ
- Frequency response: 20~20kHz +/-1dB
- Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
- Gain: OFF~+15dB
- STEREO RETURNS
- Connector: 2 x balanced 6,35mm (1/4”)
- Impedance: 10 kΩ
- Frequency response: 20~20kHz +/-1dB
- Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
- Gain: OFF~+15dB
- DSP
- A/D - D/A converters 24 bit
- Number of e ects 16 for 6FX – 100 for 8Fx and 12FX
- Controls: Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)
- OUTPUTS
- MAIN MIX connectors 2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
- MAIN MIX max output level +22 dBu XLR balanced (+16 dBu unbalanced)
- MAIN MIX output impedance 120 Ω
- GR1-2 in connectors (12FX only) 2 x TRS balanced 6,35mm (1/4”)
- GR1-2 max output level (12FX only) +22 dBu XLR balanced (+16 dBu unbalanced)
- GR1-2 output impedance (12FX only) 120 Ω
- Headphones connector Unbalanced TRS 6,35mm (1/4”)
- Headphones impedance 30 Ω
- Control room connectors 2 x balanced TRS 6,35mm (1/4”)
- Control room impedance 120 Ω
- 2-TK connectors 2 x unbalanced RCA
- 2-TK impedance 1 kΩ
