Thông số kỹ thuật
Main Features
| MIDI Control | Full assignable MIDI controls |
|---|
| ProDJ Link | Yes |
|---|
| P-Lock Fader Caps | Yes |
|---|
| Auto Standby | Yes |
|---|
| DVS Control | rekordbox (Core plan or above) |
|---|
| What's in the Box | - DJM-TOUR1
- Power cord
- USB cable
- Display shade
- Operating Instructions (Quick Start Guide)
|
|---|
Specifications

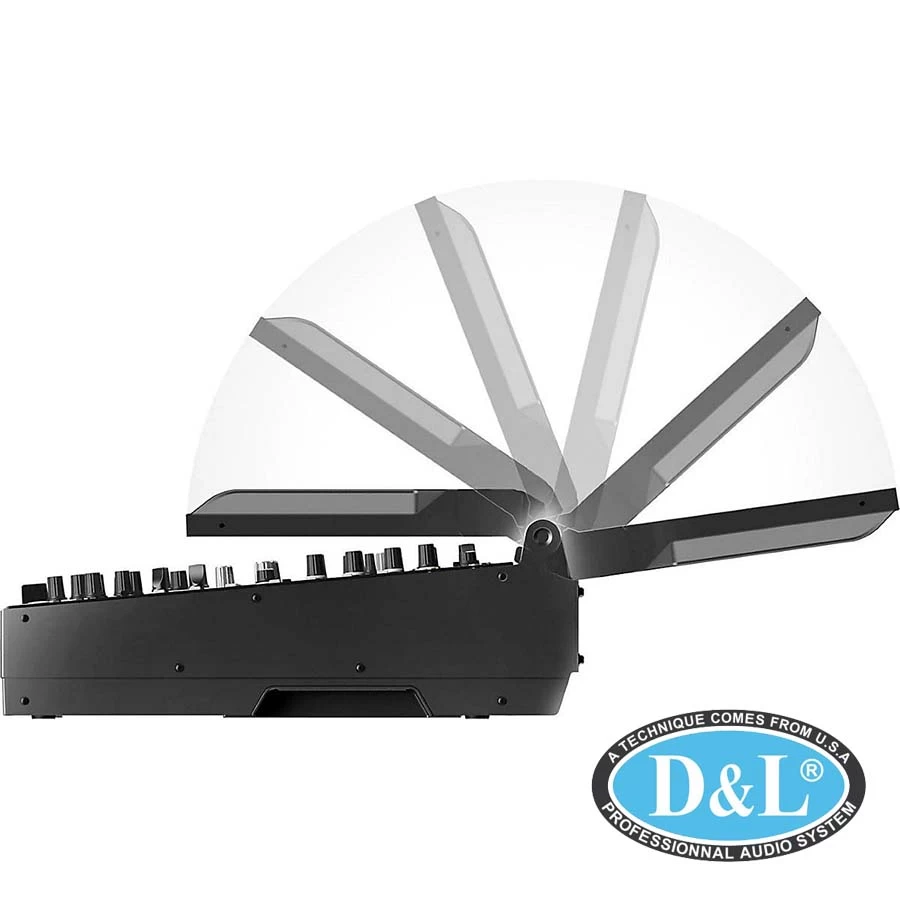

| Dimensions (with fold-out display) | - When upper display part is closed (W x D x H): 445.2 x 451.6 x 179.1 mm
- When upper display part is upright at 90 degrees (W x D x H): 445.2 x 457.8 x 418 mm
- When upper display part is fully open (W x D x H): 445.2 x 694.5 x 203.1 mm
|
|---|
| Sampling Rate | 96 kHz |
|---|
| Weight | 16.1 kg |
|---|
| Frequency Range | 20 - 40000 Hz |
|---|
| A/D Converter | 24 bit |
|---|
| D/A Converter | 32 bit |
|---|
| S/N Ratio Line | 105 dB |
|---|
| S/N Ratio Phono | 88 dB |
|---|
| S/N Ratio Mic | 79 dB |
|---|
| Distortion | < 0.005 % (LINE) |
|---|
Channels
| EQ/ISO | 3 band |
|---|
| EQ/ISO Range | Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB |
|---|
Performance Control
| Channels | 4 |
|---|
| Sound Color FX | - Crush
- Dub Echo
- Filter
- Noise
- Sweep
- Space
|
|---|
| Beat FX | - Delay
- Echo
- Filter
- Helix
- Phaser
- Ping Pong
- Pitch
- Slip Roll
- Spiral
- Reverb
- Roll
- Trans
- Vinyl Brake
|
|---|
| FX Frequency | Yes |
|---|
| X-PAD | Yes |
|---|
| rekordbox Quantize | Yes |
|---|
Crossfader
| Crossfader Type | Magvel Fader |
|---|
| Curve Assignable | Yes |
|---|
| Fader Curve | 3 |
|---|
Mic
| Mic Connection | - XLR / 1/4-inch Combo Jack
- 1/4-inch TRS Jack
|
|---|
| Talkover | 3 Position Switch |
|---|
| Talkover Attenuator | Yes |
|---|

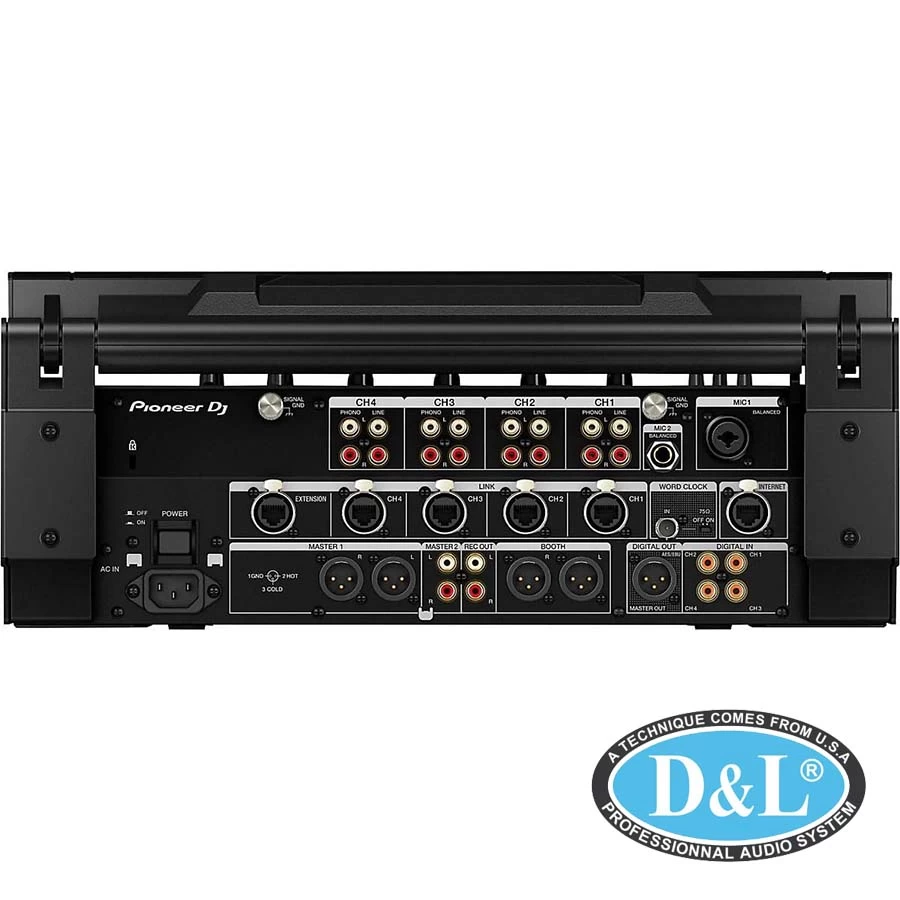

Terminals
| Inputs | - 4 DIGITAL (Coaxial)
- 4 CD/LINE (RCA)
- 4 PHONO (RCA)
- 1 AUX (XLR, 1/4 inch TRS Jack)
- 2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack)
- 1 Word Clock (BNC)
|
|---|
| Send/Return | - 1 SEND (1/4-inch TS jack)
- 1 RETURN (1/4-inch TS jack)
|
|---|
| LAN | 6 |
|---|
| Outputs | - 2 MASTER (XLR, RCA)
- 1 BOOTH (XLR)
- 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 HEADPHONE MONITOR (1/4 inch Jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (AES/EBU)
|
|---|
| USB | - 2 USB B ports
- 1 USB A port
|
|---|
Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
