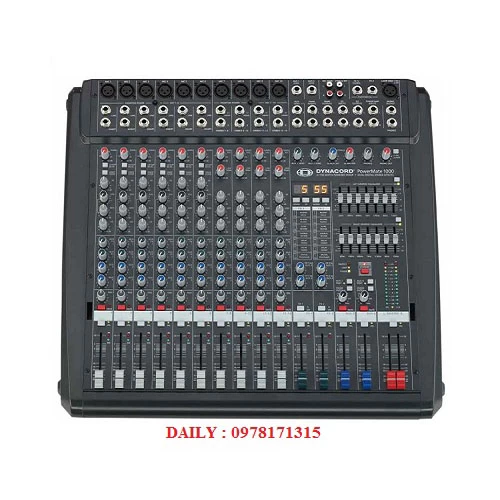

MIC/LINE Input Channels The XLR microphone input is equipped with an extremely high quality, ultra-low noise, discrete preamp. The +48V phantom power for condenser microphones can be switched in groups of six. The Line Input and Channel Insert are implemented as jack sockets. The Gain can be controlled in the range 0-60 dB. The switchable Lo Cut filter (80Hz, 18dB) serves to eliminate low-frequency noise. A very typical DYNACORD feature is the asymmetrical Voicing Filter by means of which, if desired, the voice can be powerfully emphasized in the mix. Optimized for ease-of-use, the 3-band semi-parametric equalizer makes it possible even for unpracticed users to perform the requisite corrections swiftly and intuitively. With its extended buss structure, the PowerMate-3 offers very flexible configuration options. In all, 6 AUX busses are available: 2 (FX) are assiged to the two effects sends; 2 (AUX) can be configured either as monitor or effects sends by means of a switch in the Main section; 2 (MON) are designed as monitor sends, each being equipped with a sweepable anti-feedback filter in the Master section. MUTE and PFL switches, each with its own LED, make it possible to mute each input channel individually and/or listen to its pre-fader signal. Each channel offers a Signal Present and Peak LED for level control. The channel faders are dust-protected and offer not only excellent crosstalk attenuation but also a practice-optimized control characteristic. All potentiometers and faders are high-quality components from ALPS. Stereo MIC/LINE Input Channels The stereo input channels are equipped in much the same way, but optimized, naturally, to carry stereo signals Two of the four stereo inputs of each model are additionally equipped with cinch (RCA) sockets switched in parallel for CD or MP3 players. The two other stereo inputs receive in addition the four channels of the digital audio interface USB 1-2 and USB 3-4 Separate Gain controls are provided for the Stereo Line and Mic inputs to permit them to be used in parallel if desired. Three-band tone controls are provided and a Balance control replaces the PAN control found in the mono channel strips.
