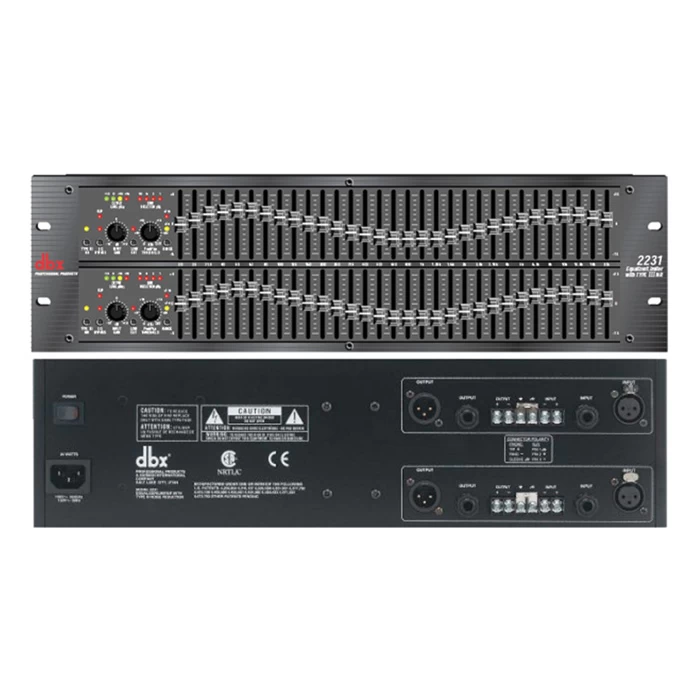

Equalizer DBX 2231

Equalizer DBX 2231

Equalizer DBX 2231 là thiết bị âm thanh ánh sánh sân khấu không thể thiếu trong bất kì một buổi hòa nhạc hay hội trường chuyên nghiệp nào, nó giúp tín hiệu âm thanh được trong trẻo và rõ ràng hơn. DBX 2231 có phạm vị hoạt động với độ nhạy từ 0dBu đến + 24dBu.

Tính năng nổi bật:

• Revolutionary instant encode/decode Type III® Noise Reduction in-circuit at the push of a button. Increases S/N ratio by up to 20dB
• Patent-pending PeakPlus™ Limiter threshold range from 0dBu to +24dBu (off) can transparently tame the wildest hits or the subtlest nuances of any signal
• Four segment LED bargraph for BOTH Gain Reduction AND Output Level
• Status LEDs offer visual feedback for all settings on the front panel.

Thông số kỹ thuật:


Input Connectors	1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Input Type	Electronically balanced/unbalanced, RF filtered
Input Impedance	Balanced 40 kOhm, unbalanced 20 kOhm
Max Input	>+21dBu balanced or unbalanced
CMRR	>40dB, typically >55dB at 1kHz
Output Connectors	1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Output Type	Impedance-balanced/unbalanced, RF filtered
Output Impedance	Balanced 200 ohm, unbalanced 100 ohm
Max Output	>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth	20Hz to 20kHz, +/-0.5dB
Frequency Response	<10Hz to >50kHz, +0.5/-3dB
Signal-to-Noise (NR In: +/-6 and +/-15dB ranges)	>102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
Dynamic Range (NR In: +/-6dB and +/-15dB ranges)	>120dB, unweighted
Signal-to-Noise (NR Out: +/-6dB range)	>94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth
Dynamic Range (NR Out: +/-6dB range)	>112dB, unweighted
Signal-to-Noise (NR Out: +/-15dB range)	>90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
Dynamic Range (NR Out: +/-15dB range)	>108dB, unweighted
THD+Noise	<0.04%, 0.02% typical at +4dBu, 1kHz
Interchannel Crosstalk	<-80dB, 20Hz to 20kHz
Noise Reduction	Up to 20dB of dynamic broadband noise reduction
NR Switch	Activates dbx Type III Noise Reduction
Bypass Switch	Bypasses the graphic equalizer section in the signal path
Low cut Switch	(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
Range Switch	(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
I/O Meter	4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
Gain Reduction Meter	4-LED bar graph (all Red) at 0, 3, 6, and 10dB
Indicators	NR Active (Yellow); EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)
Operating Voltage	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption	28W
Power Connector	IEC receptacle
Dimensions	5.25" H X 19" W X 7.9" D (13.335cm x 48.3cm x 20.1cm)



Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
