Mã sản phẩm : BLX1288/P31

(0)

icon
Freeship cho đơn hàng 1.000.000đ
icon
Kiểm tra hàng trước khi thanh toán
icon
Miễn phí đổi trả hàng trong 7 ngày

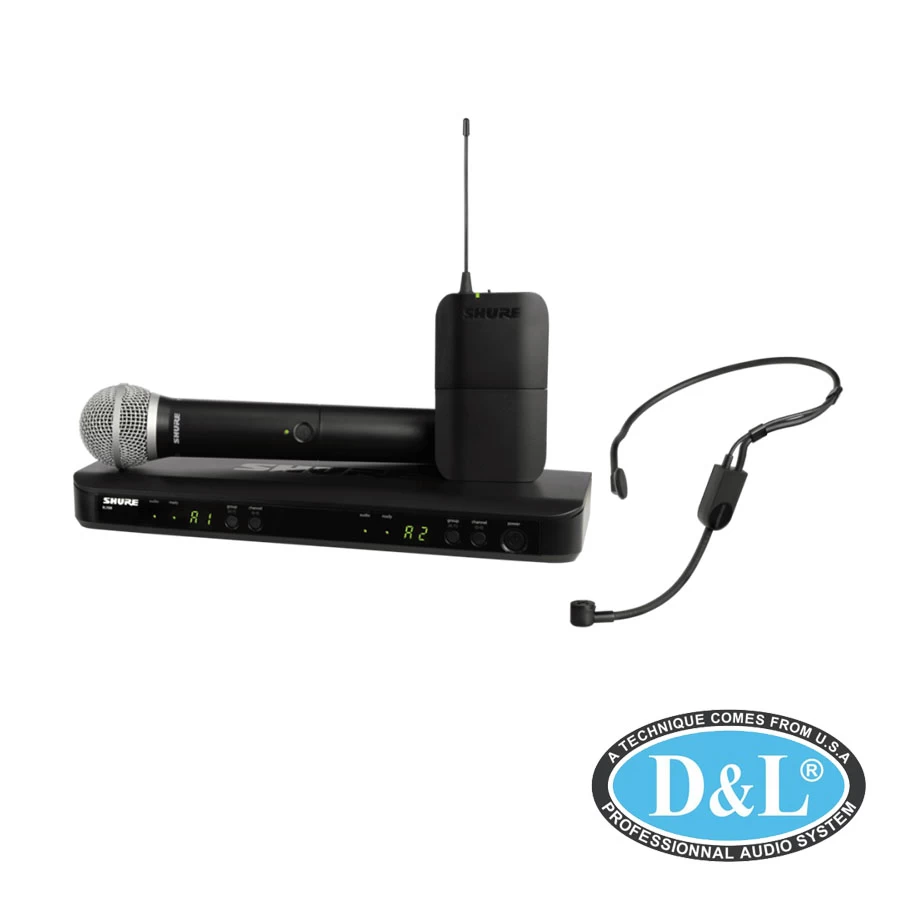

Wireless Combo System with PG58 Handheld and PGA31 Headset
Có thể bạn quan tâm
Xem tất cả

The Wireless Combo System with PG58 and PGA31 combines simple setup and an intuitive interface for performance you can trust in. The comfortable headset offers maximum freedom of movement when performing or presenting. The PG58 is the most accessible wireless Shure vocal microphone for elevating sound quality.


The Shure BLX1288/P31 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.



The Shure BLX1288/P31 also includes a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.

PG58 Mic Capsule Optimized for Vocals and Speech

The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech.

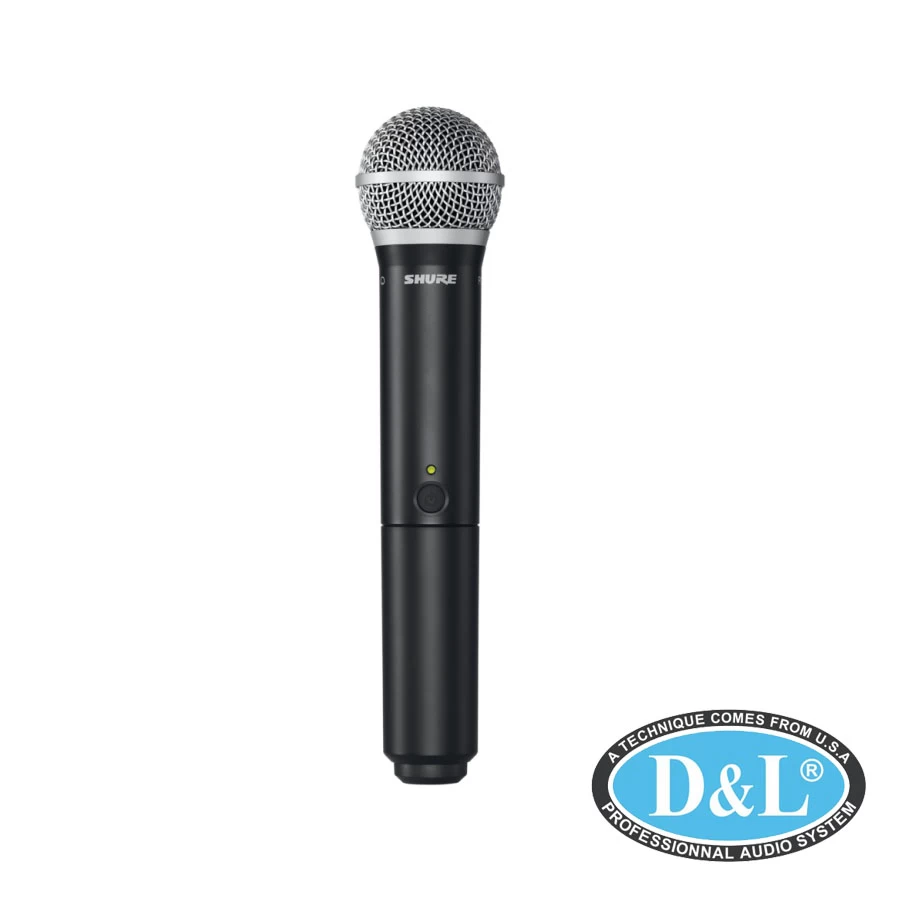

Lightweight Handheld Transmitter

The durable BLX2 handheld transmitter offers a lightweight, ergonomic design, and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

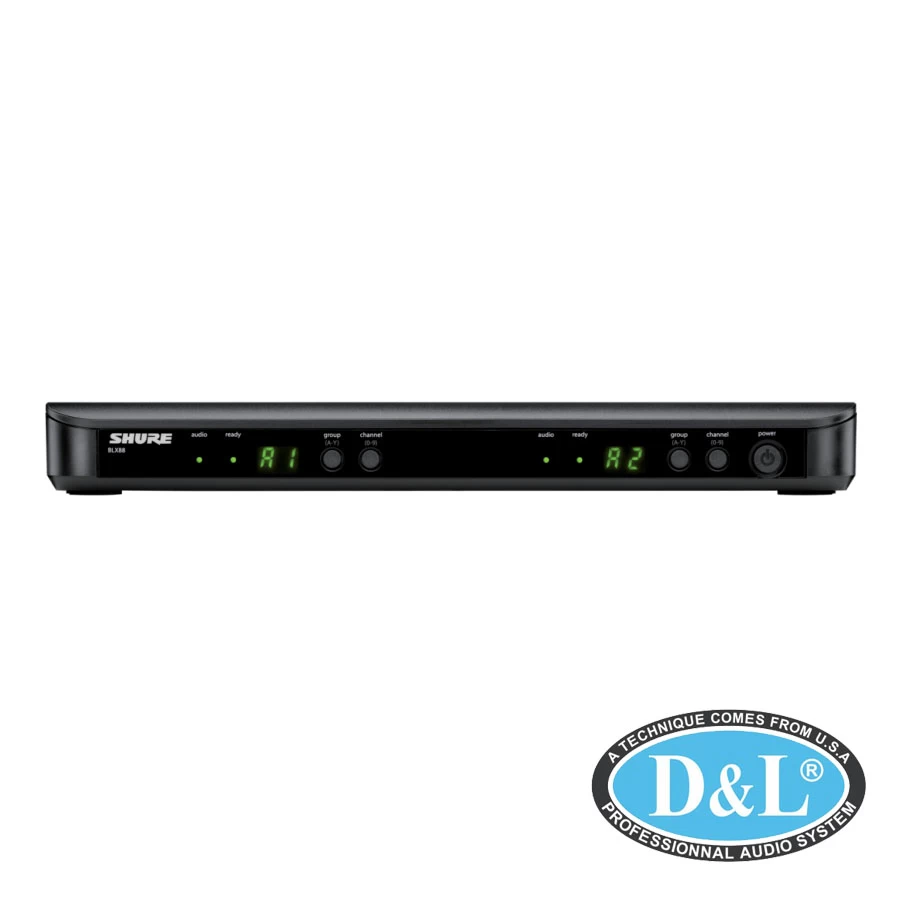

Easy-to-Use Tabletop Receiver for Quality Audio

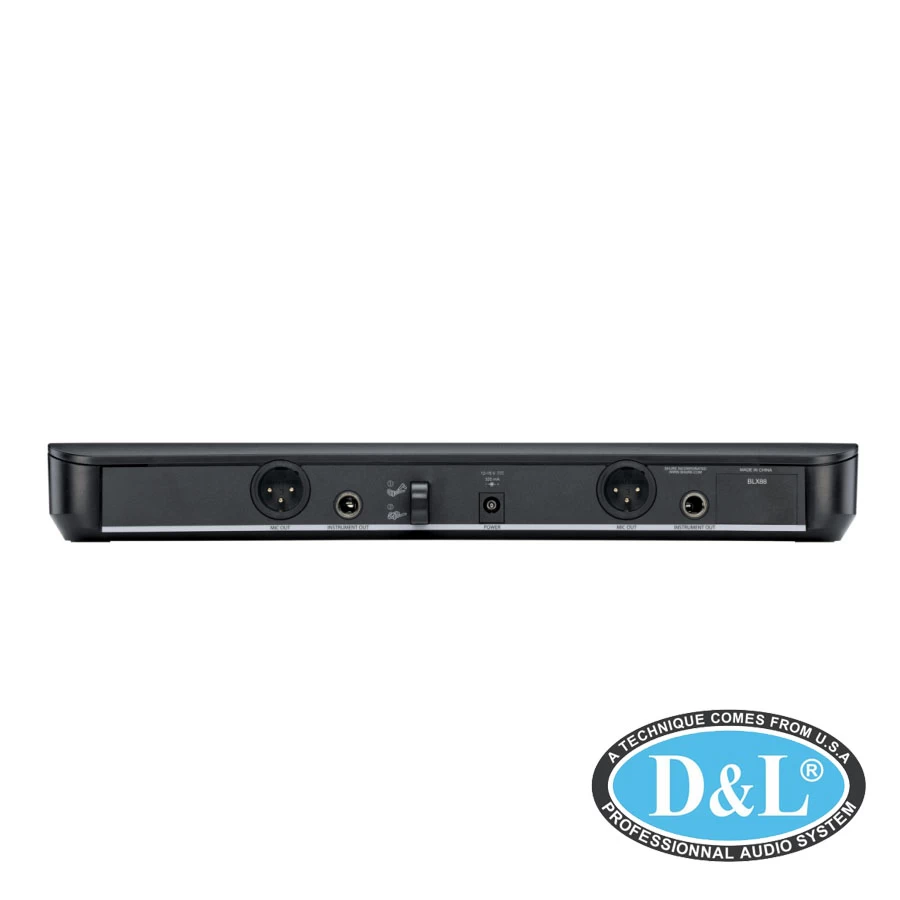

The BLX4 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.

Thông số kỹ thuật

Receiver
Receiver TypeTabletop
Antenna2 x Internal, Fixed
Number of Audio Channels2
Audio I/O2 x XLR 3-Pin Male Balanced Output
2 x 1/4" TS Female Unbalanced Output
Audio Output LevelXLR Outputs:
-27 dBV (Mic Level)
1/4" Outputs:
-13 dBV (Instrument Level)
Frequency Response50 Hz to 15 kHz (Dependent on Mic)
ImpedanceXLR Outputs:
200 Ohms (Balanced)
1/4" Outputs:
50 Ohms (Unbalanced)
Approximate RF Sensitivity-105 dBm
Power RequirementsAC/DC Power Adapter
AC/DC Power Adapter12 to 15 VDC at 160 mA, Center-Positive (Included)
Display & Indicators1 x Multi-Segment LED (Channel, Group)
2 x LED (AF Level, Sync)
HousingABS
Dimensions15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
Weight15.1 oz / 429 g

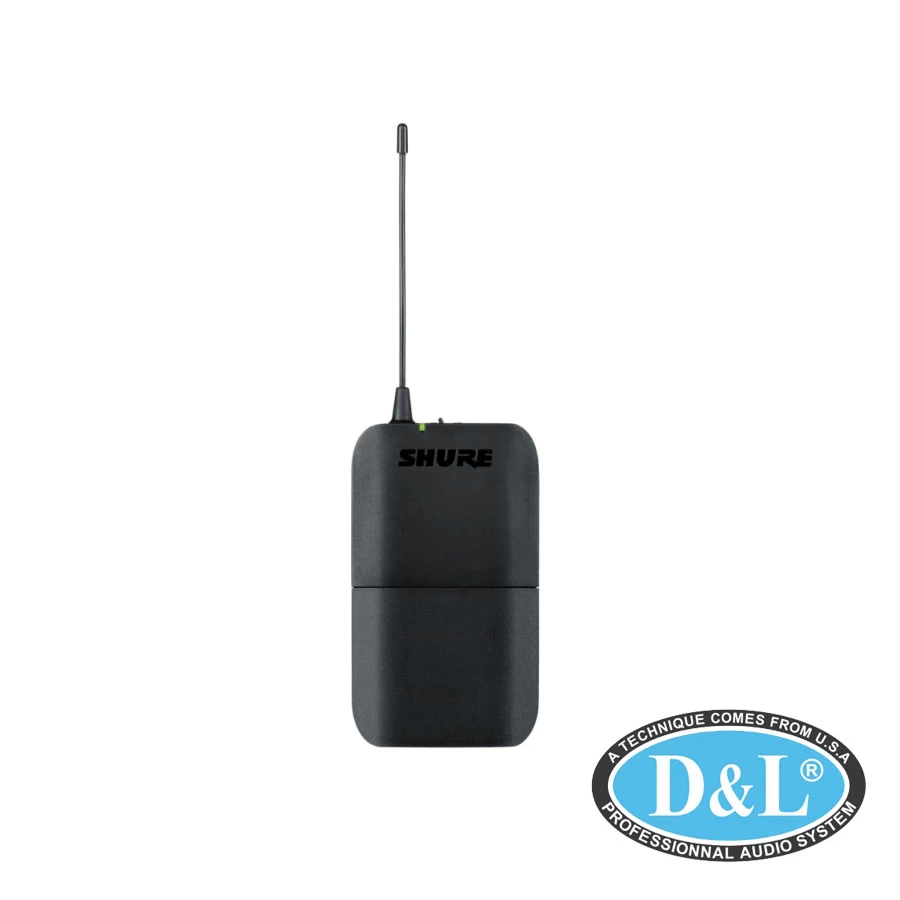

Transmitter
Transmitter TypeBodypack
RF Output Power10 mW
Audio I/O1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
MutingOff/On Switch
Auto-Level ControlNo
Gain Range-16 to +10 dB
Sync MethodManual
Antenna1 x Flexible Whip, Fixed (Beltpack)
Power RequirementsBattery
Battery Type2 x AA (Included)
Approx. Battery Life14 Hours (Alkaline)
Display & Indicators1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
HousingABS
Dimensions2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight2.6 oz / 75 g (without Batteries)
Microphone
Microphone TypeHeadset
Sound FieldMono
CapsuleElectret Condenser
Polar PatternCardioid
Frequency Range60 Hz to 20 kHz
SNR66 dB
Equivalent Noise Level28 dB
Maximum SPL145 dB SPL
Dynamic Range117 dB
Output Connectors1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length4.27' / 1.3 m
Operating Voltage5 V
Weight1.59 oz / 45 g
Transmitter 2
Transmitter TypeHandheld
RF Output Power10 mW
Audio I/ONone
MutingOff/On Switch
Auto-Level ControlNo
Gain Range-20 to -10 dB
Sync MethodManual
Antenna1 x Internal (Handheld)
Power RequirementsBattery
Battery Type2 x AA (Included)
Approx. Battery Life14 Hours (Alkaline)
Display & Indicators1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
HousingABS
Dimensions2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight7.7 oz / 218 g (without Batteries)
Microphone 2
Microphone TypeHandheld Capsule
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Frequency Range50 Hz to 16 kHz
Packaging Info
Package Weight4.585 lb
Box Dimensions (LxWxH)19.5 x 16.9 x 3.5"
Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies123
Included Transmitters1 x Bodypack
1 x Handheld
DiversityAntenna Diversity
RF Frequency BandJ11:
596 to 608 MHz
614 to 616 MHz
RF Bandwidth14 MHz
RF Channel ScanningAuto-Scan
Max Operating Range300' / 91.4 m (Line of Sight)
Max Transmitters per Band12
Dynamic Range100 dBA
