Wireless Rack-mount Vocal System with SM58
Có thể bạn quan tâm
Xem tất cả

The BLX24R/SM58 System with SM58, an industry-standard, highly versatile cardioid dynamic vocal microphone, tailored to deliver warm and clear vocal reproduction combines simple setup and an intuitive interface for performance you can trust.

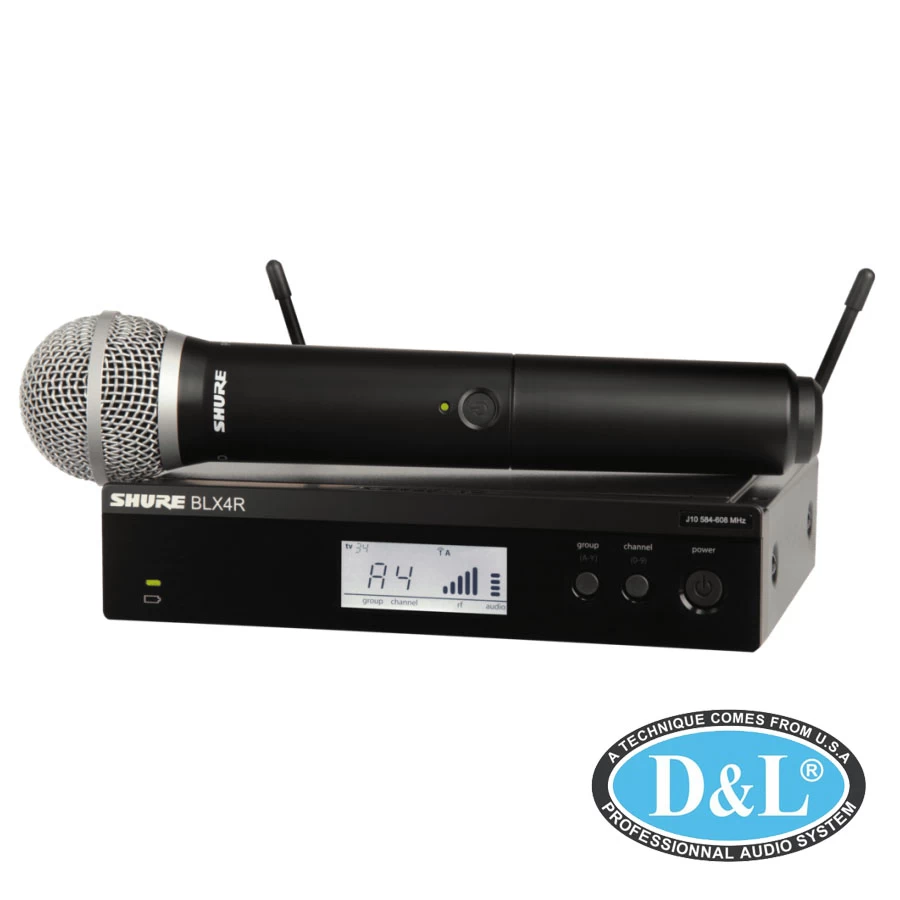

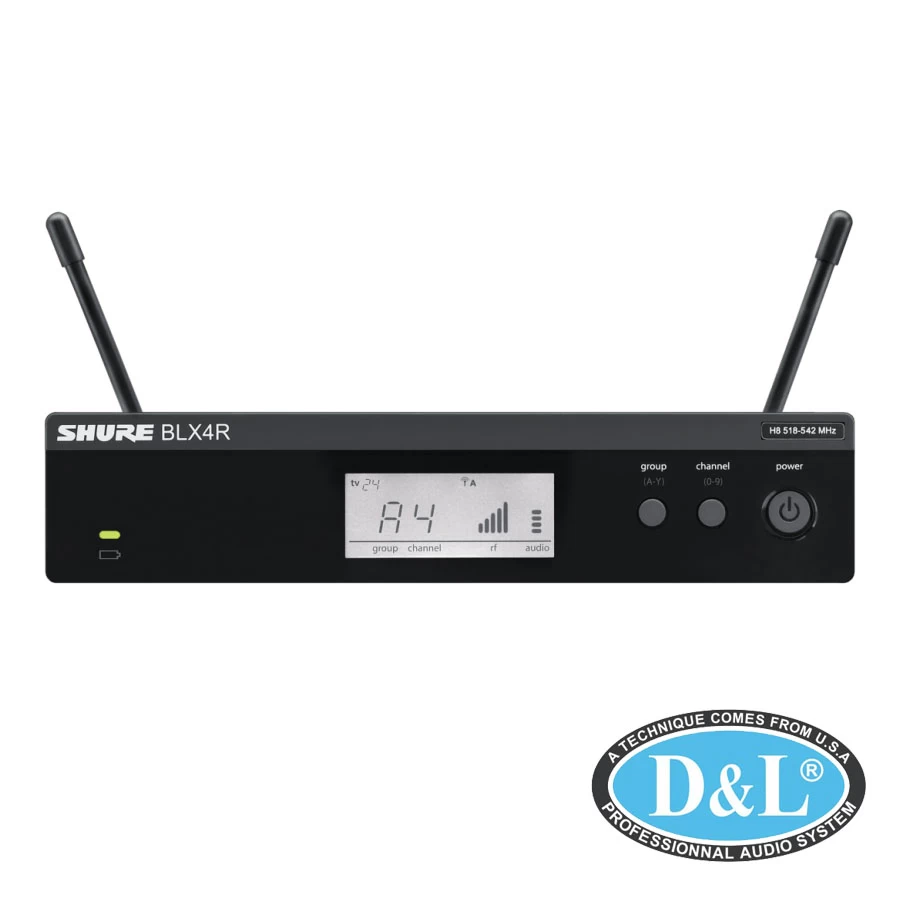

The Shure BLX24R/SM58 brings performers and presenters a cost-effective wireless handheld microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit—ideal for sound-reinforcement applications in small venues, wedding halls, and houses of worship.

The BLX24R/SM58 also includes a handheld transmitter equipped with the legendary SM58 cardioid dynamic capsule, an industry standard for vocalists and announcers. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

Classic SM58 Mic Capsule Optimized for Vocals and Speech

The integrated SM58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. Its brightened midrange and bass roll-off deliver that sought-after warm and clear vocal reproduction. The built-in spherical wind and pop filter reduces plosives for clean and intelligible speech.

Lightweight Handheld Transmitter

The durable BLX2 handheld transmitter offers a lightweight, ergonomic design and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

A Versatile System to Meet Your Needs

Shure offers the BLX2 handheld transmitter with a variety of mic capsules to choose from.

The BLX1 bodypack transmitter accommodates a wide range of hands-free microphone options including lavalier, headset, instrument, and earset models to adapt your BLX system as your needs evolve:

  • The WL185 lavalier mic and discrete MX153 sub-miniature earset mic provide exceptional clarity in spoken word applications.
  • The PGA31 is a comfortable, durable headset microphone for active performance.
  • Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
  • The WA302 guitar cable lets you connect to a guitar or bass.
  • s 1/4" and XLR outputs for connectivity to PA systems and mixing boards.

Thông số kỹ thuật

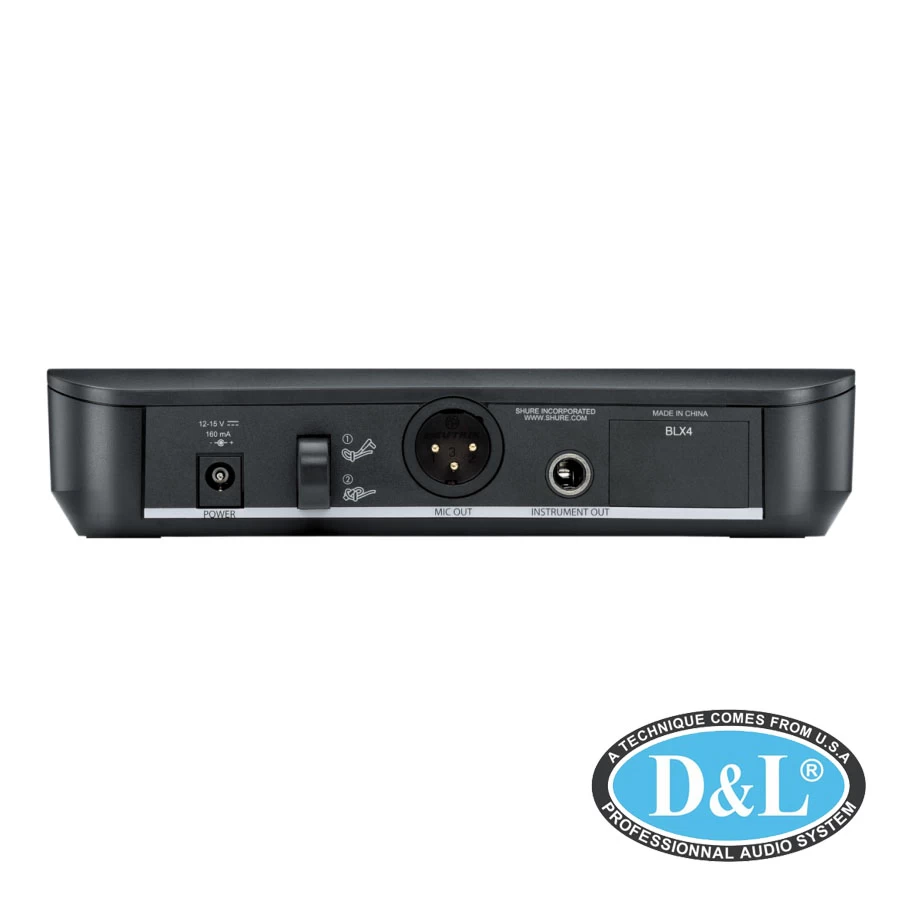

Receiver
Receiver TypeTabletop

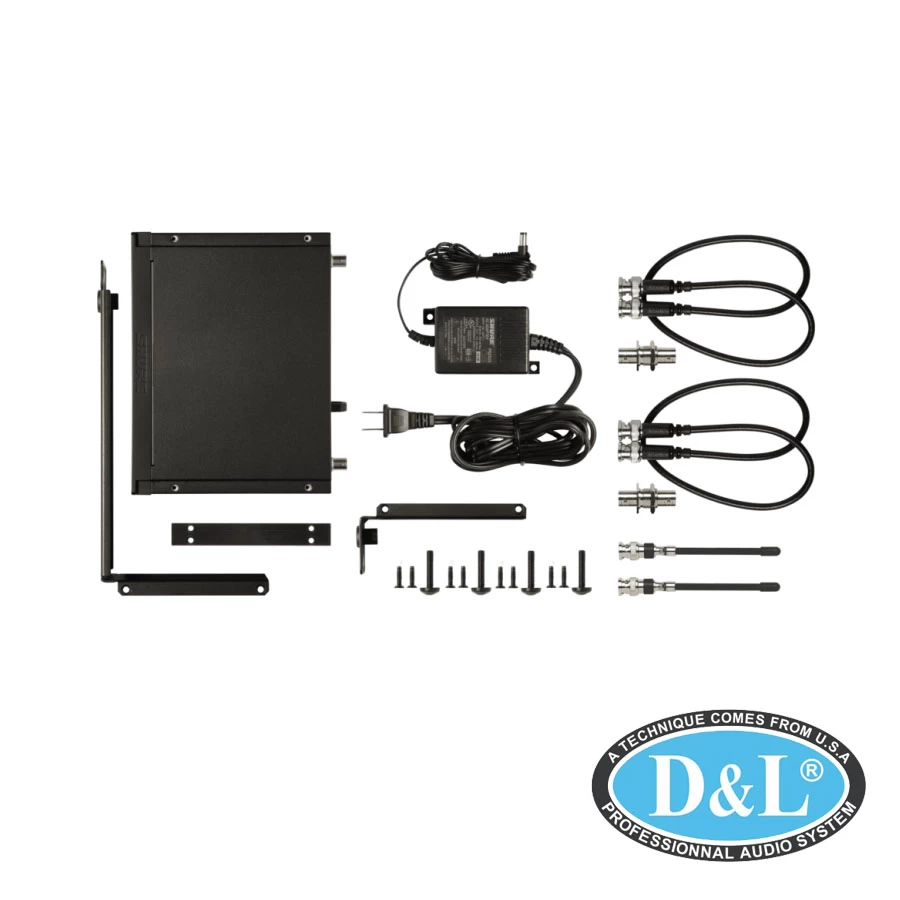

Mounting OptionsRackmount (with Included Hardware)
Rackmount Size1 RU (1/2 Rack)

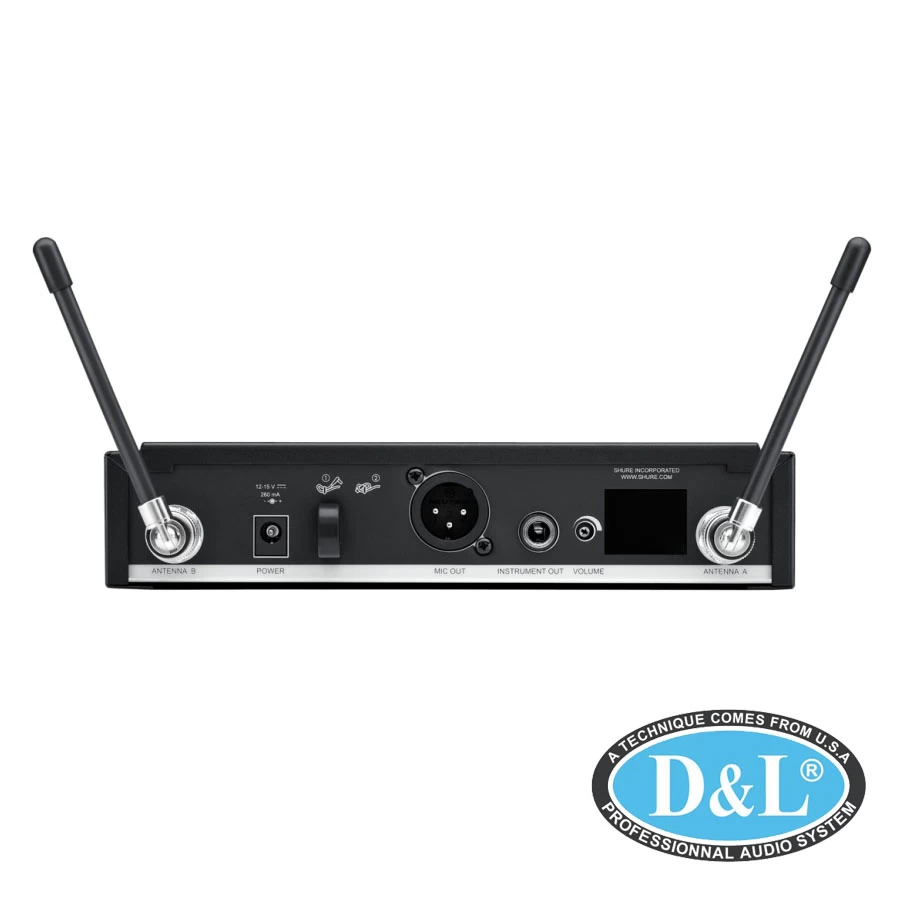

Antenna2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels1
Audio I/O1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output LevelXLR Output:
-20.5 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
Frequency Response50 Hz to 15 kHz (Dependent on Mic)
ImpedanceXLR Output:
200 Ohms
1/4" Output:
50 Ohms
Adjacent Channel Isolation>50 dB
Power RequirementsAC/DC Power Adapter
AC/DC Power Adapter12 to 15 VDC at 260 mA, Center-Positive (Included)
Display & Indicators1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
HousingSteel
Operating Temperature0 to 135°F / -17 to 57°C
Dimensions7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight35.2 oz / 998 g
Transmitter
Transmitter TypeHandheld
RF Output Power10 mW
Audio I/ONone
MutingOff/On Switch
Auto-Level ControlNo
Gain Range-20 to -10 dB
Sync MethodManual
Antenna1 x Internal (Handheld)
Power RequirementsBattery
Battery Type2 x AA (Included)
Approx. Battery Life14 Hours (Alkaline)
Display & Indicators1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
HousingABS
Dimensions2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight7.7 oz / 218 g (without Batteries)
Microphone
Microphone TypeHandheld Capsule
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Frequency Range50 Hz to 15 kHz
Sensitivity-54.5 dBV/Pa
Packaging Info
Package Weight6.85 lb
Box Dimensions (LxWxH)18.2 x 14.9 x 3.8"
Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies123
Included Transmitters1 x Handheld
DiversityAntenna Diversity
RF Frequency BandH9:
512 to 542 MHz
RF Bandwidth24 MHz
RF Channel ScanningAuto-Scan
Max Operating Range300' / 91.4 m (Line of Sight)
Max Transmitters per Band12
Dynamic Range100 dBA
