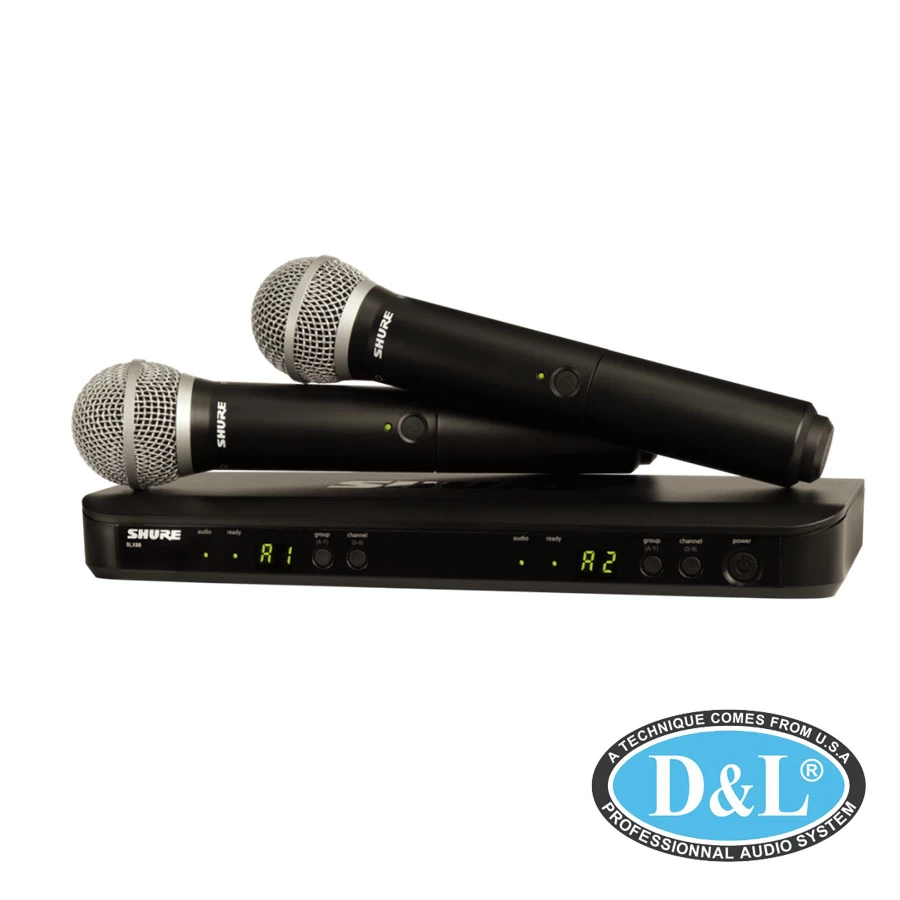

Wireless Dual Vocal System with two PG58 Handheld Transmitters
Có thể bạn quan tâm
Xem tất cả

The most accessible wireless Shure vocal microphone for elevating sound quality combined with simple setup and an intuitive interface for performance you can trust.

The Shure BLX288/PG58 brings performers and presenters a cost-effective wireless handheld microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the compact and lightweight BLX4 single-channel tabletop receiver with internal antennas, ideal for portable use.

The Shure BLX288/PG58 also includes a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.

PG58 Mic Capsule Optimized for Vocals and Speech

The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech.

Lightweight Handheld Transmitter

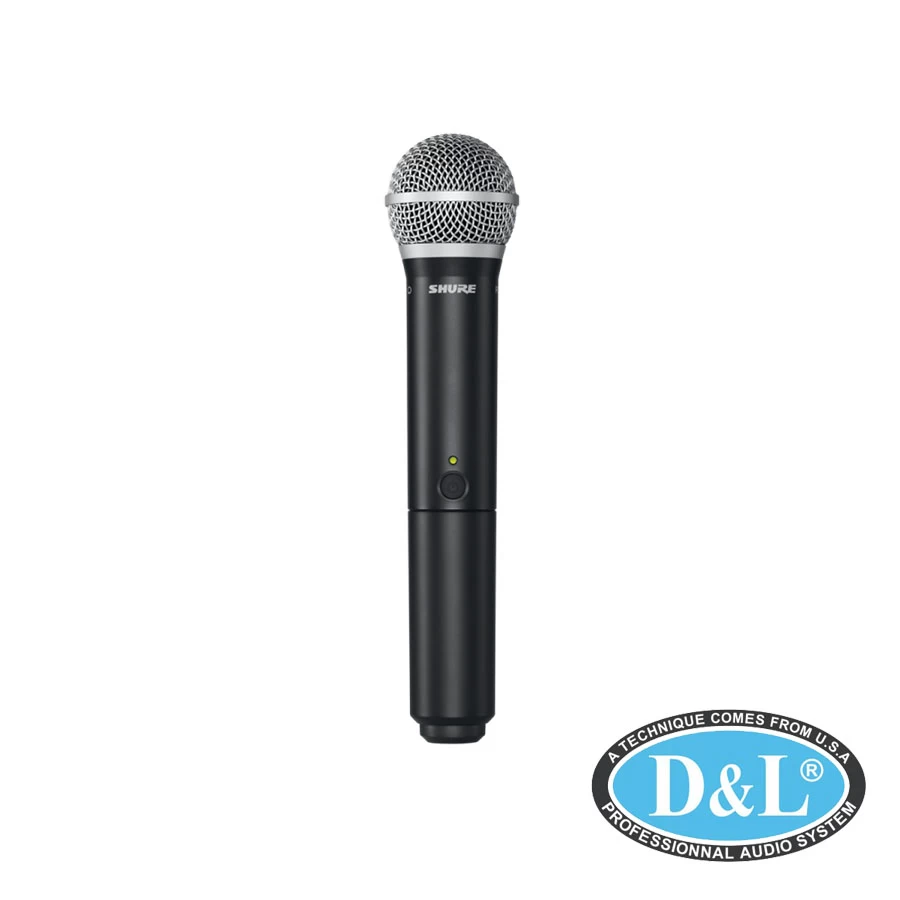

The durable BLX2 handheld transmitter offers a lightweight, ergonomic design, and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

Easy-to-Use Tabletop Receiver for Quality Audio

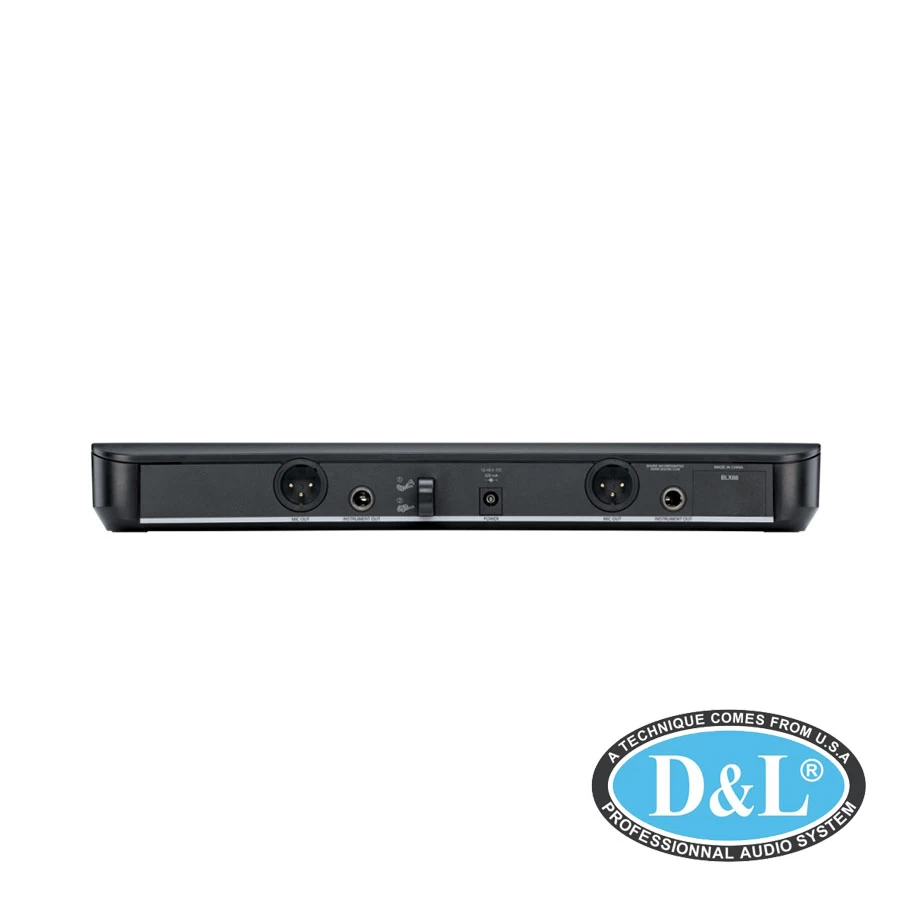

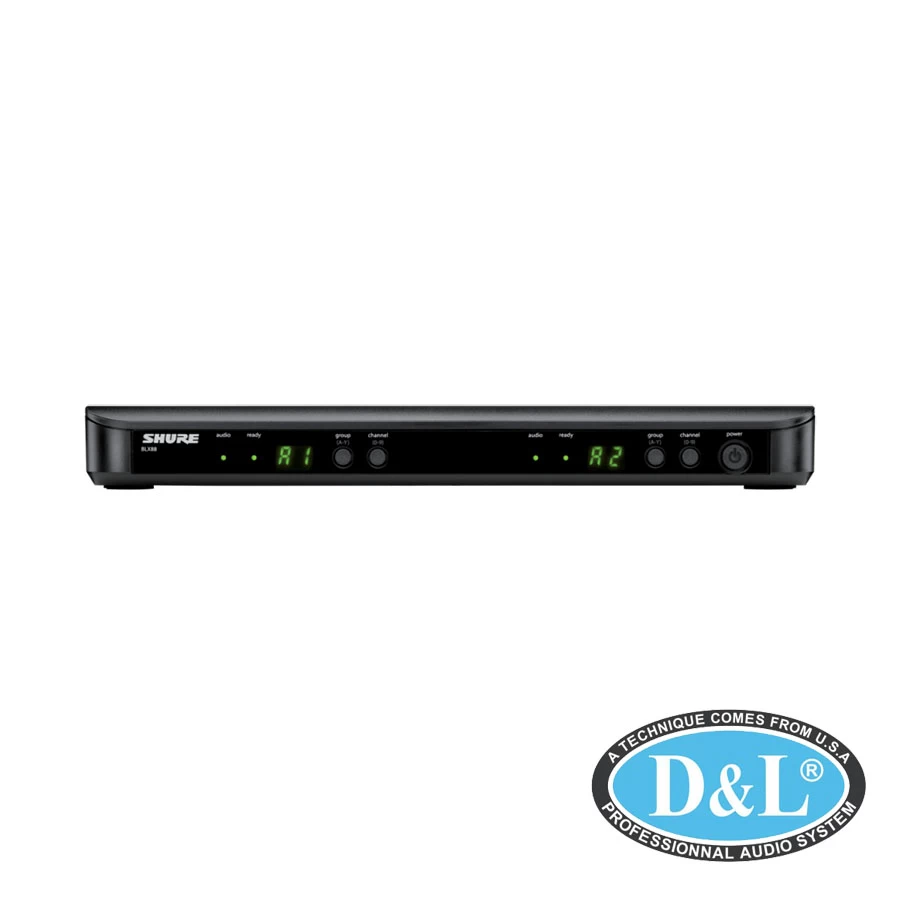

The BLX4 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.

Thông số kỹ thuật

Receiver
Receiver TypeTabletop
Mounting OptionsTabletop
Antenna2 x Internal
Number of Audio Channels2
Audio I/O2 x XLR 3-Pin Male Balanced Output
2 x 1/4" TS Female Unbalanced Output
Audio Output LevelXLR Outputs:
-27 dBV (Mic Level)
1/4" Outputs:
-13 dBV (Instrument Level)
Frequency Response50 Hz to 15 kHz (Dependent on Mic)
ImpedanceXLR Outputs:
200 Ohms
1/4" Outputs:
50 Ohms
Power RequirementsAC/DC Power Adapter
AC/DC Power Adapter12 to 15 VDC at 160 mA, Center-Positive (Included)
AC Input Power100 to 240 VAC, 50 / 60 Hz
Display & Indicators2 x Multi-Segment LED (Channel, Group)
4 x LED (AF Level, Sync)
HousingABS
Operating Temperature0 to 135°F / -17 to 57°C
Dimensions15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
Weight15.1 oz / 429 g
Transmitter
Transmitter TypeHandheld
RF Output Power10 mW
Audio I/ONone
MutingOff/On Switch
Auto-Level ControlNo
Gain Range-20 to -10 dB
Sync MethodManual
Antenna1 x Internal (Handheld)
Power RequirementsBattery
Battery Type2 x AA (Included)
Approx. Battery Life14 Hours (Alkaline)
Display & Indicators1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
HousingABS
Dimensions2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight7.7 oz / 218 g (without Batteries)
Microphone
Microphone TypeHandheld Capsule
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Frequency Range50 Hz to 16 kHz
Sensitivity-55 dBV/Pa at 1 kHz
Packaging Info
Package Weight5.15 lb
Box Dimensions (LxWxH)19.5 x 16.3 x 3.5"
Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies123
Included Transmitters2 x Handheld
DiversityAntenna Diversity
RF Frequency BandH10:
542 to 572 MHz
RF Bandwidth24 MHz
RF Channel ScanningAuto-Scan
Max Operating Range300' / 91.4 m (Line of Sight)
Max Transmitters per Band12
Dynamic Range100 dBA
