PG58 and CVL microphone dual systems for spoken word applications with analogue wireless transmission

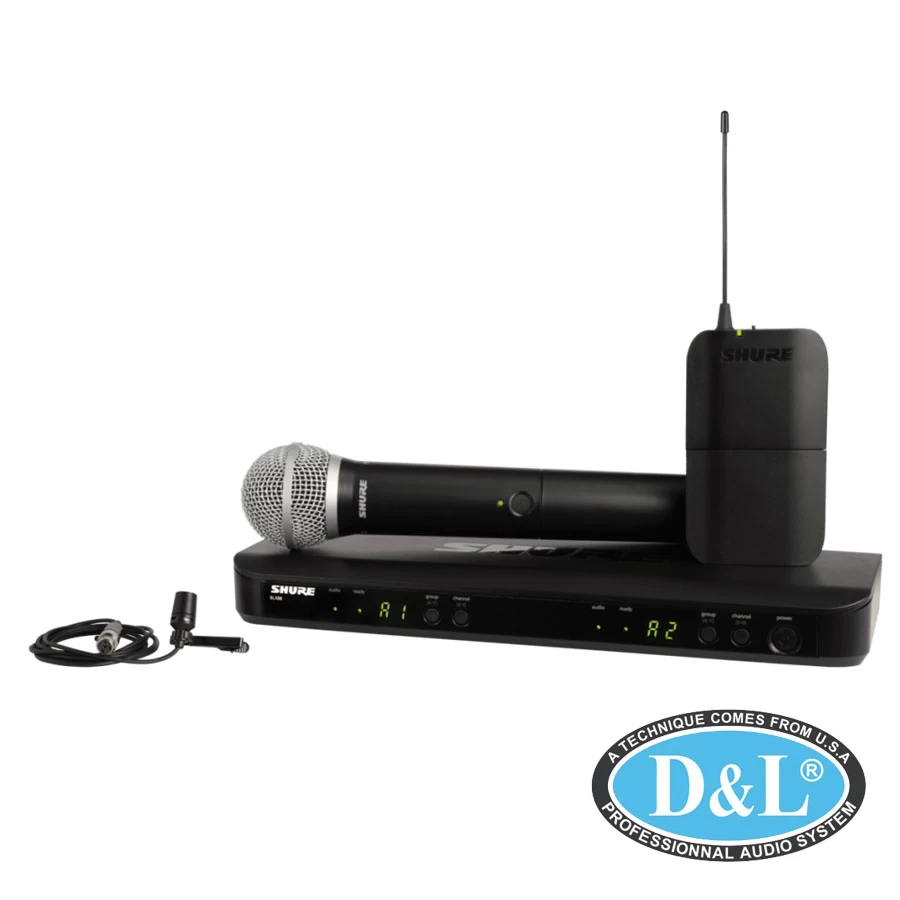

The Shure BLX1288/CVL Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.
The Shure BLX1288/CVL also includes a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.
PG58 Mic Capsule Optimized for Vocals and Speech
The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech.

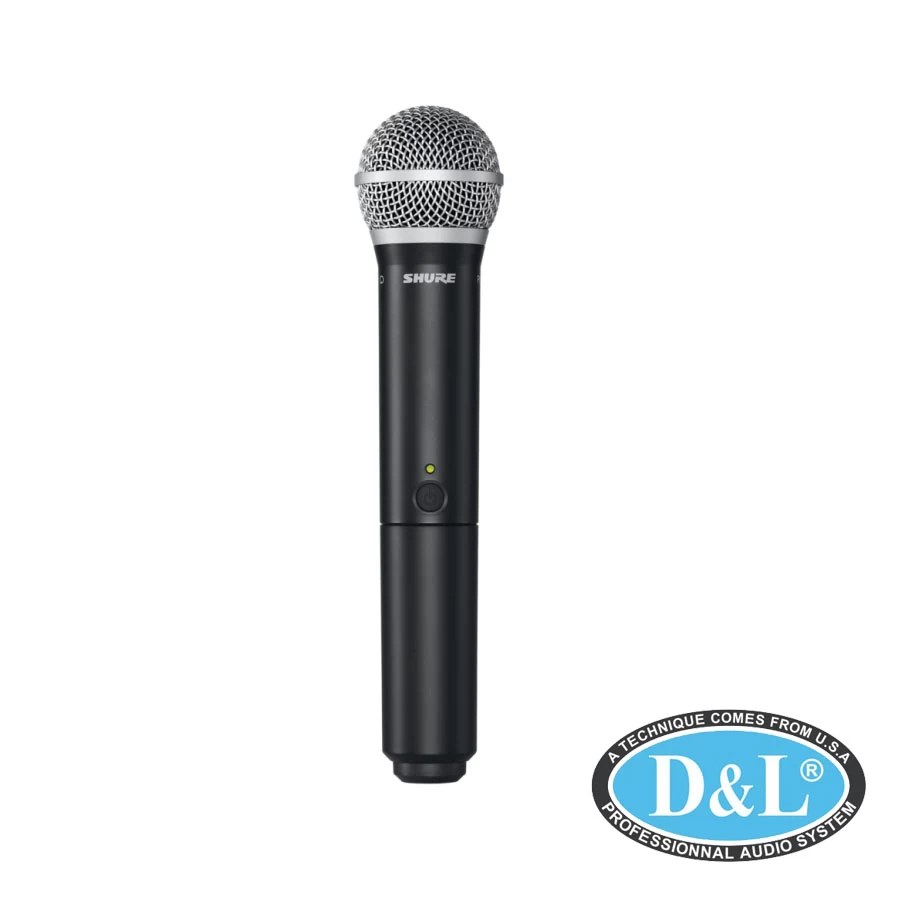

Lightweight Handheld Transmitter
The durable BLX2 handheld transmitter offers a lightweight, ergonomic design, and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

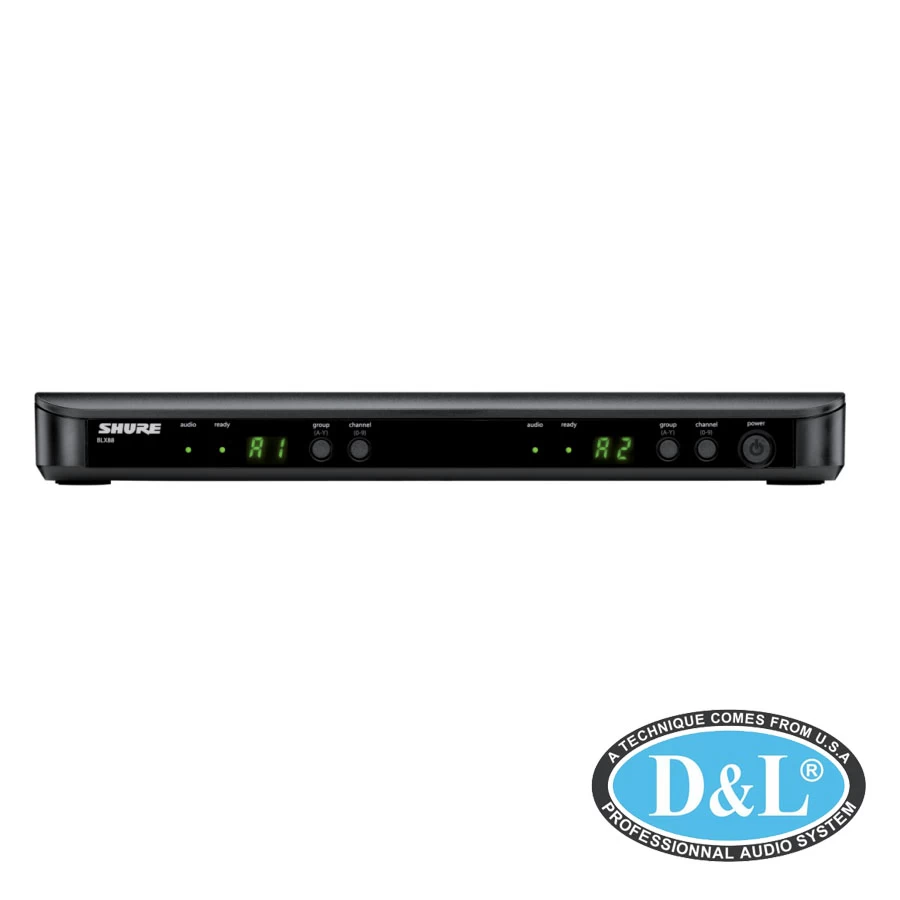

Easy-to-Use Tabletop Receiver for Quality Audio

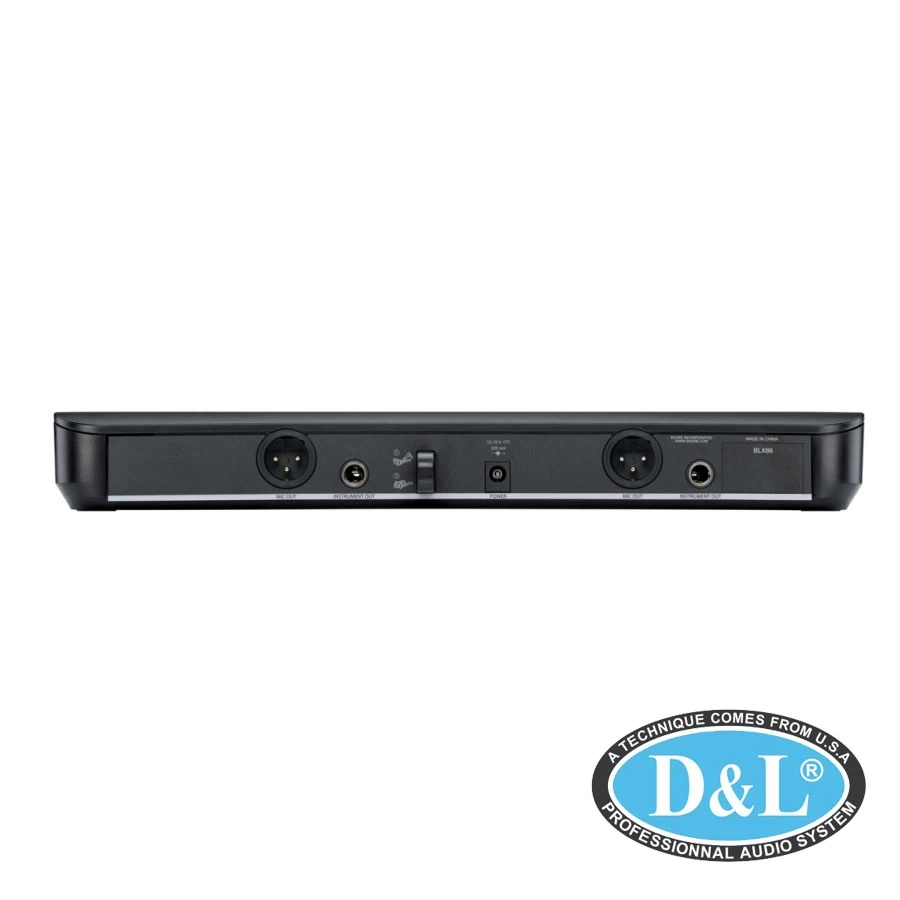

The BLX4 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.
| Receiver Type | Tabletop |
| Antenna | 2 x Internal, Fixed |
| Number of Audio Channels | 2 |
| Audio I/O | 2 x XLR 3-Pin Male Balanced Output 2 x 1/4" TRS Female Balanced Output |
| Audio Output Level | XLR Outputs: -27 dBV (Mic Level) 1/4" Outputs: -13 dBV (Instrument Level) |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Impedance | XLR Outputs: 200 Ohms 1/4" Outputs: 50 Ohms |
| Approximate RF Sensitivity | -105 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 15 VDC at 160 mA, Center-Positive (Included) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 2 x LED (AF Level, Sync) |
| Housing | ABS |
| Operating Temperature | 0 to 135°F / -17 to 57°C |
| Dimensions | 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm |
| Weight | 15.1 oz / 429 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input (Lockable) |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | -16 to +10 dB |
| Sync Method | Manual |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 14 Hours (Alkaline) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
| Housing | ABS |
| Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
| Weight | 2.6 oz / 75 g (without Batteries) |
| Microphone Type | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 20 kHz |
| SNR | 72 dB |
| Equivalent Noise Level | 22 dB |
| Maximum SPL | 139 dB SPL |
| Impedance | 600 Ohms |
| Dynamic Range | 117 dB |
| Output Connectors | 1 x TA4/Mini XLR 4-Pin Female (Lockable) |
| Cable Length | 4.27' / 1.3 m |
| Operating Voltage | 5 V |
| Weight | 0.88 oz / 25 g |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | -20 to -10 dB |
| Sync Method | Manual |
| Antenna | 1 x Internal (Handheld) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 14 Hours (Alkaline) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
| Housing | ABS |
| Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
| Weight | 7.7 oz / 218 g (without Batteries) |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 16 kHz |
| Sensitivity | -55 dBV/Pa |
| Package Weight | 5 lb |
| Box Dimensions (LxWxH) | 19.1 x 16.2 x 3.8" |
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 123 |
| Included Transmitters | 1 x Bodypack 1 x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | H10: 542 to 572 MHz |
| RF Bandwidth | 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Dynamic Range | 100 dBA |
