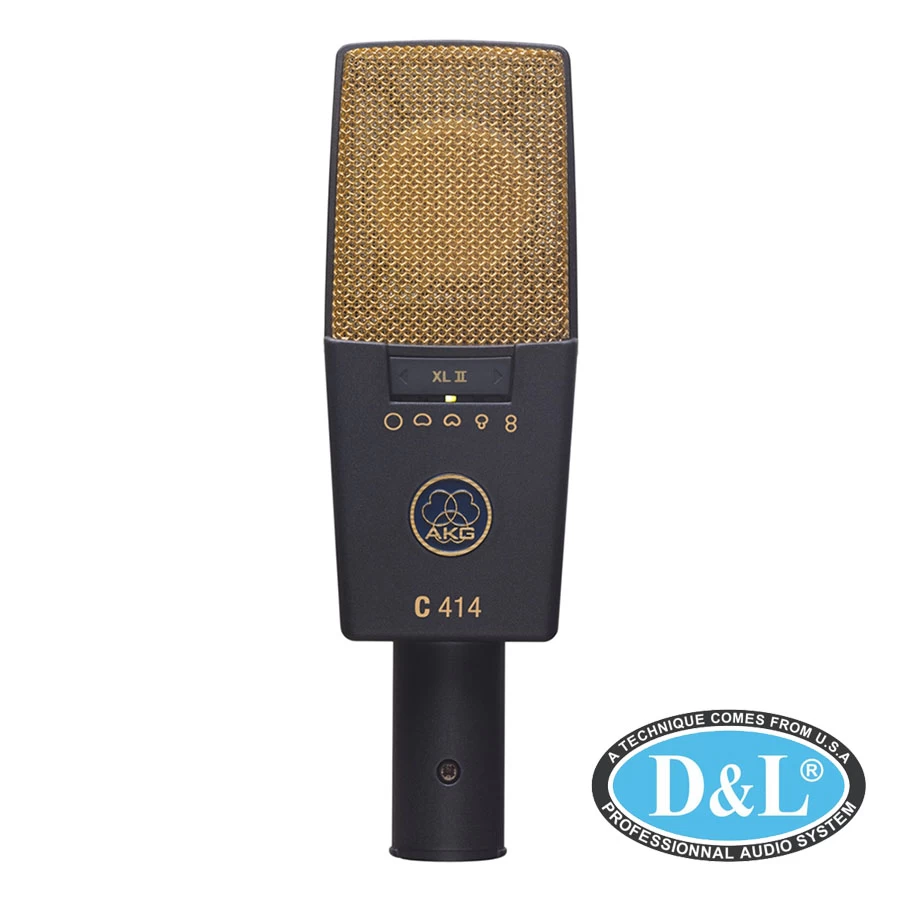

Micro C414 XLII

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

Thông số kỹ thuật

General Specifications

• Polar Patterns : Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
• Audio frequency bandwidth : 20 - 20000 Hz
• Equivalent noise level : 6 dB-A
• Sensitivity : 23 mV/Pa
• Signal to Noise : 88 dB-A
• Preattenuation Pad : -6; -12; -18 dB
• Bass cut filter : 160; 80; 40 Hz
• Electrical impedance : 200 Ohms
• Recommended load impedance : 2200 Ohms

Dimensions

• Length : 38 mm
• Width : 50 mm
• Height : 160 mm
• Net Weight : 300 g

Design

• Finish : dark gray/gold

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin

Powering Interface

• Voltage : 44 to 52 V
• Current : 4.5 mA

Application

• Pro Studio : Yes

Instrument

• Vocals : Yes
• Piano / Strings : Yes
• Horns / Woodwinds : Yes
