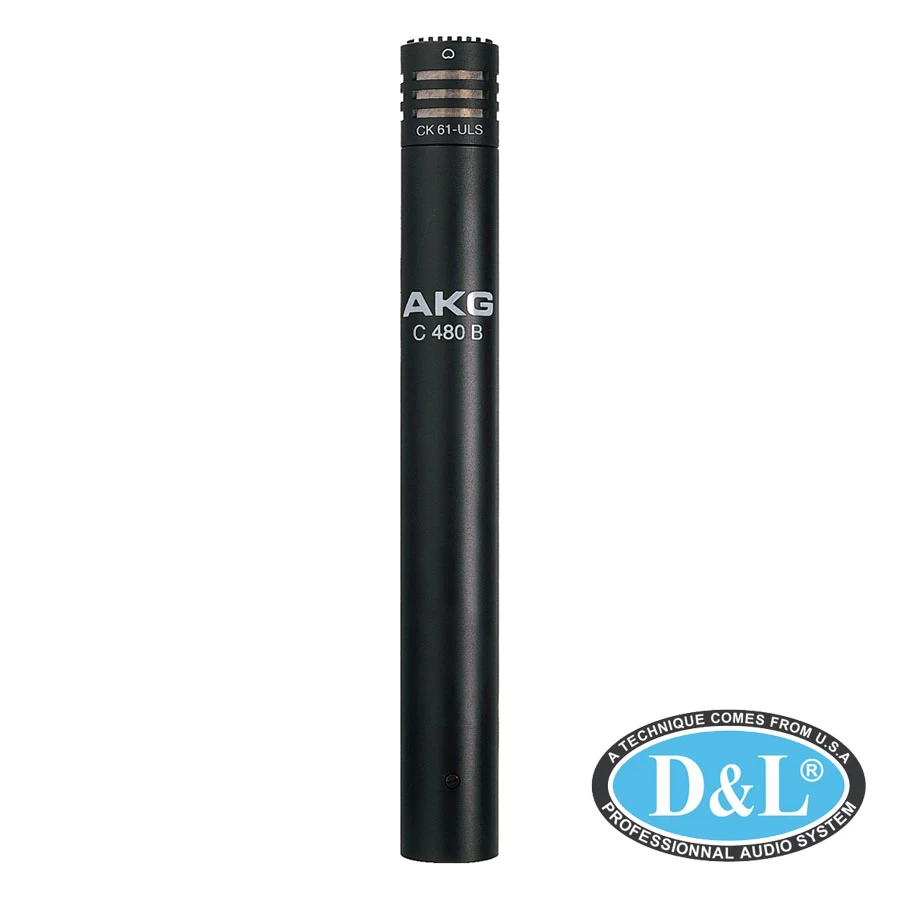

Micro C480 B Combo

The C480 B Combo is a combination of C480 B pre-amp and the CK61 ULS capsule. It offers excellent audio quality and maximum flexibility. The electronic circuitry of the C480 B comes with a transformerless output stage and assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum. The CK61 capsule is characterized by a ruler-flat frequency response and an unmatchable consistent cardioid polar pattern. It is the ideal choice for critical recording and live-sound applications where consistent suppression of off-axis sound is an important requirement. The CK61 ULS is widely used in broadcast and recording studios as well as on stages worldwide.

Thông số kỹ thuật

General Specifications

• Polar Pattern : Cardioid
• Audio frequency bandwidth : 20 - 20000 Hz
• Equivalent noise level : 11 dB-A
• Sensitivity : 20 mV/Pa
• Signal to Noise : 83 dB-A
• Preattenuation Pad : 6 - 10 dB
• Bass cut filter : 100 Hz
• Electrical impedance : 150 Ohms
• Recommended load impedance : 2000 Ohms

Dimensions

• Height : 171 mm
• Diameter : 21 mm

Design

• Finish : matte black

Audio Output

• Type : Balanced XLR
• Gende : rMale
• Contacts : 3-pin

Powering Interface

• Voltage : 48 to 48 V
• Current : 2 mA
