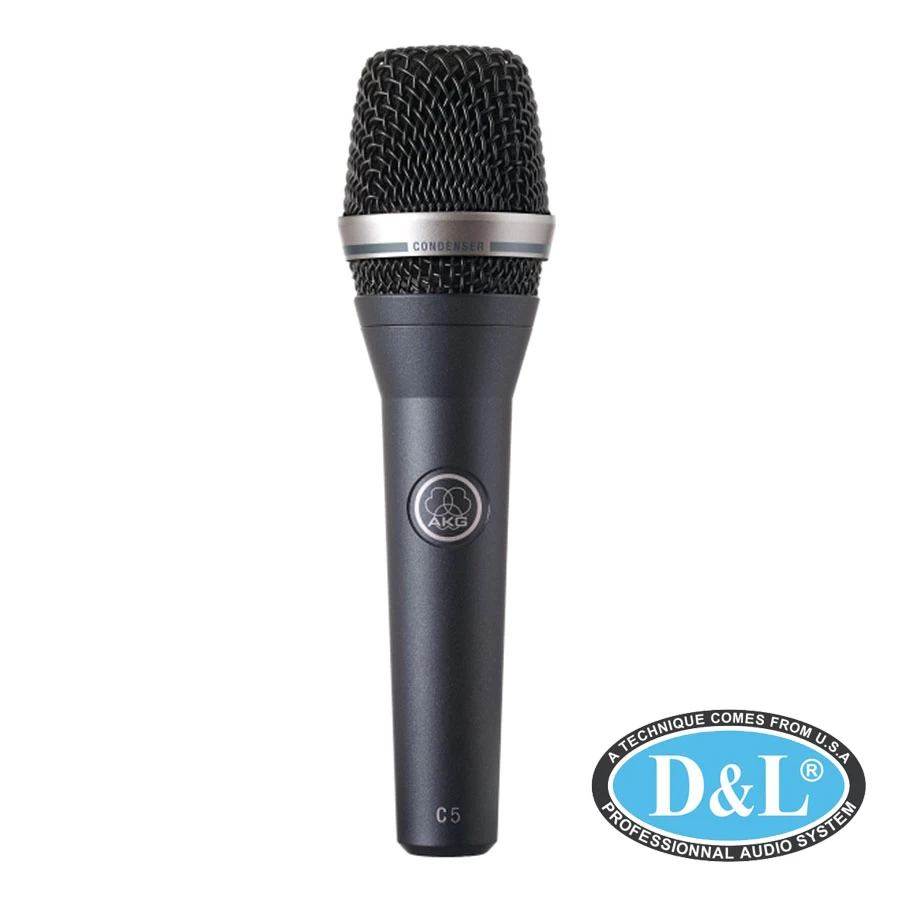

Micro C5 WL1

With the C5 WL1 professional condenser vocal microphone head your voice will cut through the loudest mix – on any stage. Its cardioid polar pattern ensures maximum gain before feedback and has been optimized for use with in-ear monitor systems.

The C5 WL1 microphone head provides a gold plated transducer case to protect the capsule from corrosion and humidity. It is designed to fit the HT4500 and DHT800 handheld transmitters.

Thông số kỹ thuật

General Specifications

• AKG Wireless System Compatibility : DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
• Type : Condenser
• Polar Pattern : Cardioid
• Capsule : 24-carat gold-plated capsule
• Isolation : Integrated shock absorber system
• Grille : Spring-steel wire-mesh
• Frequency Response : 65 to 20000 Hz
• Sensitivity : 4 mV/Pa
• Maximum SPL : 140dB @ 1% / 145dB @ 3%
• Equivalent Noise Level : 25 dB-A to DIN 45412

Application

• Live Instrument : Yes
• Live Vocal : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
