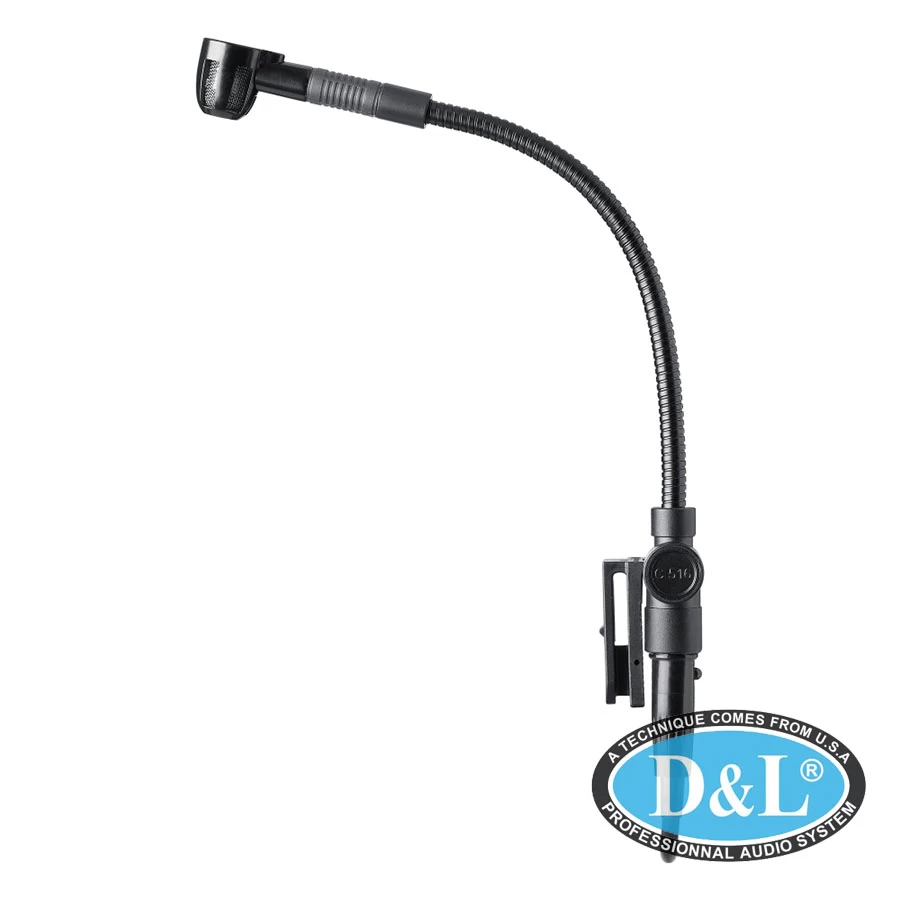

Micro C516 ML

The C516 ML professional miniature instrumental microphone, part of the MicroMics family, is designed for use on accordions, pianos, guitar speakers and keyboard/organ cabinets. The C516 ML comes with a wide variety of mounting materials, such as screws and adhesive pads for easy installation on the instrument or amp, and an A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Thông số kỹ thuật

General Specifications

• Type : Pre-polarized condenser microphone
• Polar Pattern : Cardioid
• Audio frequency bandwidth : 60 - 20000 Hz
• Equivalent noise level : 31 dB-A
• Sensitivity : 5 mV/Pa
• Signal to Noise : 63 dB-A
• Electrical impedance : 200 Ohms
• Recommended load impedance : 2000 Ohms
• Max. SPL for 1%/3% THD : 130/132 dB SPL

Dimensions

• Width : 47 mm
• Height : 235 mm
• Net Weight : 46 g
• Cable length : 1.5 m (5 ft.)

Design

• Body : metal
• Finish : matte black

Audio Output

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin

Powering Interface

• Voltage : 2 to 12 V
• Current : 2 mA

Application

• Project Studio : Yes
• Live Instrument : Yes

Instrument

• Guitar Amps / Bass Amps : Yes
• Piano / Strings : Yes
