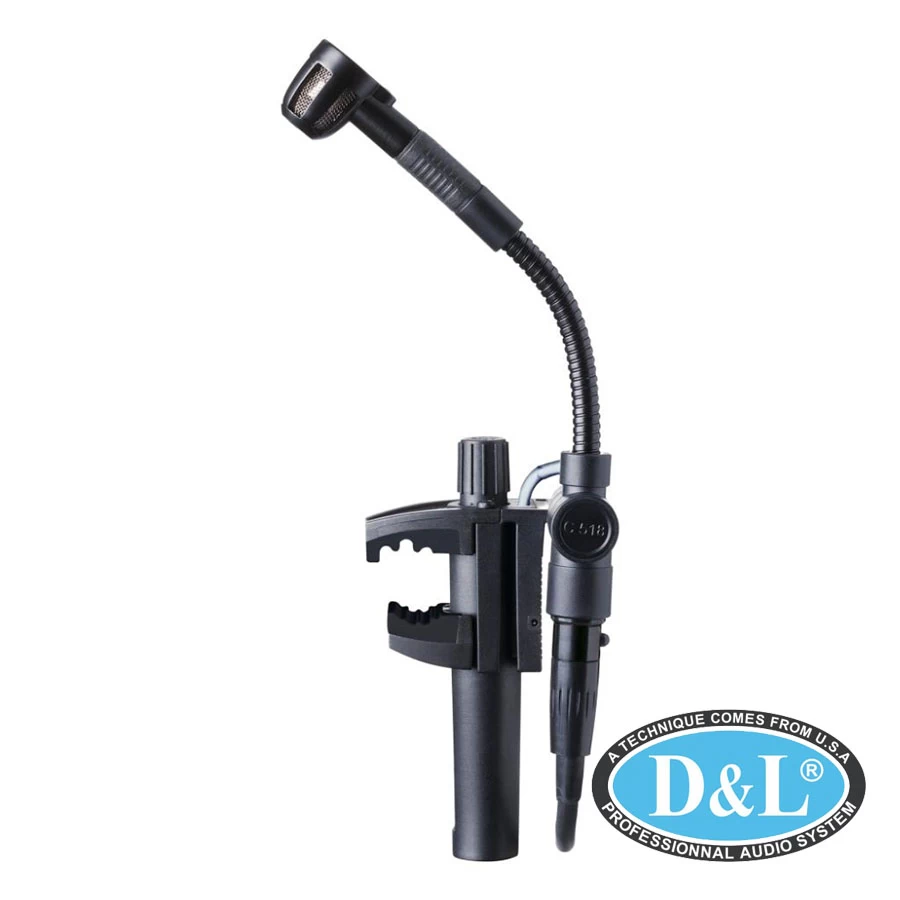

Micro C518 M

The C518 professional miniature clamp-on microphone is the ultimate tool for recording of drums and percussion. Its cardioid polar pattern rejects overspill from nearby instruments. A continuously adjustable vise-type clamp makes it easy to fix the microphone securely on the rim of drums or percussion instruments. A special snap-on stabilizer keeps the gooseneck in a defined position. The MPAV from C518 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response. The C518 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 60 - 20000 Hz
• Equivalent noise level : 31 dB-A
• Sensitivity : 5 mV/Pa
• Signal to Noise : 63 dB-A
• Electrical impedance : 200 Ohms
• Recommended load impedance : 2000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Width : 47 mm
• Height : 200 mm
• Net Weight : 220 g

Design

• Body : metal
• Finish : matte black

Audio Output

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin

Powering Interface

• Voltage : 9 to 52 V
• Current : 2 mA

Application

• Project Studio : Yes
• Live Instrument : Yes

Instrument

• Drums / Percussion : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
