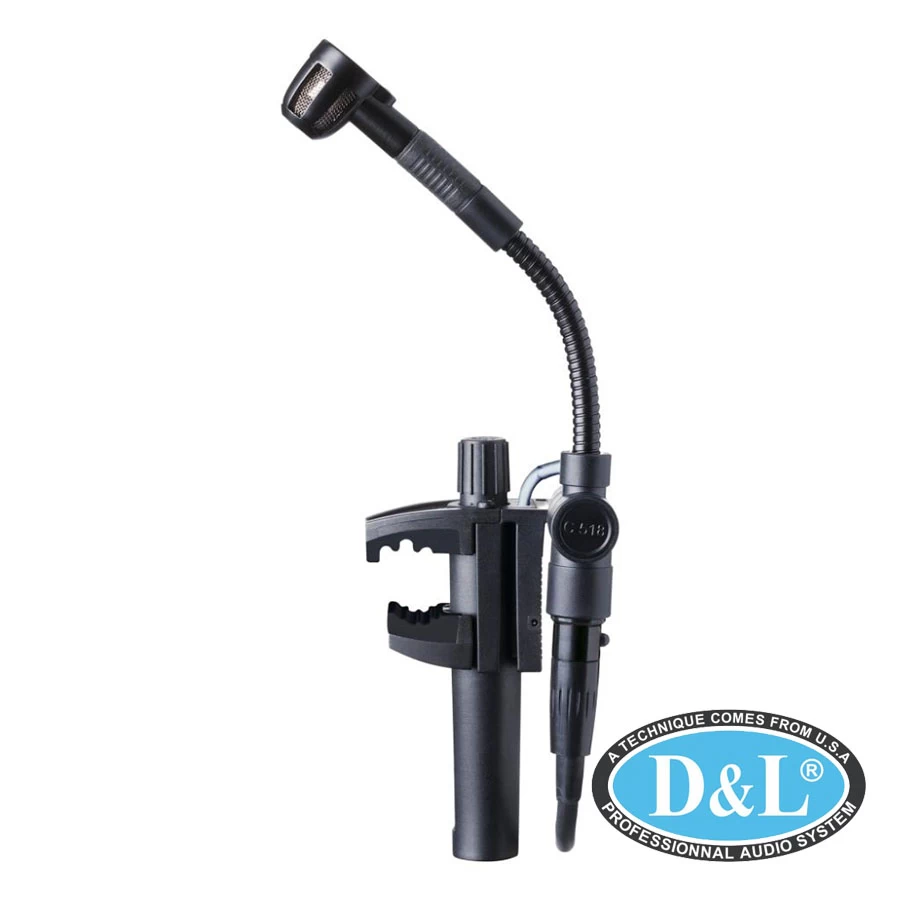

Micro C518 ML

The C518 professional miniature clamp-on microphone is the ultimate tool for recording of drums and percussion. Its cardioid polar pattern rejects overspill from nearby instruments. A continuously adjustable vise-type clamp makes it easy to fix the microphone securely on the rim of drums or percussion instruments. A special snap-on stabilizer keeps the gooseneck in a defined position. The MPAV from C518 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response. The C518 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 60 - 20000 Hz
• Equivalent noise level : 31 dB-A
• Sensitivity : 5 mV/Pa
• Signal to Noise : 63 dB-A
• Electrical impedance : 200 Ohms
• Recommended load impedance : 2000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Width : 47 mm
• Height : 200 mm
• Net Weight : 220 g

Design

• Body : metal
• Finish : matte black

Audio Output

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin
• Powering Interface
• Voltage : 9 to 52 V
• Current : 2 mA

Application

• Project Studio : Yes
• Live Instrument : Yes

Instrument

• Drums / Percussion : Yes
