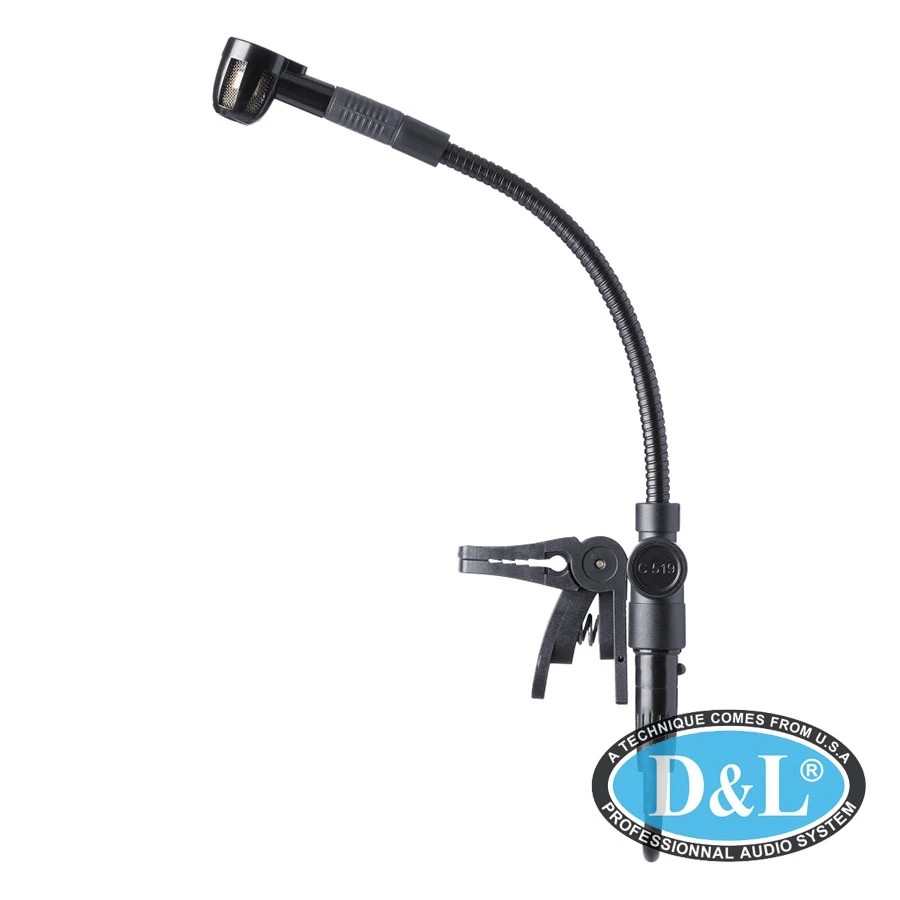

Micro C519 M

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound.

The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 60 - 20000 Hz
• Equivalent noise level : 31 dB-A
• Sensitivity : 5 mV/Pa
• Signal to Noise : 63 dB-A
• Electrical impedance : 200 Ohms
• Recommended load impedance : 2000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Width : 47 mm
• Height : 213 mm
• Net Weight : 195 g

Design

• Body : metal
• Finish : matte black

Audio Output

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin
• Powering Interface
• Voltage : 9 to 52 V
• Current : 2 mA

Application

• Project Studio : Yes
• Live Instrument : Yes

Instrument

• Horns / Woodwinds : Yes
