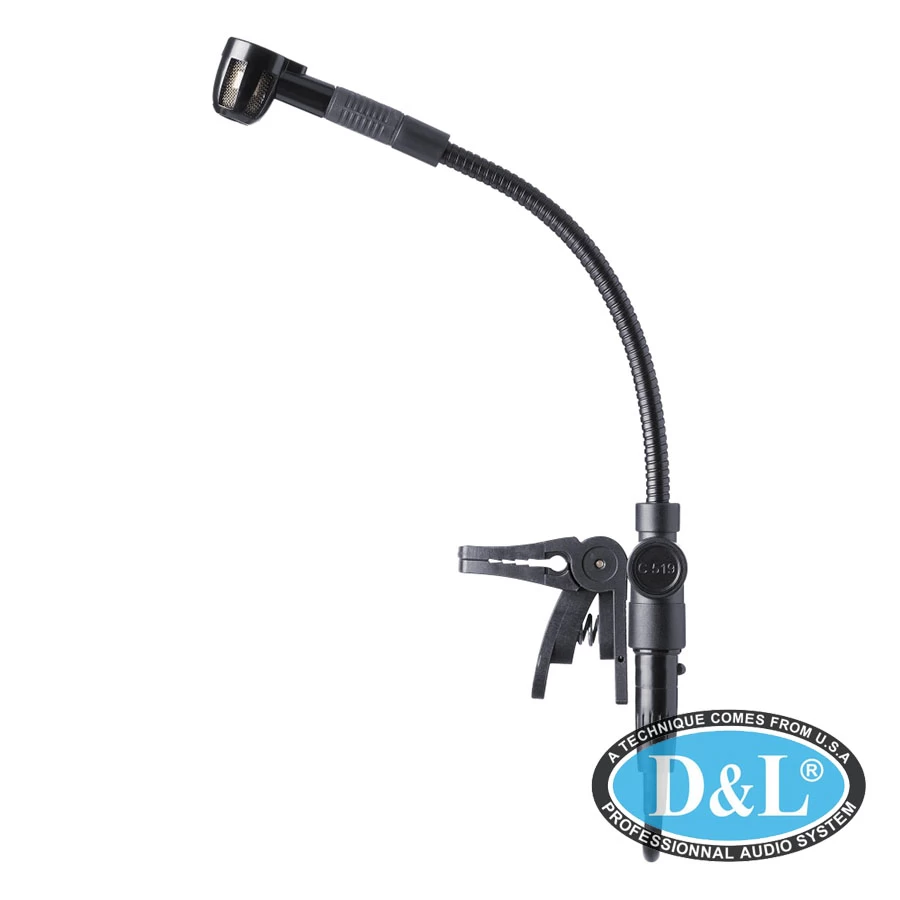

Micro C519 ML

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound.

The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 60 - 20000 Hz
• Equivalent noise level : 31 dB-A
• Sensitivity : 5 mV/Pa
• Signal to Noise : 63 dB-A
• Electrical impedance : 200 Ohms
• Recommended load impedance : 2000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Width : 47 mm
• Height : 213 mm
• Net Weight : 195 g

Design

• Body : metal
• Finish : matte black

Audio Output

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin
• Powering Interface
• Voltage : 9 to 52 V
• Current : 2 mA

Application

• Project Studio : Yes
• Live Instrument : Yes

Instrument

• Horns / Woodwinds : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
