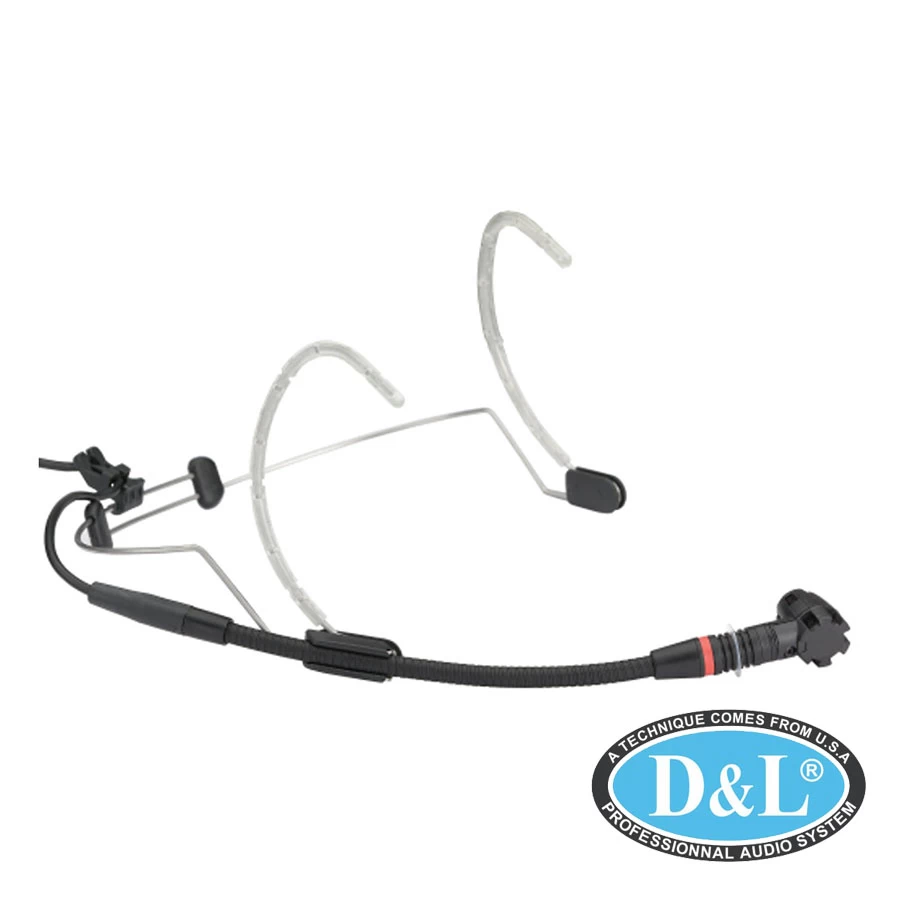

Micro C555 L

The C555 L high-performance head-worn condenser microphone is ideal for handsfree applications, including presentations or onstage performances. The C555 L rests securely and comfortably on the head, and can be attached to the left or right side of the behind-the-neck headband as desired. A transducer shock mount reduces handling noise to a minimum. The moisture shield ensures a high degree of humidity protection for the microphone.

The C555 L provides a three-pin mini XLR connector and can be used with all AKG WMS Series body-pack transmitters, B29 L battery power supply, or the MPA VL adapter for external phantom powering.

Thông số kỹ thuật

General Specifications

• Type : Pre-polarized condenser microphone
• Polar Pattern : Cardioid
• Frequency Range : 80 - 20000 Hz
• Sensitivity : 25 mV/Pa (U=9V, R=10kOhm)
• Impedance @ 1kHz : <200 Ohms
• Recommended load impedance : >2000 Ohms
• Max SPL for 1% THD : 120dB
• Equivalent noise level (IEC 60268-4) : 30dBA
• Signal to Noise Ratio (@ 94dB SPL) : 63dBA
• Recommended Serial Resistor : 10kOhm (2kOhm - 10kOhm)

Dimensions

• Length (mic only) : 195mm (7.7 in.)
• Max Diameter (mic only) : 134 mm (5.3 in.)
• Net Weight : 26g (0.9 oz.)
• Shipping Weight : 260g (9.2 oz.)

Design

• Finish : matte black

Audio Output

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin
• Cable Length : 1.5m (5 ft.)

Powering Interface

• Current Consumption : <2mA (<500uA if U-9V, R=10kOhm)
• Operation voltage : 9V (2V - 10V)

Application

• Live Vocal : Yes
• Sports / Fitness : Yes
• Assisted Listening : Yes
• Sound Reinforcement : Yes
• Presentation : Yes
• Retail : Yes

Instrument

• Vocals : Yes

Device

• Headset Microphone : Yes

Product specifications may vary according to country or project needs when ordering
