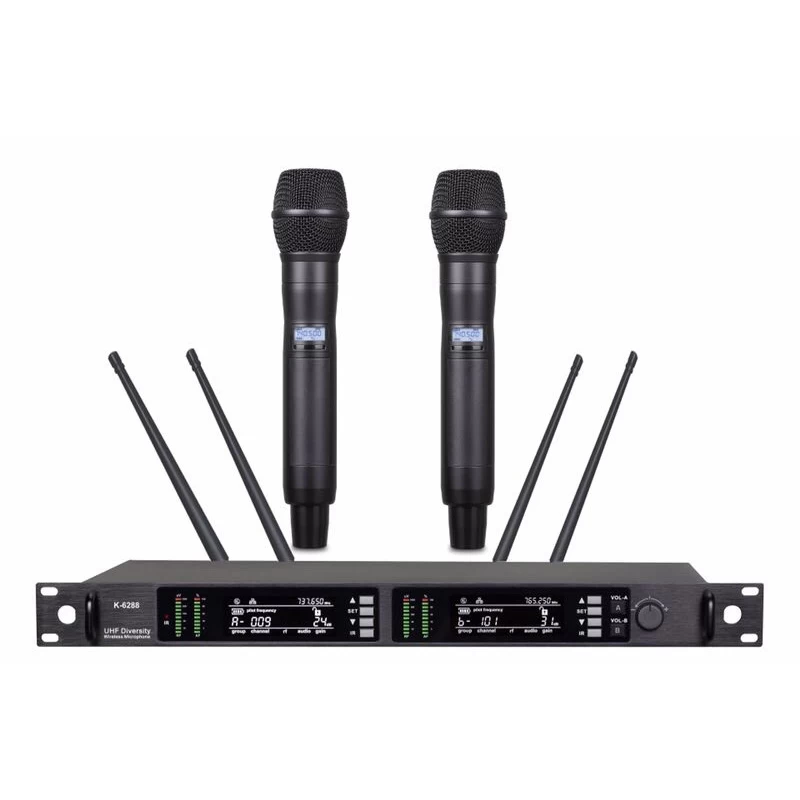

MICRO CDBO K-6288

Technical parameters System Specifications:
1. Frequency range: UHF 520-930MHz
2. Modulation: Wideband FM
3. Adjustable range: 50MHz
4. Number of channels: 2x100
5. Channel spacing:           250KHz
6. Frequency stability: ± 0.005% or less
7. Dynamic range: 100dB
8. Maximum deviation: ± 45KHz
9. Audio response: 80Hz-18KHz (± 3dB)
10. Integrated SNR:> 105dB
11. Integrated distortion: ≤ 0.5%
12. Operating temperature: -10 ℃ ~ 50 ℃
Receiver specifications:
1. Receiver mode: Secondary frequency superheterodyne
2. IF frequency: the first IF: 110MHz, the second IF 10.7MHz
3. Wireless interface: BNC / 50
4. Sensitivity: 12dBμV (80dBS / N)
5. Sensitivity range: 12-32dBμV
6. Spurious Suppression: ≥75dB
7. Maximum Output Level: +10 dBV
Transmitter Specifications:
1. Antenna program: equipped with a transmitter with a 1/4 wavelength whip antenna, a built-in helical microphone with a handheld microphone
2. Output power: high Frequency 30Mw, low frequency 3Mw
3. Spurious suppression: -60dB
4. Power supply: two AA DC 1.5V battery
5. Use time: more than 10 hours at 30mW, more than 15 hours at 3mW

Product specifications may vary according to country or project needs when ordering
