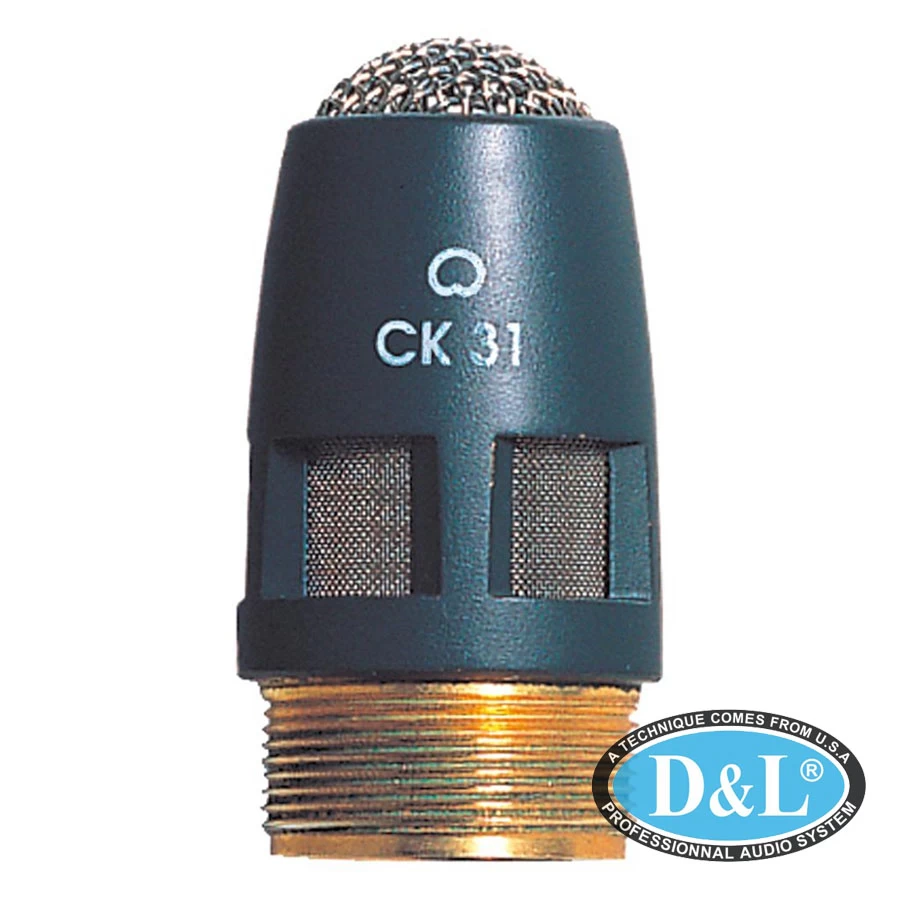

Micro CK31

The CK31 is a high-performance condenser microphone capsule with a wide cardioid polar pattern, especially designed for inexperienced speakers and applications where more than one person uses the microphone in turn. The CK31 capsule is integrated in a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 50 - 20000 Hz
• Equivalent noise level : 21 dB-A
• Sensitivity : 20 mV/Pa
• Signal to Noise : 73 dB-A
• Electrical impedance : 600 Ohms
• Recommended load impedance : 2000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Height : 20 mm
• Diameter : 13.5 mm
• Net Weigh : t5 g

Design

• Finish : matte dark gray

Audio Output

• Type : Modular Series Standard

Powering Interface

• Voltage : 9 to 52 V
• Current : 3 m
