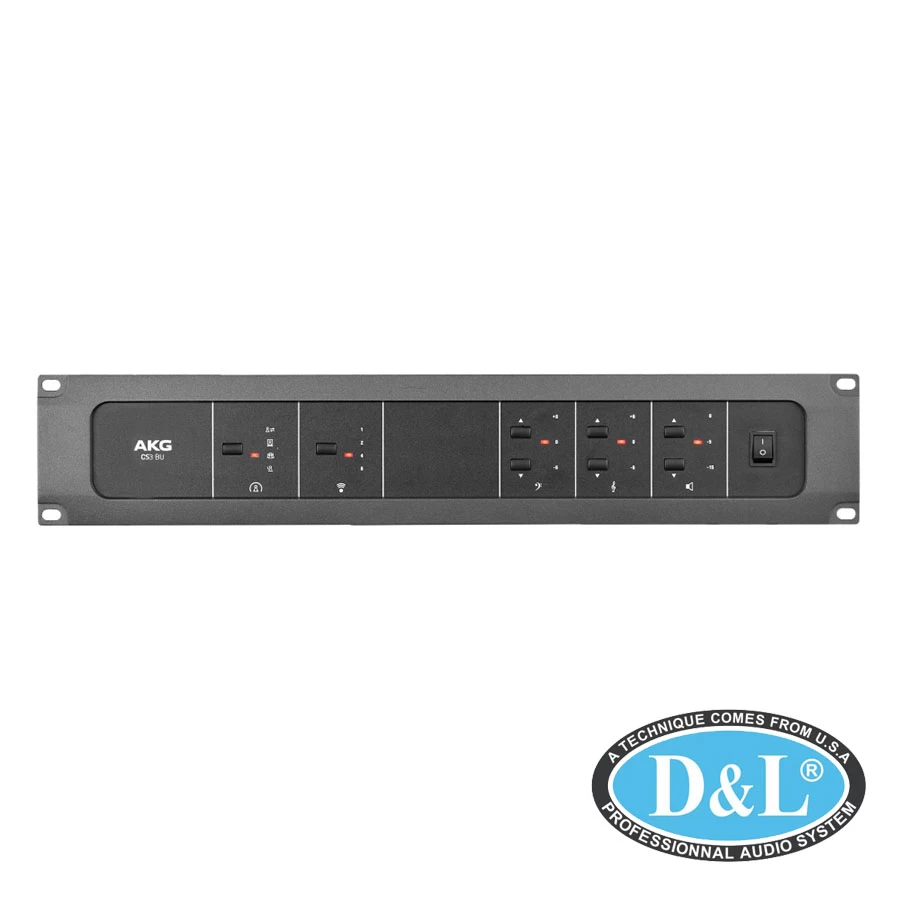

Micro CS3 BU

The CS3 BU is the base unit for the CS3 conference system and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS232 interface to connect an optional camera control system.

The CS3 BU can even work in a stand-alone mode in four selectable operating modes offering maximum flexibility in conference management. With the NOM limitation function, the maximum number of active stations can be programmed to 1, 2, 4 or 6 simultaneous open microphones.

Thông số kỹ thuật

General Specifications

• Power Supply : SMPS 100-240V (50Hz / 60 Hz) 3A
• Static Consumption : 13W
• Nominal Power Consumption : 320W
• Output Power : ≤90W / 24V each way
• Mode : Balanced / Unbalanced
• Frequency Response5 : 0Hz-20kHz
• S/N : >80dB
• Harmonic Distortion : <0.5%
• Harmonic Distortion at Overload : <1%
• Crosstalk Attenuation (1kHz) : >50dB
• Operating Temperature : 0°C - 40°C at 95% relative humidity (non-condensing)

Dimensions

• Length : 482 mm
• Width : 281 mm
• Height : 88.4 mm
• Weight : 5.2kg
