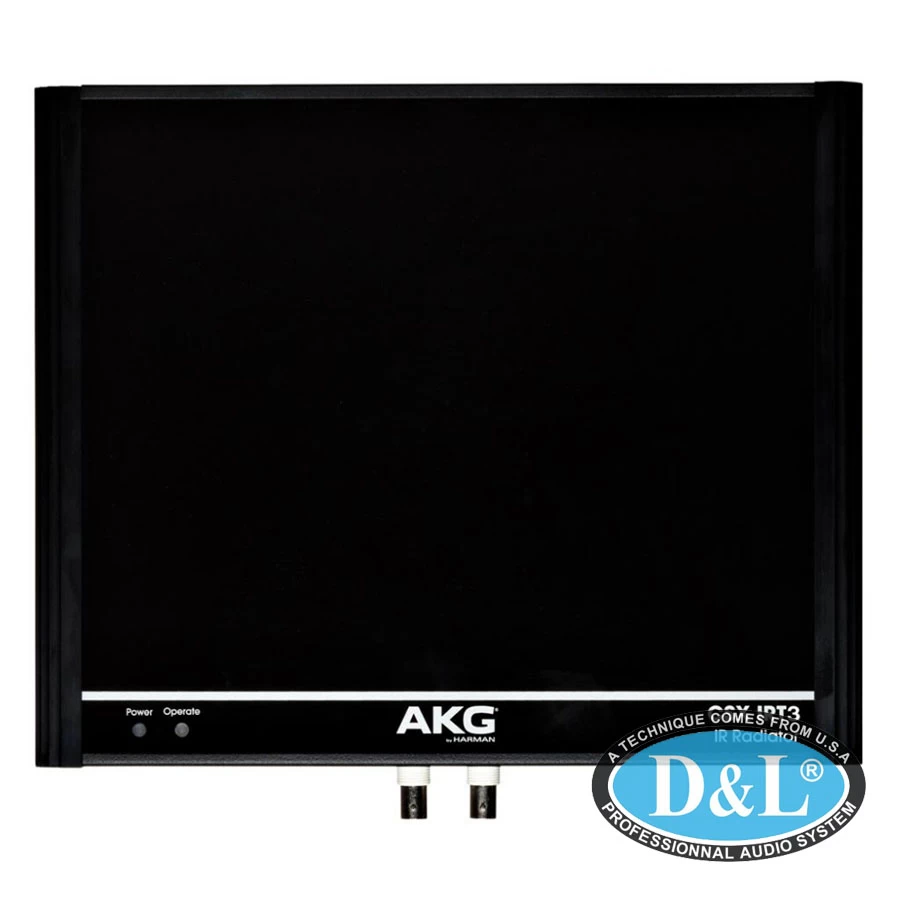

Micro CSX IRT3

The CSX IRT3 and CSX IRT4 are 10 channel infrared transmitter. Using digital PPM signal always all LED´s cover the same area and distance, regardless the number of channels needed in an application ensuring perfect coverage even with changing channel needs. The CSX IRT3 and 4 can be cascaded almost without limit due to a signal refresher built into all transmitters. Even very large areas can be covered. The transmitters are designed in a way that no cooling fans are needed – they act absolute quiet without any noise. Clearly visible LED´s indicate the status from the distance, providing highest security for the technician on site.

The CSX IRT3 is the spotlight version with a light angle of +/-17° to cover distances up to 65m.

Thông số kỹ thuật

General Specifications

• Number of languages : 10

Dimensions

• Width : 280 mm
• Height : 260 mm
• Depth : 70 mm
• Net Weight : 4000 g

Design

• Body : metal
• Finish : matte black

Powering Interface

• Voltage : 100 to 240 V

System Interface In

• Amount : 1
• Contacts : 2-pin
• Rated Impedance : 50 Ohms
• Type : BNC
• System Interface Out
• Amount : 1
• Contacts : 2-pin
• Rated Impedance : 50 Ohms
• Type : BNC
