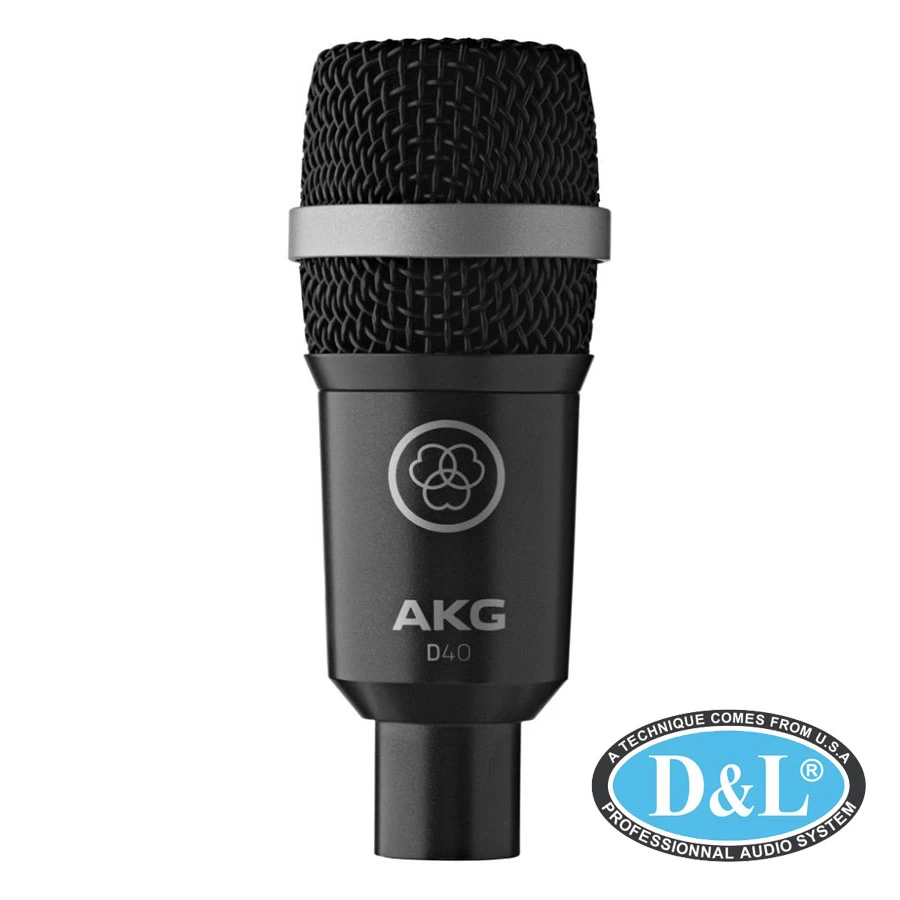

Micro D40

The D40 professional instrumental microphone with its solid all-metal body will stand up to the hardships of night-after-night onstage use with a smile. Its patented Varimotion diaphragm uses a unique laminated material to damp high resonance peaks, leading to a quantum leap in audio performance. The transducer is protected by a sturdy wire-mesh cap and can take extremely high sound pressure levels with ease.

An integrated stand adapter in combination with the included H440 mounting bracket makes the D40 a highly versatile tool for use on drums, percussion, wind instruments and guitar amps.

Thông số kỹ thuật

General Specifications

• Type : Dynamic pressure gradient microphone
• Polar Pattern : Cardioid
• Audio frequency bandwidth : 50 - 20000 Hz
• Sensitivity at 1000 Hz2.5 m : V/Pa (–52 dBV re 1 V/Pa)
• Equivalent noise level : 18 dB(A) (IEC 60268-4)
• Max. SPL for 1 % / 3 % THD : 147 dB SPL / 156 dB SPL
• Electrical impedance at 1000 Hz : ≥ 600 Ohms
• Recommended load impedance : ≥ 2000 Ohms

Dimensions

• Length : 104 mm
• Height : 79 mm
• Diameter : 44 mm
• Net Weight : 245 g

Design

• Body : metal
• Finish : dark stage blue

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin

Application

• Live Instrument : Yes

Instrument

• Drums / Percussion : Yes
• Guitar Amps / Bass Amps : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
