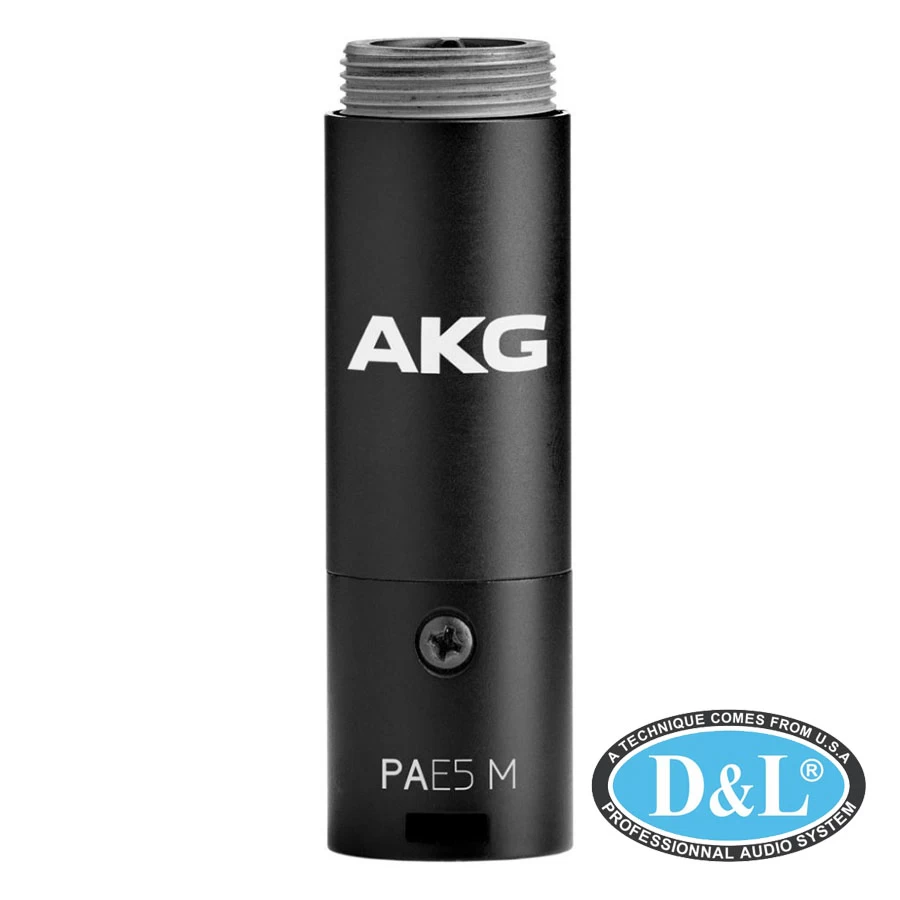

Micro PAE5 M

The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the “mic on” status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 20 - 20000 Hz
• Bass cut filter : 150 Hz
• Electrical impedance : < 600 Ohms
• Recommended load impedance : > 2000 Ohms

Dimensions

• Height : 65.5 mm (2.58 in)
• Diameter : 19.1 mm (0.75 in)
• Net Weight : 43 g (1.51 oz)

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 5-pin

Powering Interface

• Voltage : 9 to 52 V
• Current : 3.5 mA
