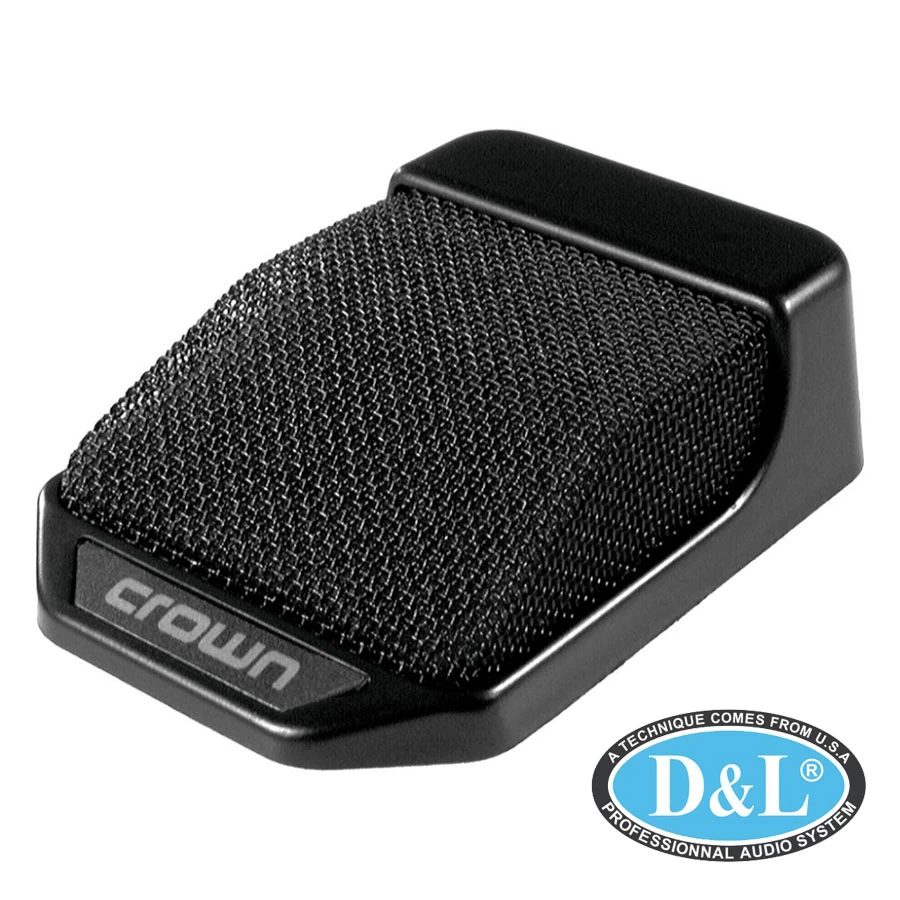

Micro PCC130

The PCC130 and the PCC130 SW are cardioid boundary layer microphones of professional quality that, due to their small size, fit perfectly on small tables. Thanks to low self-noise and very high sensitivity, the microphone picks up even distant voices clearly and naturally. A bass-tilt switch allows the user to tailor the low-end response and reduce subsonic noise.
The PCC130 SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on or momentary off. A high-intensity LED lights when the unit is on. For easy installation, both microphones offer an XLR connector and a detachable cable.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 50 - 20000 Hz
• Equivalent noise level : 22 dB-A
• Sensitivity : 22 mV/Pa
• Signal to Noise : 72 dB-A

Dimensions

• Length : 89 mm
• Width : 64 mm
• Height : 25 mm

Design

• Finish : satin black

Audio Output

• Type : Switchcraft TB3M
• Gender : Male
• Contacts : 3-pin

Powering Interface

• Voltage : 12 to 48 V

Application

• Conferencing : Yes

Device

• Boundary Layer Microphone : Yes
