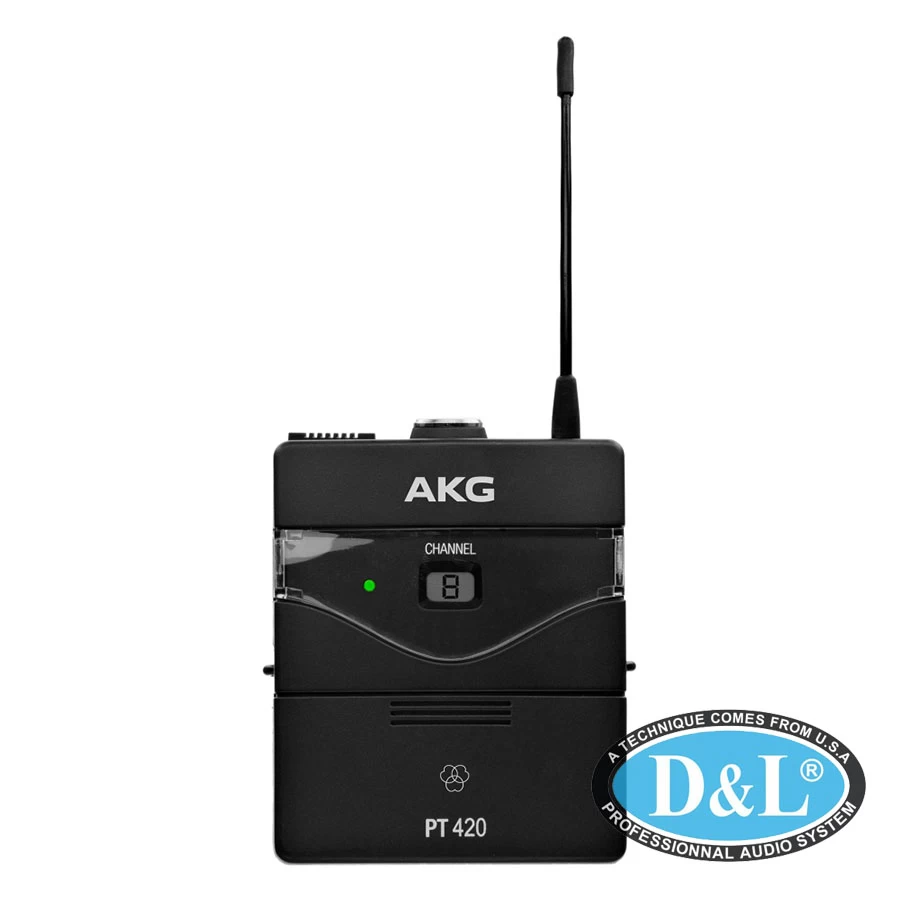

Micro PT420

The PT420 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT420 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

Thông số kỹ thuật

General Specifications

• Type : Three pin mini XLR connector (female)
• Maximum audio level : 12dB
• Rated Impedance : 1 Ohms
• Audio bandwidth : 40 – 20,000 Hz (+/- 3dB)
• Signal to noise : 105 dB-A
• THD at 1kHz : 0.8%
• Transmitter synchronization : Manual
• Battery type : AA battery (LR 6 AA alkaline battery or HR 6 AA (NiHM) rechargeable battery)
• Operating time : Up to eight hours with one AA battery
• Dimensions : 60 x 75,5 x 30 mm
• Weight : 214
