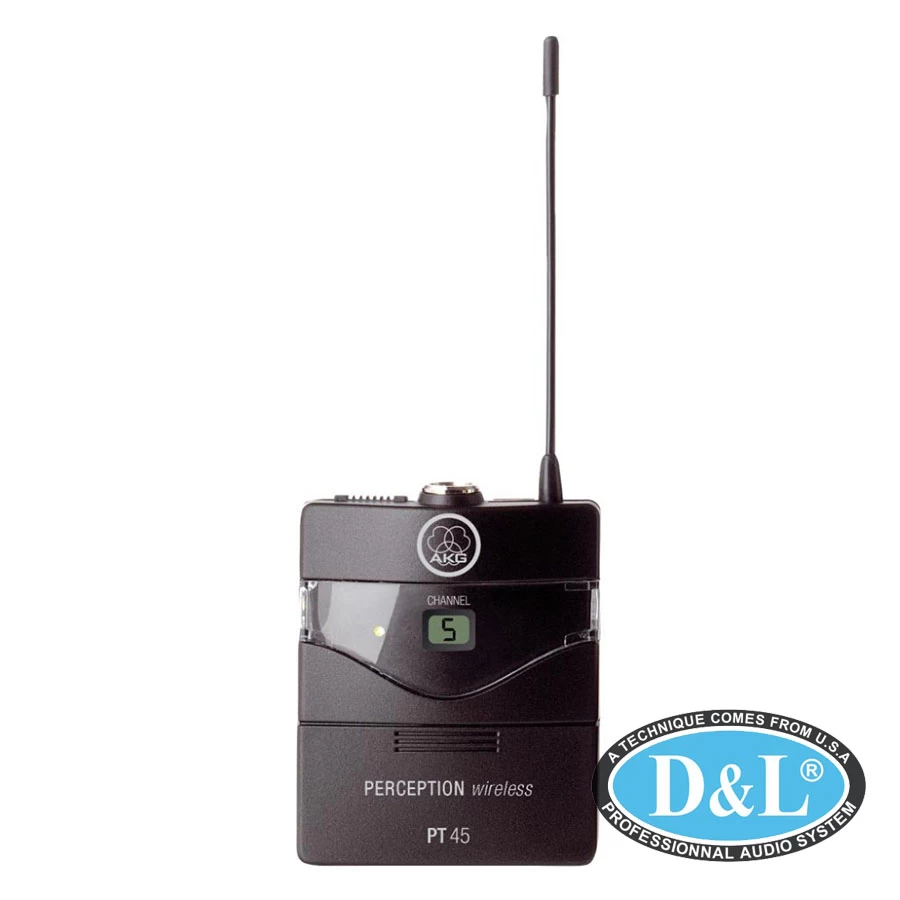

Micro PT45

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 40 - 20000 Hz
• Signal to Noise : 105 dB-A
• THD at 1 kHz : 0.8 Prozent
• Operating temperature range : -10 to 55 Celsius
• Peak deviation : 45 kHz
• Nominal deviation : 15 kHz
• Transmitter Synchronization : Manual
• Switching bandwidth : 30 MHz
• Recommended simultaneous channels : 5
• Number of selectable frequencies : 8 Fixed frequencies
• Frequency Selection : Fixed frequency
• Radio range (Line of sight) : 30m
• Switchable RF power : no
• Modulation : FM (Frequency Modulation)
• Encryption : No encryption
• Pilot Tone : no

Dimensions

• Length : 60 mm
• Height : 75.5 mm
• Width : 30 mm

Design

• Body : plastic
• Finish : black

Audio Input

• Type : Mini XLR
• Gender : Female
• Contacts : 3-pin
• Maximum audio level : 12 dB
• Rated Impedance : 1 Ohms

Battery

• Number of batteries : 1
• Operating time : 14 h

Battery 2

• Number of batteries : 1
• Operating time : 8 h

Battery 1

• Battery type : LR6 AA alkaline Battery
• Number of batterie : s1
• Operating time : 8 h

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
