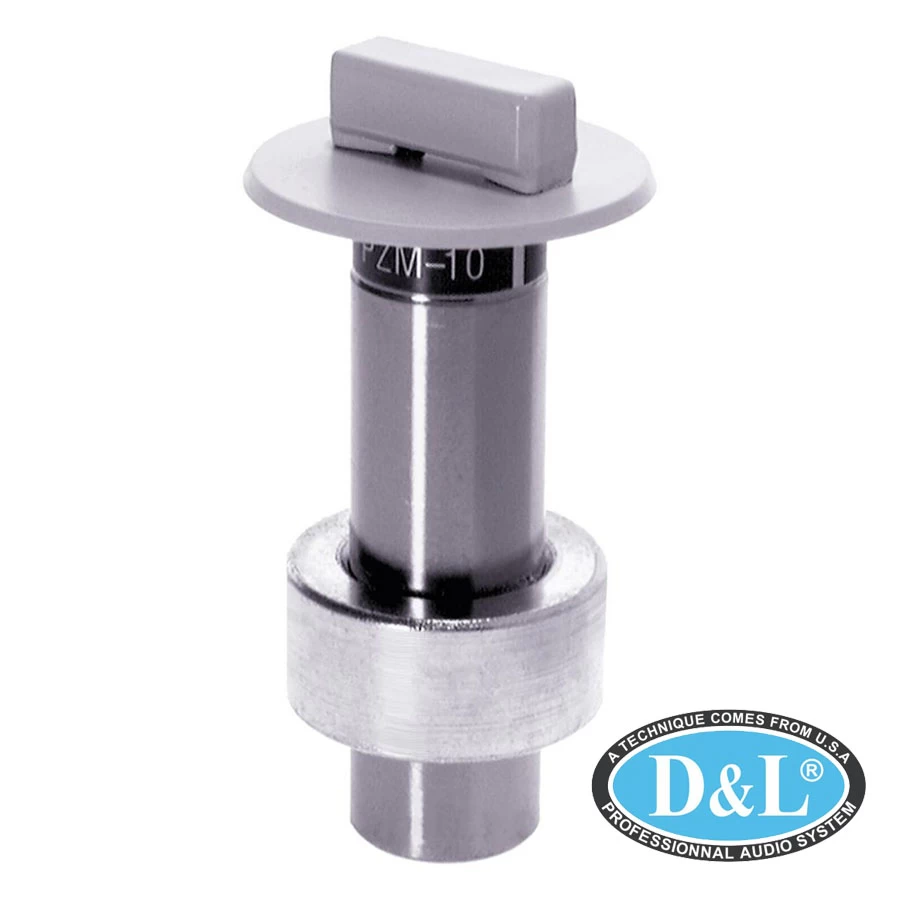

Micro PZM10

The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously.
Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 80 - 20000 Hz
• Equivalent noise level : 26 dB-A
• Sensitivity : 2.5 mV/Pa
• Signal to Noise : 68 dB-A
• Recommended load impedance : 2000 Ohms

Dimensions

• Height : 72 mm
• Diameter : 39 mm
• Net Weight : 74 g

Design

• Finish : off-white

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin

Powering Interface

• Voltage : 12 to 48 V

Application

• Retail : Yes

Device

• Boundary Layer Microphone : Yes
