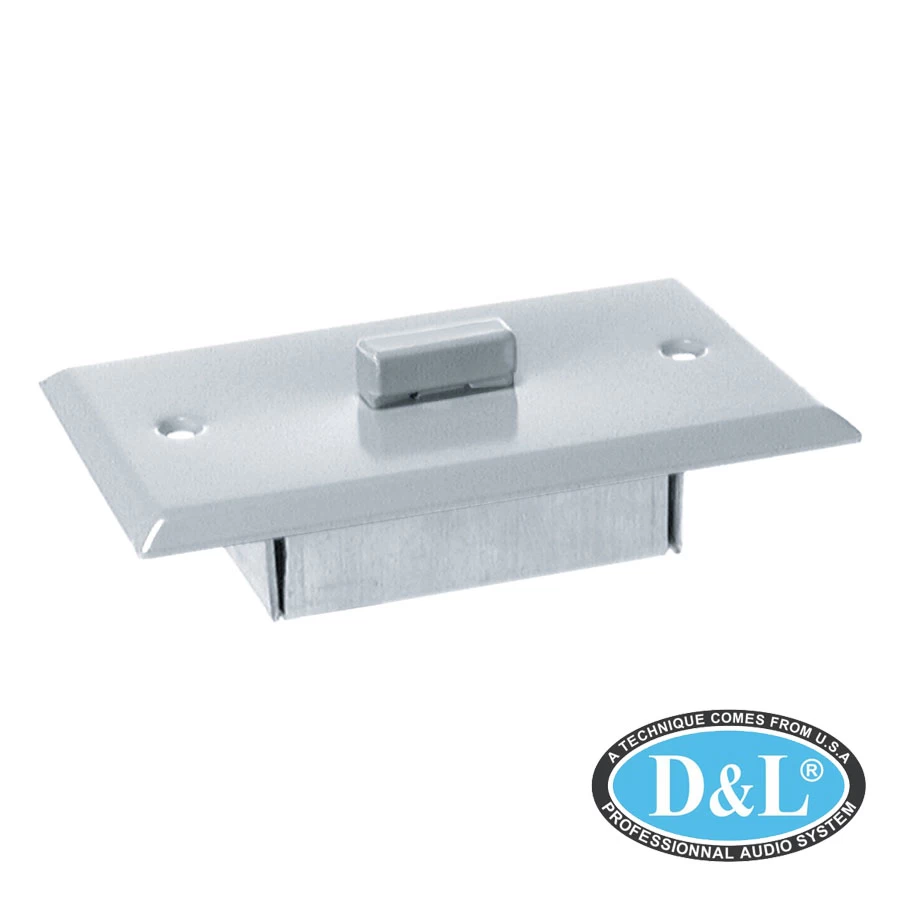

Micro PZM11

The PZM11 professional boundary layer microphone is designed for security and surveillance applications. The PZM11 is characterized by a consistent pickup anywhere around the mic. Low frequencies below the voice range are rolled off to reduce the pickup of heating, ventilation or air-conditioning rumble (HVAC noise). The high-frequency response is boosted slightly to aid clarity and articulation.

The PZM11 has a mic-level output and is powered by 12-48V phantom power. Electronics on the rear of the plate offer screw terminals, eliminating the need for connectors.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 80 - 20000 Hz
• Equivalent noise leve : l26 dB-A
• Sensitivity : 5 mV/Pa
• Signal to Noise : 68 dB-A

Dimensions

• Length : 115 mm
• Width : 70 mm
• Height : 29 mm
• Net Weight : 71 g

Design

• Finish : off-white

Audio Output

• Type : screw material
• Powering Interface
• Voltage : 12 to 48 V

Application

• Retail : Yes

Device

• Boundary Layer Microphone : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
