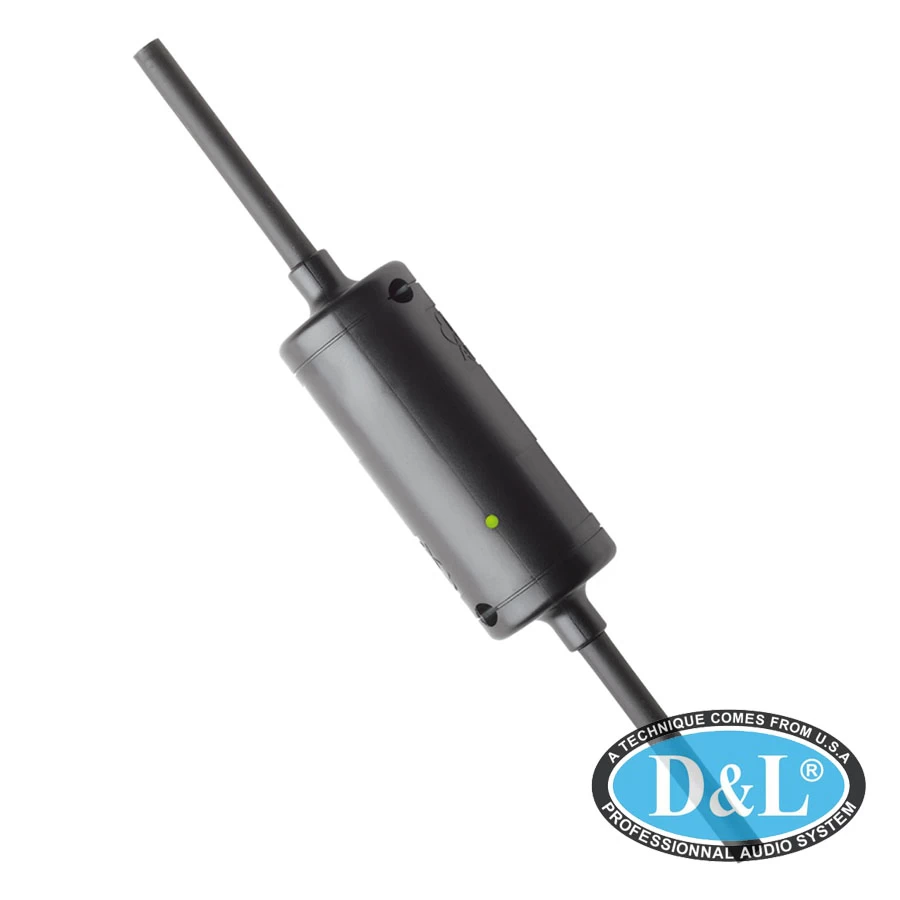

Micro RA4000 B/W

The RA4000 B/EW is an active omnidirectional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, providing a covering angle of 360° and a total gain of 18dB. The RA4000 B/EW has a built-in amplifier to compensate long cable runs. With dedicated antenna components, it works for cable lengths up to 300m. The RA4000 B/EW is remotely powered through the antenna cable.

The antenna has waterproof construction and can be used for indoor and outdoor applications. Using the included universal stand adapter, the RA4000 B/EW can be mounted on floor stands with 3/8" or 5/8" screws.

Thông số kỹ thuật

General Specifications

• Switching bandwidth (from/to) : 470 to 952 MHz
• Antenna gain : 17 dBi
• Covering angle : 360 Grad

Dimensions

• Length : 220 mm
• Width : 38 mm
• Net Weight : 65 g

Antenna Input

• Output current : 0; 0; 0
• RF Attenuation : 0; 0; 0

Antenna Output

• Amount : 1
• Type : BNC
• Gender : Female
• Note : RF output (50 Ohms)
• Recommended load impedance : 50 Ohms

Design

• Body : plastic
• Finish : black
• Powering Interface
• Type : BNC
• Voltage : 8 to 8 V

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
