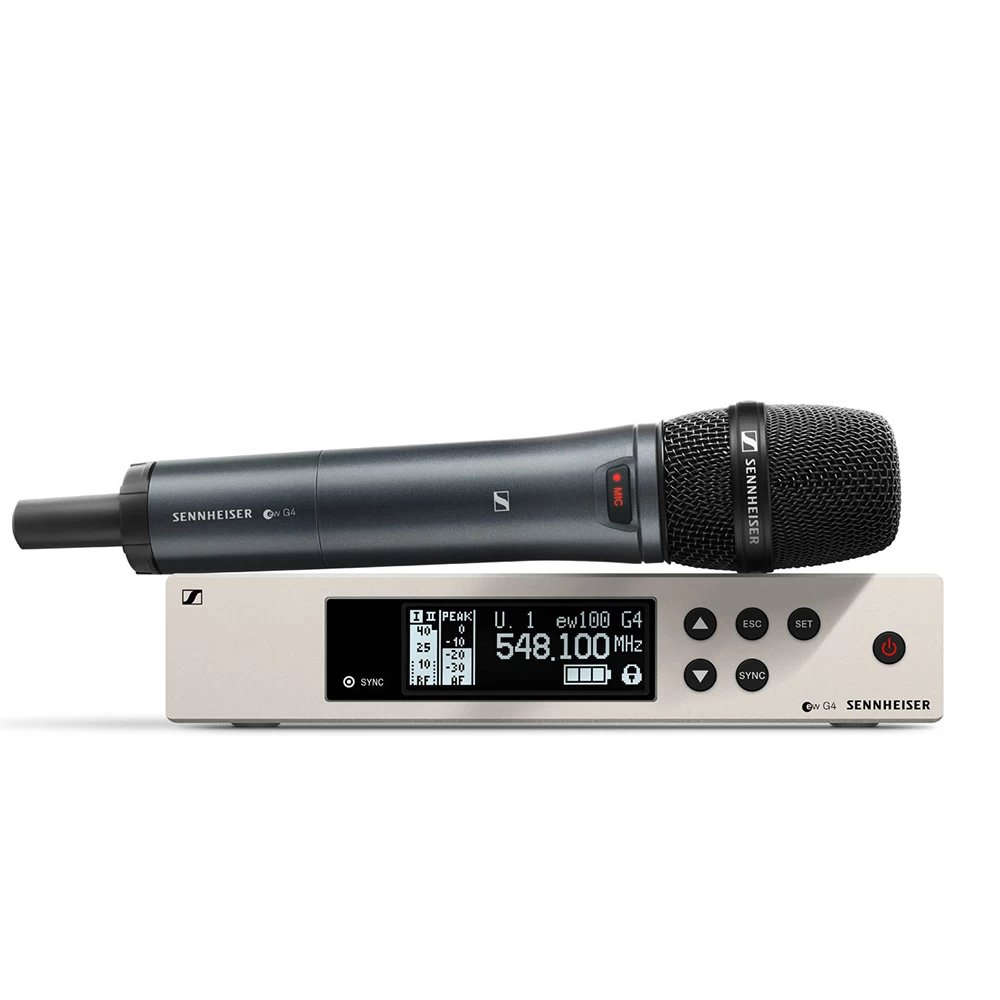

MICRO SENNHEISER EW 100 G4-865

Features

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
• State-of-the-art live sound featuring Sennheiser‘s renowned  e 865,  capsules on a lightweight aluminium transmitter with integrated mute switch
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

What’s in the box?

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter
• MMD 835-1 microphone head (835-S variants only)
• MMD 845-1 microphone head (845-S variants only)
• MME 865-1 microphone head (865-S variants only)
• GA 3 rackmount set
• MZQ 1 microphone clamp
• power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• quick guide
• safety guide
• manufacturer declaration sheet
• frequency supplement sheet

Technical Data

• EM 100 G4
• Frequency range
• A1: 470 – 516 MHz
• A: 516 – 558 MHz
• AS: 520 – 558 MHz
• GB: 606 – 648 MHz
• G: 566 – 608 MHz
• B: 626 – 668 MHz
• C: 734 – 776 MHz
• D: 780 – 822 MHz
• E: 823 – 865 MHz
• 1G8: 1785 – 1800 MHz
• JB: 806 – 810 MHz
• K+: 925 – 937,5 MHz
• Dimensions
• Approx. 190 x 212 x 43 mm
• Compander
• Sennheiser HDX
• THD, total harmonic distortion ≤ 0.9 % WeightApprox. 980 g
