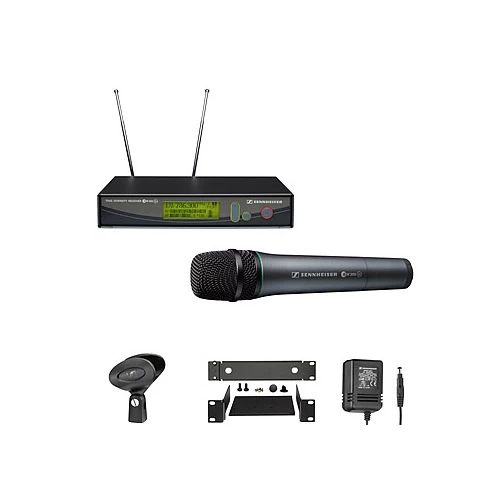

MICRO SENNHEISER EW-300G2

System Receiver

RF characteristics Modulation wideband FM

Frequency ranges 626–662 MHz. Transmission/receiving frequencies 8 channel banks with 8 factory-preset channels each. Switching bandwidth 36 MHz. Nominal/peak deviation ±24 kHz/±48 kHz. Frequency stability ≤ ±15 ppm

AF characteristics

Noise reduction system Sennheiser HDX. AF frequency response 40–18,000 Hz. S/N ratio (at 1 mV and peak deviation) ≥ 112 dB(A). THD (at nominal deviation and 1 kHz) ≤ 0.9 %

General data

Temperature range –10 °C to +55 °C

RF characteristics EM 300 G2

Receiver principle true diversity. Sensitivity (with HDX, peak deviation) < 2.5 μV at 52 dBArms S/N ratio. Adjacent channel rejection ≥ 68 dB. Intermodulation attenuation ≥ 68 dB. Blocking ≥ 72 dB. Squelch 4 steps: Off Low: 5 dBμV Mid: 15 dBμV High: 25 dBμV. Pilot tone squelch can be switched off. Antenna inputs 2 BNC sockets

AF characteristics

AF output voltage (at peak deviation 1 kHzAF) 1/4’’ (6.3 mm) jack socket (unbalanced): +12 dBu. XLR socket (balanced): +18 dBu

Overall device

Power supply 10.5 – 16 V DC, nominal voltage 12 V DC. Power consumption approx. 200 mA. Dimensions [mm] 212 x 145 x 38. Weight approx. 1100 g

Transmitters

RF characteristics SK 300 G2

RF output power at 50 Ω typ. 30 mW

AF characteristics

Max. input voltage (at peak deviation) Microphone 1.8 Vrms, unbalanced – Line 2.4 Vrms. Input impedance Microphone 10 kΩ, unbalanced – Line 1 MΩ –

Overall device

Power supply 2 AA size batteries, 1.5 V. Nominal voltage 2.4 V. Max. power consumption at nominal voltage ≤ 170 mA ≤ 170 mA. Power consumption with switched-off transmitter ≤ 250 μA ≤ 250 μA. Operating time (with batteries) ≥ 8 h ≥ 8 h. Operating time (with BA 2015 accupack) ≥ 8 h ≥ 8 h. Dimensions [mm] 82 x 64 x 24 ∅ 50 x 225

Weight (incl. batteries) approx. 158 g approx. 450 g

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
