Mã sản phẩm : SLXD14/153T

(0)

icon
Freeship cho đơn hàng 1.000.000đ
icon
Hỗ trợ trả góp - thẻ tín dụng
icon
Linh kiện chính hãng

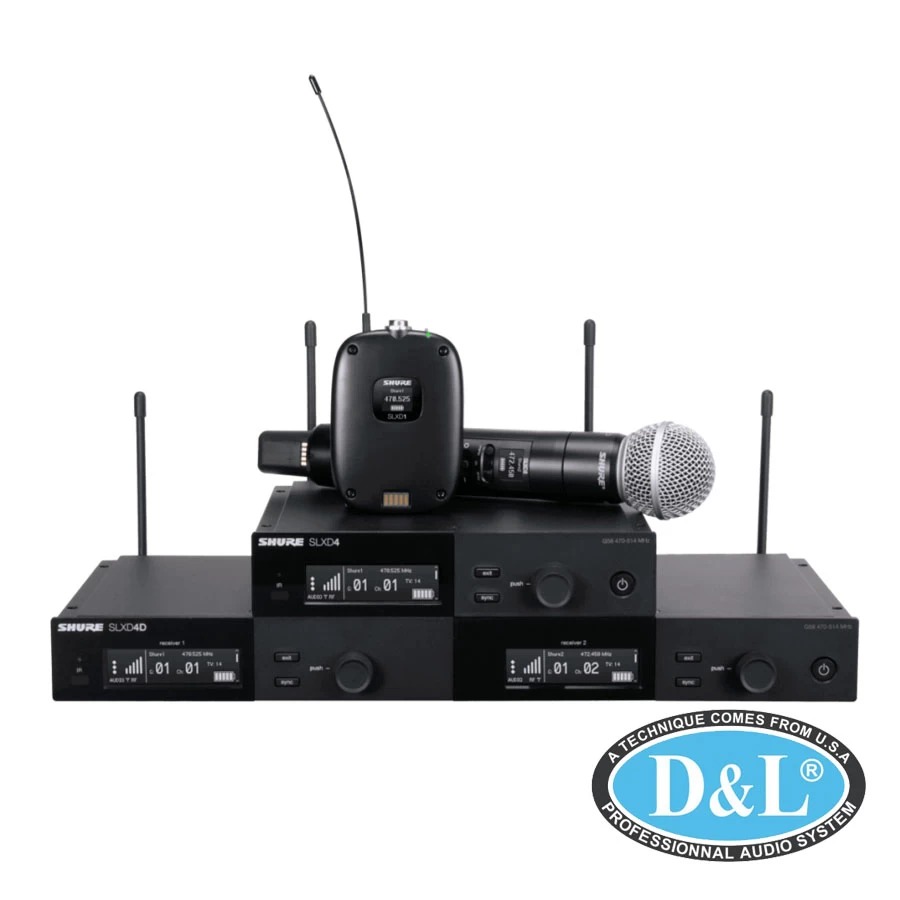

Digital Wireless System
Có thể bạn quan tâm
Xem tất cả

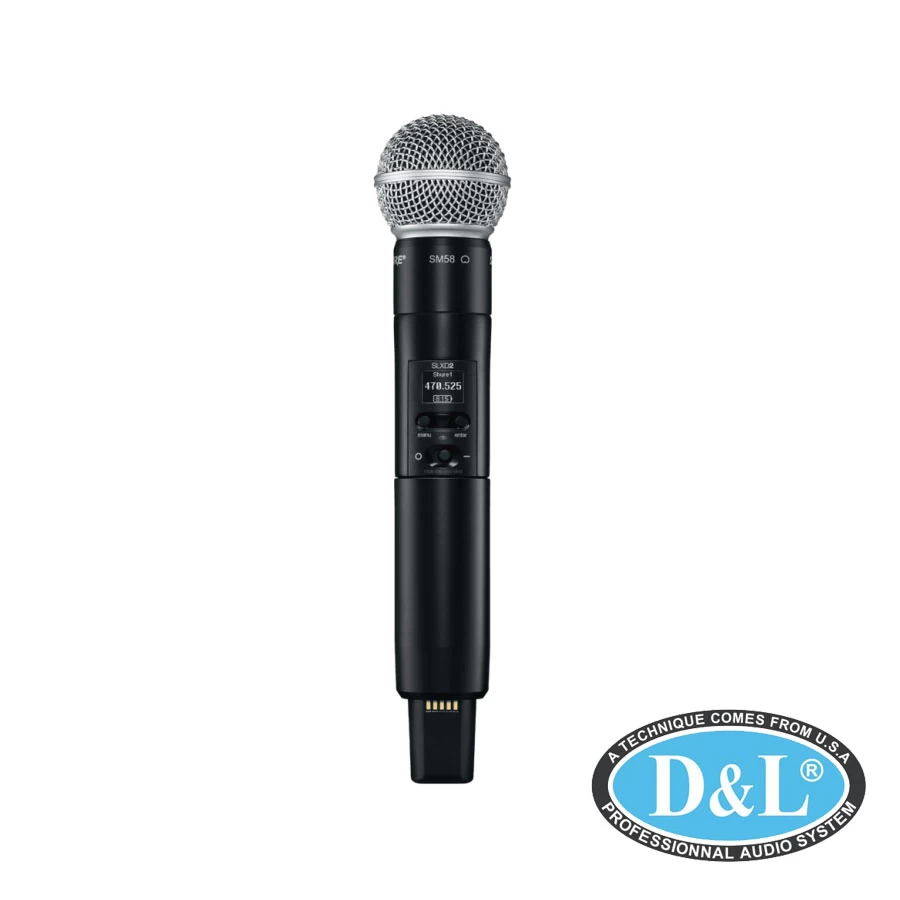

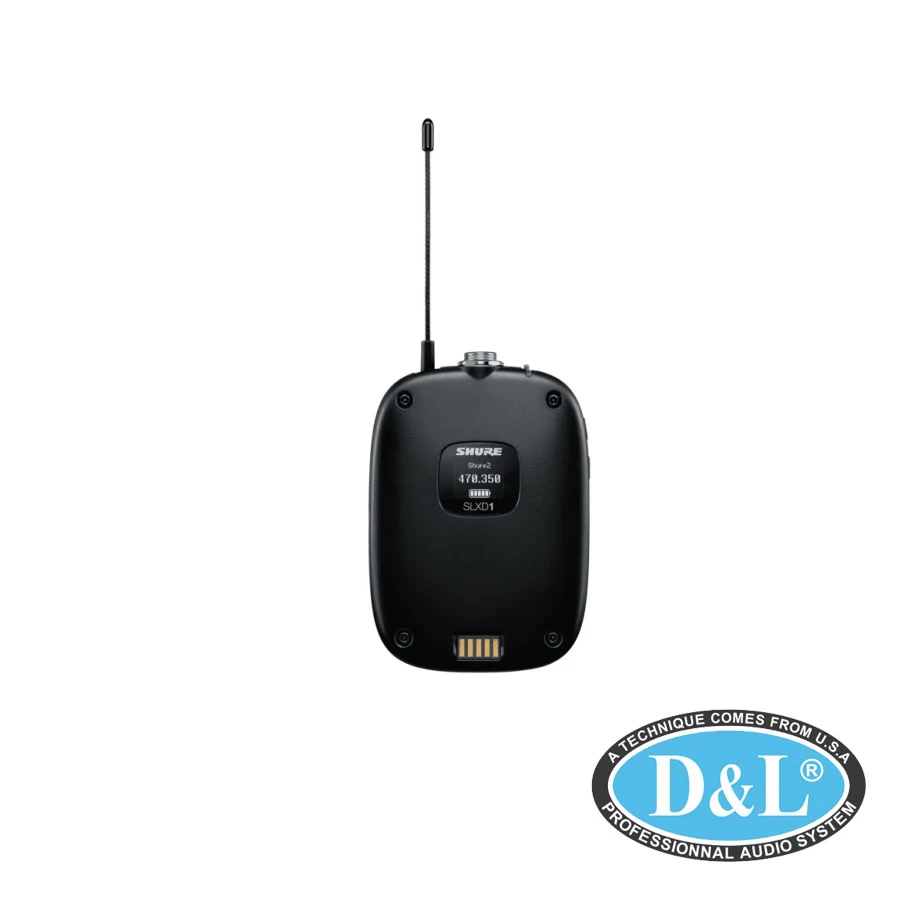

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
FEATURES

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • TQG connectivity offers a variety of microphone options
  • Ergonomic, durable plastic construction

Thông số kỹ thuật

Battery TypeRechargeable Li-Ion
or 1.5 V AA batteries
Dimensions
(H × W × D)
3.86 × 2.68 × 1.0 in
(98 × 68 × 25.5 mm)
Weight3.1 oz (89 g)
HousingPC/ABS
AUDIO INPUT
Connector4-Pin male mini connector (TA4M)
ConfigurationUnbalanced
Impedance1 MΩ
Maximum Input Level8.2 dBV
(2.57 Vrms, 7.27 Vpp)
Preamplifier Equivalent
Input Noise (EIN)
–118 dBV
RF OUTPUT
Antenna Type1/4 Wave
Occupied Bandwidth<200 kHz
Modulation TypeShure Propietary Digital
Power1 mW/10 mW
Varies by region.
See Frequency Range and
Output Power Table.



Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
