Micro SLXD24A/SM58

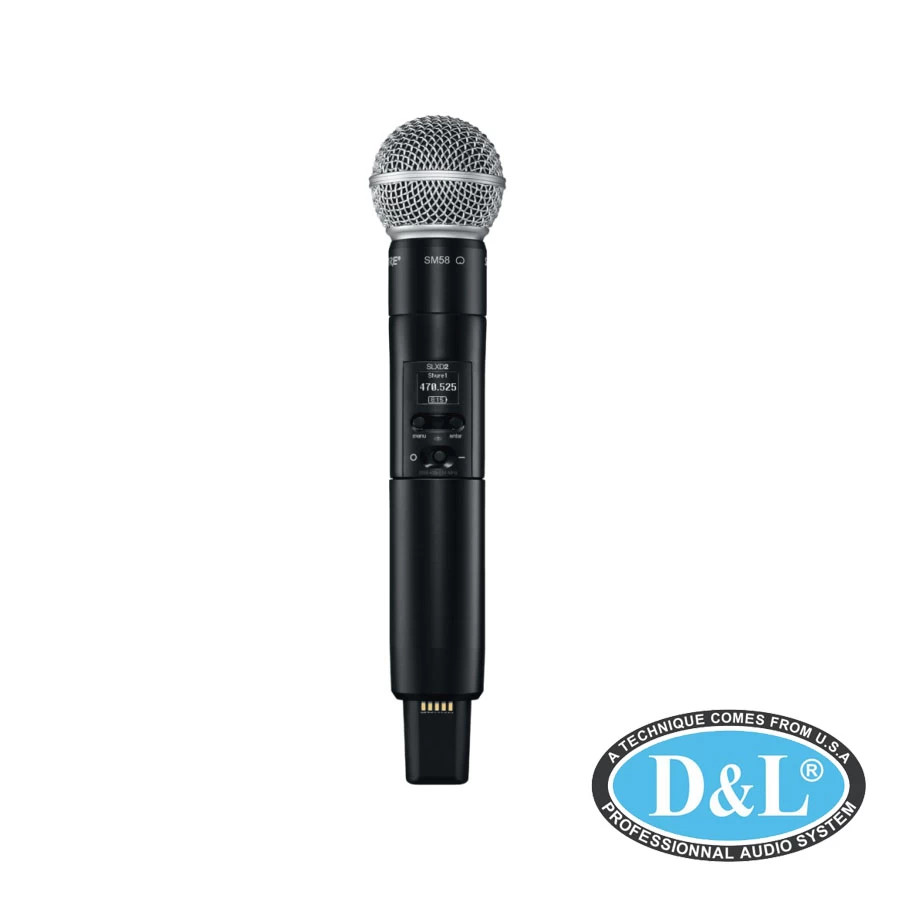

Featuring the legendary SM58® Cardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

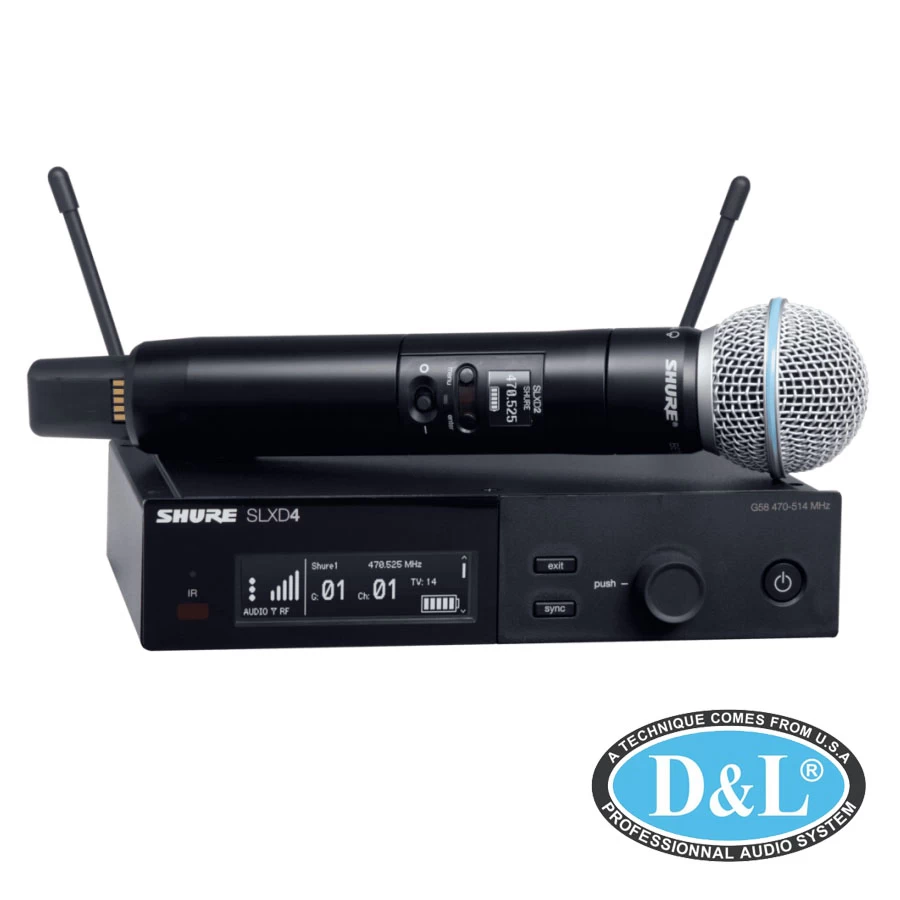

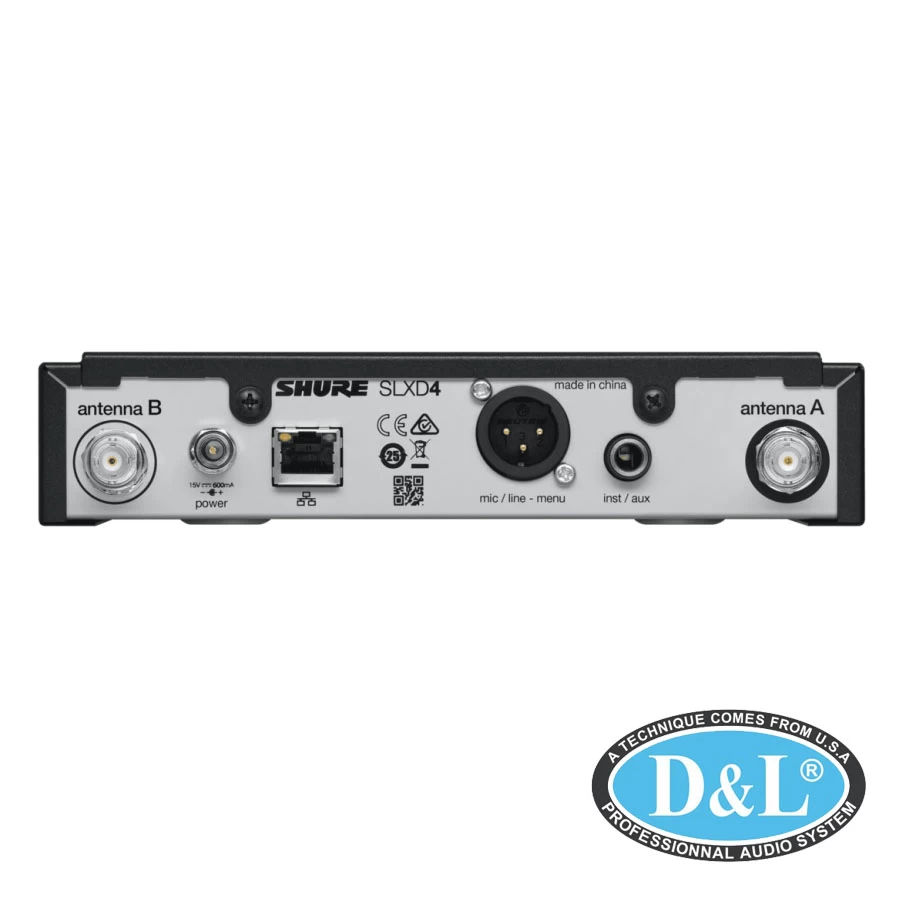

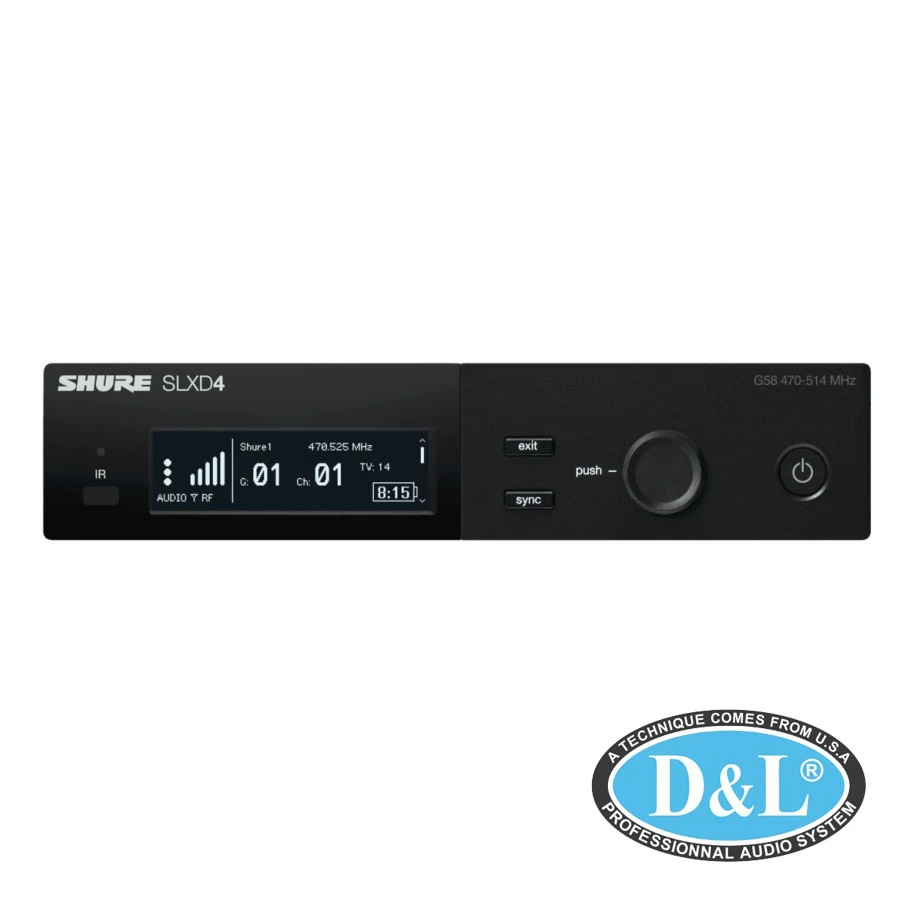

The SLXD24/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/SM58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

OVERVIEW

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industryleading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

FEATURES

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8
• MHz bandv
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903
• rechargeable battery
• Interchangeable microphone capsules
• Rugged metal construction

Thông số kỹ thuật

• Battery Type
• Rechargeable Li-Ion
• or 1.5 V AA batteries
• Dimensions (Dia. × L)
• 1.46 × 6.93 in
• (37.1 × 176 mm)
• Weight : 5.2 oz. (147 g)
• Housing : Aluminum
• AUDIO INPUT
• Configuration : Unbalanced
• Maximum Input Level
• 8.2 dBV
• (2.57 Vrms, 7.27 Vpp)
• Note: Dependent on Microphone Type
• RF OUTPUT
• Antenna Type : Integrated Single-Band Helical
• Occupied Bandwidth : <200 kHz
• Modulation Type : Shure Propietary Digital
• Power : 1 mW/10 mW
