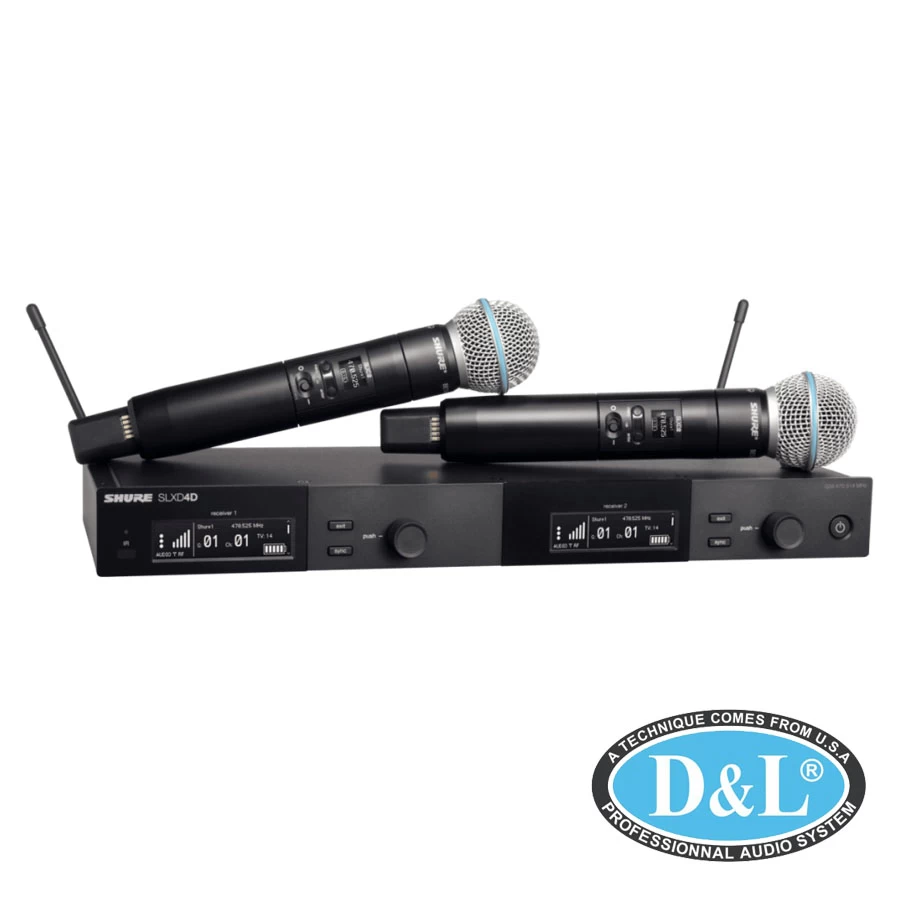

Featuring two Beta® 58 Supercardioid Dynamic Microphone capsules on SLXD2 handheld wireless transmitters, the SLXD24D/B58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
The SLXD24D/58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4D dual-channel receiver and two SLXD2/B58 handheld transmitters with antenna and rackmount accessories and 4 AA batteries..
OVERVIEW
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industryleading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
FEATURES
SLXD4 / SLXD4D
Dimensions
SLXD4 | 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D |
SLXD4D | 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D |
Weight
SLXD4 | 816 g, without antennas |
SLXD4D | 1451 g, without antennas |
RF INPUT
1/4" (6.35 mm) | Yes |
XLR | Yes |
AUDIO OUTPUT
1/4" (6.35 mm) | Balanced (Tip = audio +, Ring = audio -, Sleeve = ground ) |
XLR | Balanced (1=ground, 2=audio +, 3=audio −) |
Impedance
1/4" (6.35 mm) | 1.3 kΩ (670 ΩUnbalanced) |
XLR (line) | 400 Ω (200 ΩUnbalanced) |
XLR (mic) | 150 Ω |
Full Scale Output
1/4" (6.35 mm) | +15 dBV differentially (+9 dBV single) |
XLR | LINE setting= +15 dBV, MIC setting= -15 dBV |
