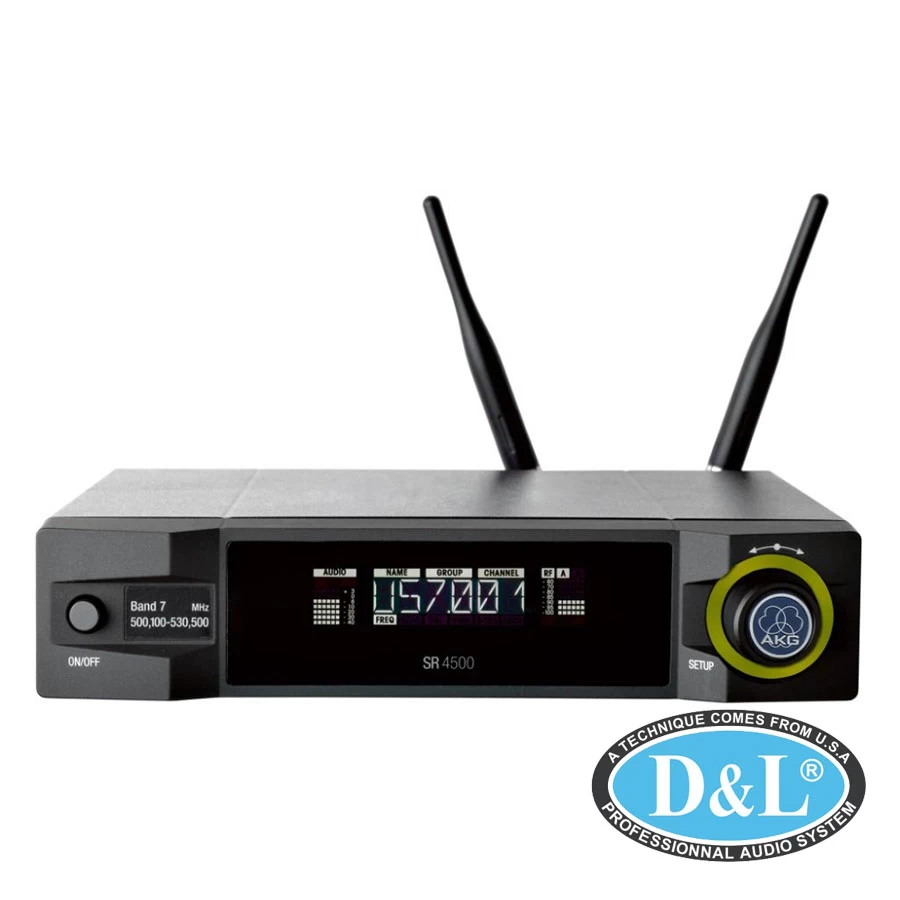

Micro SR4500

The SR4500 analog true diversity reference wireless receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during soundchecks with information on the systems signal quality. The programmable status monitor shows all relevant system information on an illuminated multicolor LED ring. Its precise battery life readout in hours is a valuable advantage in wireless applications. A wide range of professional antenna splitters, power supplies and high-quality remote antennas is available to set up a reliable wireless system, even in a large area.

Thông số kỹ thuật

General Specifications

• Switching bandwidth : 30 MHz
• Recommended simultaneous channels : 50
• Number of selectable frequencies : 1220 (selectable in 25kHz steps)
• Frequency Selection : Selectable frequency in 25kHz steps
• Radio range (Line of sight) : 100m (depending on antenna system)
• Modulation : FM (Frequency Modulation)
• Encryption : No encryption
• Diversity : True Diversity

Audio Output

• Amount : 1
• Gender : Female
• Contacts : 3-pin
• NoteUnbalanced :  Audio Output
