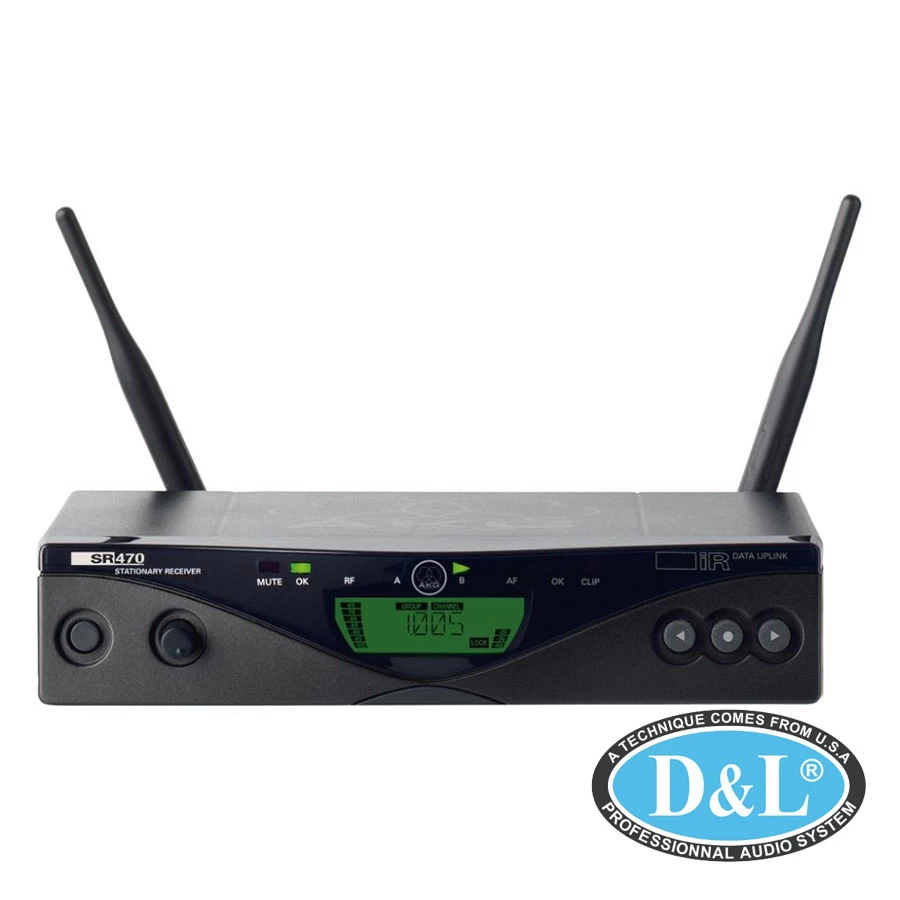

Micro SR470

SR470 analog space diversity professional wireless receiver comes in a rugged half-rack metal housing. The enhanced Auto Setup, Environment Scan and Rehearsal mode allows a very quick and easy system setup. The programmable backlight changes color to warn the user of critical operating conditions e.g. transmitter low battery information, audio peaks, or low radio signal strength. A wide range of professional antenna splitters, power supplies, and high quality remote antennas are available to handle complex antenna systems and up to 48 simultaneous wireless channels, even with large covering area.

Thông số kỹ thuật

General Specifications

• Switching bandwidth : 30.5 MHz (depending on local regulations)
• Modulation : FM
• Sensitivity : 6 dBµV / -100 dBm
• Receiver type : Super heterodyne
• Diversity systemµ : C controlled space diversity
• Audio bandwidth : 35 to 20,000 Hz
• THD at 1 kHz : <0.3%
• Signal-to-noise : 120 dB(A)
• Audio outputs : balanced XLR, switchable to -30 or 0 dBm ; unbalanced TS 1/4" jack
• Audio output level : +9 dBu (max.)
• Antenna inputs : 2x 50-ohm BNC female connectors
• Transmitter battery indication : low battery
• Power supply : 12 V / 500 mA DC
• Dimensions : 200 x 44 x 190 mm (7.8 x 1.7 x 7.4 in.)
• Weight : 972 g (2.2 lbs.)
