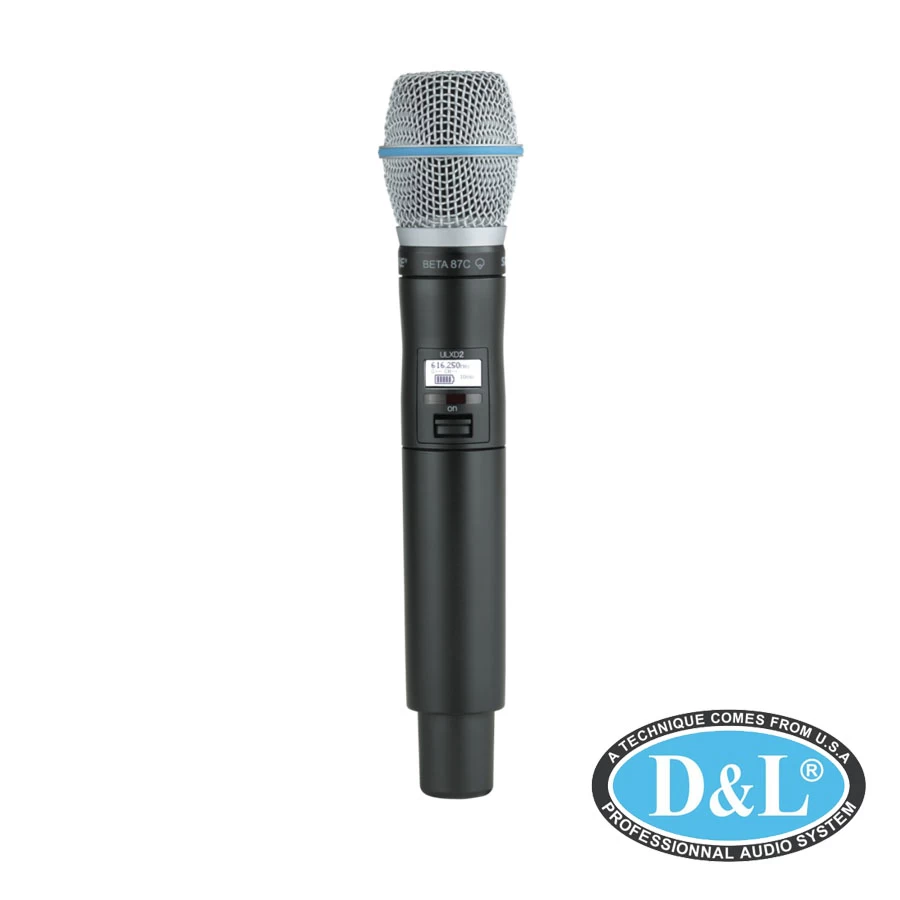

Micro ULXD2/B87C

Micro ULXD2/B87C

Mã sản phẩm : ULXD2/B87C

Gọi báo giá: 0961.280.678 - 0904.59.59.49

Freeship cho đơn hàng 1.000.000đ

Kiểm tra hàng trước khi thanh toán

Miễn phí đổi trả hàng trong 7 ngày

Digital Handheld Transmitter with Beta 87C Capsule

Có thể bạn quan tâm

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems.

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
Interchangeable Shure microphone cartridges
AES 256-bit encryption for applications for which secure transmission is needed
Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
Shure Lithium-Ion rechargeable battery pack provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
Backlit LCD with easy to navigate menu and controls
Rugged metal construction
Frequency and power lockout

Thông số kỹ thuật

Transmitter

Transmitter Type	Handheld
RF Output Power	1 / 10 / 20 mW (Switchable)
Audio I/O	None
Muting	Off/On Switch
Gain Range	0 to 21 dB (3 dB Steps)
Sync Method	IR
Antenna	1 x Internal Single-Band Helical
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life	Med.: 11 Hours (Alkaline) Med.: 12 Hours (Lithium Shure SB900A)
Display & Indicators	1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
Housing	Aluminum
Operating Temperature	0 to 122°F / -17 to 50°C
Storage Temperature	-20 to 165°F / -28 to 73°C
Dimensions	10.1 x 2" / 256 x 51 mm
Weight	12 oz / 340 g

Microphone

Microphone Type	Handheld
Sound Field	Mono
Capsule	Electret Condenser
Polar Pattern	Supercardioid
Frequency Range	20 Hz to 20 kHz
SNR	70.5 dB A-Weighted
Equivalent Noise Level	23.5 dB
Maximum SPL	140.5 dB SPL
THD	1%
Impedance	150 Ohms
Sensitivity	-52.5 dBV/Pa

Packaging Info

Package Weight	1.44 lb
Box Dimensions (LxWxH)	12.7 x 4.95 x 3.45"

Wireless Technology	Digital UHF
RF Frequency Band	H50: 534 to 598 MHz
RF Bandwidth	64 MHz
Frequency Step Size	25 kHz
RF Channel Scanning	Auto-Scan
Max Operating Range	328.1' / 100 m
Sample Rate/Resolution	48 kHz / 24-Bit
Latency	< 2.9 ms
Encryption	AES 256
Modulation	Proprietary
