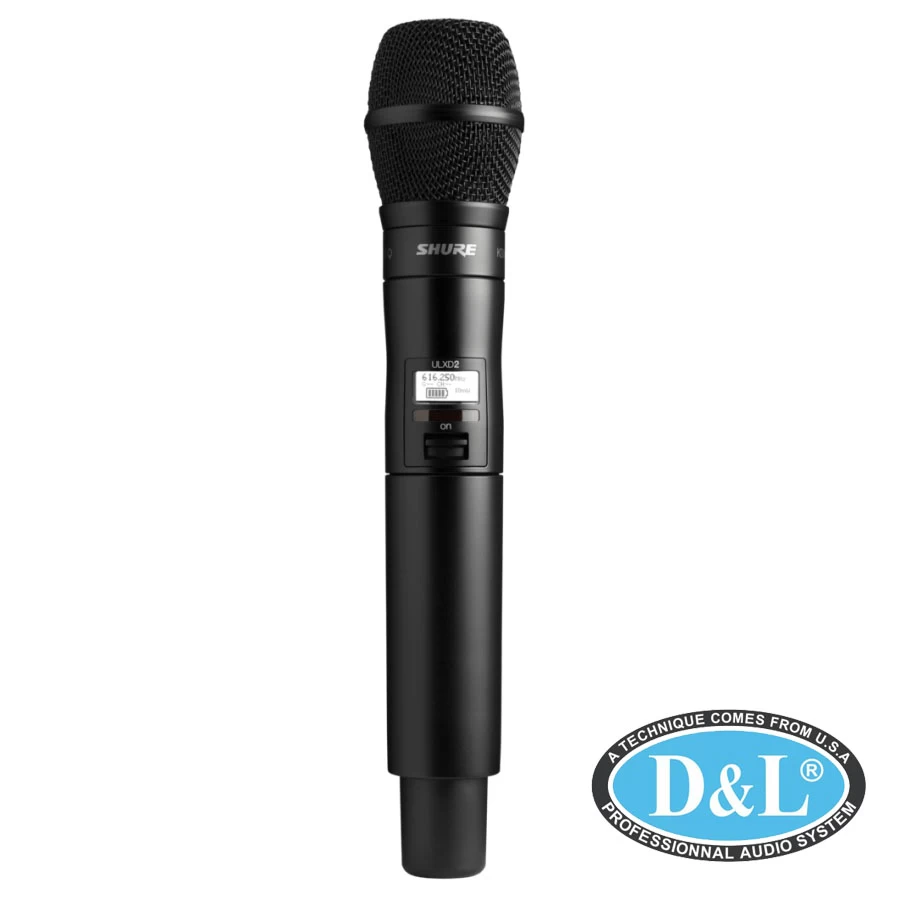

Micro ULXD2/KSM9HS
Micro ULXD2/KSM9HS

Micro ULXD2/KSM9HS

Mã sản phẩm : ULXD2/KSM9HS

(0)

Gọi báo giá: 0961.280.678 - 0966.549.839
icon
Freeship cho đơn hàng 1.000.000đ
icon
Hỗ trợ trả góp - thẻ tín dụng
icon
Linh kiện chính hãng
Digital Handheld Transmitter with KSM9HS Capsule
Có thể bạn quan tâm
Xem tất cả
BỘ MICRO ADX400R BỘ MICRO ADX400R
Rated out of 5

BỘ MICRO ADX400R

Liên hệ
BỘ MICRO CỔ NGỖNG DL-902 BỘ MICRO CỔ NGỖNG DL-902
Rated out of 5

BỘ MICRO CỔ NGỖNG DL-902

Liên hệ
Micro DL-5.0 Micro DL-5.0
Rated out of 5

Micro DL-5.0

Liên hệ
Micro DW-68P Micro DW-68P
Rated out of 5

Micro DW-68P

Liên hệ
Micro WMS40 Mini Single Instrumental Set Micro WMS40 Mini Single Instrumental Set
Rated out of 5

Micro WMS40 Mini Single Instrumental Set

Liên hệ
Micro WMS470 Sports Set Micro WMS470 Sports Set
Rated out of 5

Micro WMS470 Sports Set

Liên hệ
Micro WMS470 Vocal Set C5 Micro WMS470 Vocal Set C5
Rated out of 5

Micro WMS470 Vocal Set C5

Liên hệ
Micro WMS470 Vocal Set D5 Micro WMS470 Vocal Set D5
Rated out of 5

Micro WMS470 Vocal Set D5

Liên hệ

The KSM9HS with the ULXD2 digital handheld transmitter features the KSM9HS hypercardioid/subcardioid condenser vocal microphone head which captures vocal subtlety with extraordinary detail to deliver clear articulation and precise vocal reproduction for live performance.

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure Lithium-Ion rechargeable battery pack provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Thông số kỹ thuật

Transmitter
Transmitter TypeHandheld
RF Output Power1 / 10 / 20 mW (Switchable)
Audio I/ONone
MutingOff/On Switch
Gain Range0 to 21 dB (3 dB Steps)
Sync MethodIR
Antenna1 x Internal Single-Band Helical
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery LifeMed.:
11 Hours (Alkaline)
Med.:
12 Hours (Lithium Shure SB900A)
Display & Indicators1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
HousingAluminum
Operating Temperature0 to 122°F / -17 to 50°C
Storage Temperature-20 to 165°F / -28 to 73°C
Dimensions10.9 x 2" / 278 x 51 mm
Weight12.3 oz / 348 g
Microphone
Microphone TypeHandheld Capsule
Sound FieldMono
CapsuleElectret Condenser
Polar PatternCardioid, Supercardioid
Frequency Range50 Hz to 20 kHz
SNR72 dB
Maximum SPL152 dB SPL
Sensitivity-51 dBV/Pa at 1 kHz
Dynamic RangeHypercardioid: 130.8 dB
Wide-Angle Cardioid: 131.3 dB
Packaging Info
Package Weight1.575 lb
Box Dimensions (LxWxH)12.75 x 4.9 x 3.55"
Wireless TechnologyDigital UHF
RF Frequency BandG50:
470 to 534 MHz
RF Bandwidth64 MHz
Frequency Step Size25 kHz
Max Operating Range328.1' / 100 m
Sample Rate/Resolution48 kHz / 24-Bit
Latency< 2.9 ms
EncryptionAES 256
ModulationProprietary



Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
