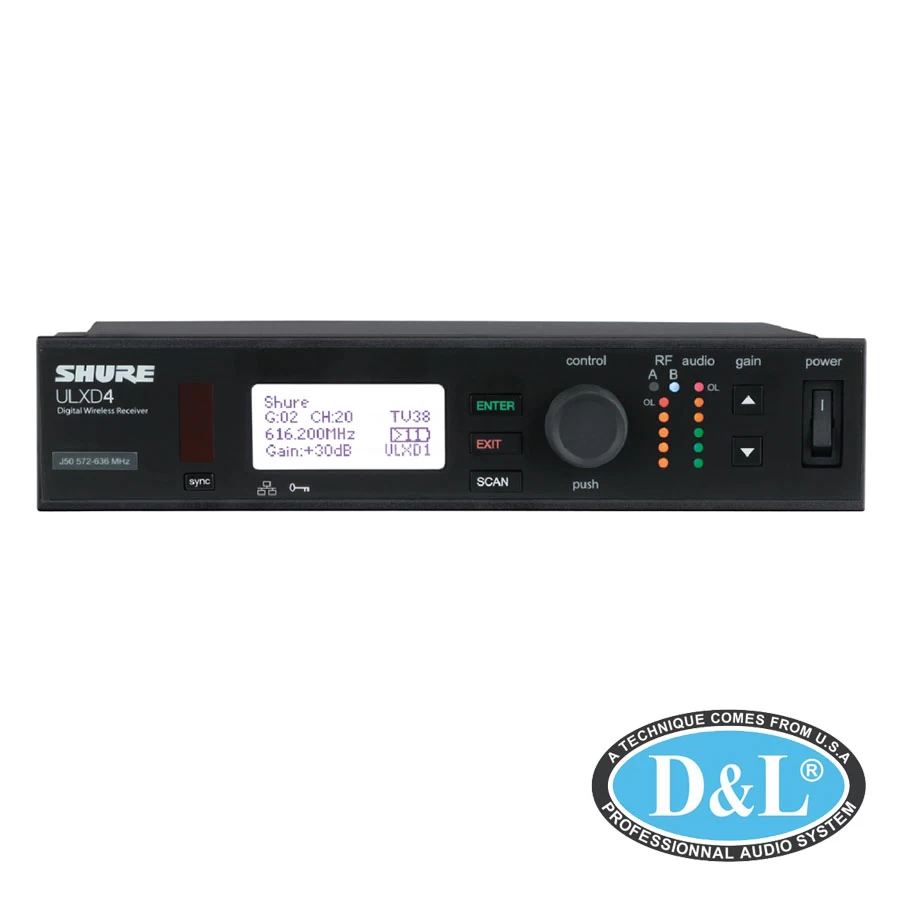

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.
- Digital Predictive Switching Diversity
- Up to 72 MHz tuning range (region dependent)
- Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
- Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
- Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
- Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
- Compatible with AMX and Crestron control systems
- Interference detection and alerts
- Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
- Removable half wave antennas
- 24 bit / 48 kHz digital audio
- 20 Hz – 20 kHz frequency range with flat response
- Greater than 120 dB dynamic range
- Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
- AES-256 bit encryption equipped for secure wireless transmission
Thông số kỹ thuật
- Dimensions
- 44 mm × 482 mm × 274 mm (1.73 in.
- 18.97 in. × 10.79 in.), H × W × D
- Weight : 3.36 kg (7.4 lbs), without antennas
- Housing Steel : Extruded Aluminum
- Power
- Requirements : 100 to 240 V AC, 50-60 Hz, 0.26
- A max.
- RF OUTPUT
- Spurious Rejection : >80 dB, typical
- Connector Type : BNC
- Impedance : 50 Ω
- Bias Voltage : 12–13 V DC, 150 mA maximum,
- per antenna
- AUDIO INPUT
- Gain Adjustment
- Range
- –18 to +42 dB in 1 dB steps
- (plus Mute setting)
- Configuration XLR: Balanced
- (1=ground, 2=audio +, 3=audio –)
- Impedance 100 Ω
- Full Scale Output LINE setting= +18 dBV,
- MIC setting= –12 dBV
- Mic/Line Switch 30 dB pad
- Phantom Power
- Protection
- Yes
- NETWORKING
- Network Interface Dual Port Ethernet 10/100 Mbps,
- 1 Gbps
- Network
- Addressing
- Capability
- DHCP or Manual IP
