Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.
- Digital Predictive Switching Diversity
- Up to 72 MHz tuning range (region dependent)
- Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
- Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
- Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
- Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
- Compatible with AMX and Crestron control systems
- Interference detection and alerts
- Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
- Removable half wave antennas
- 24 bit / 48 kHz digital audio
- 20 Hz – 20 kHz frequency range with flat response
- Greater than 120 dB dynamic range
- Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
- AES-256 bit encryption equipped for secure wireless transmission
Thông số kỹ thuật
General Features- Up to 72 MHz of RF bandwidth
- Up to 70 simultaneous systems per band in standard mode
- Up to 560 simultaneous systems per band in high density mode
- Fast frequency scanning
- Interference detection and alerts
- Transmitter synchronization via IR link
- Audio frequency response: 20 Hz to 20 kHz
- 24 bit 48 kHz A/D and D/A converters
- Latency: 2.9 ms
- Management via PC or Mac with Wireless Workbench 6 software
- Remote monitoring with the ShurePlus™ Channel iOS app
- Compatible with DTT and 4G
Available frequency bands
- G51: 470 to 534 MHz
- H51: 534 to 598 MHz
- K51: 606 to 670 MHz

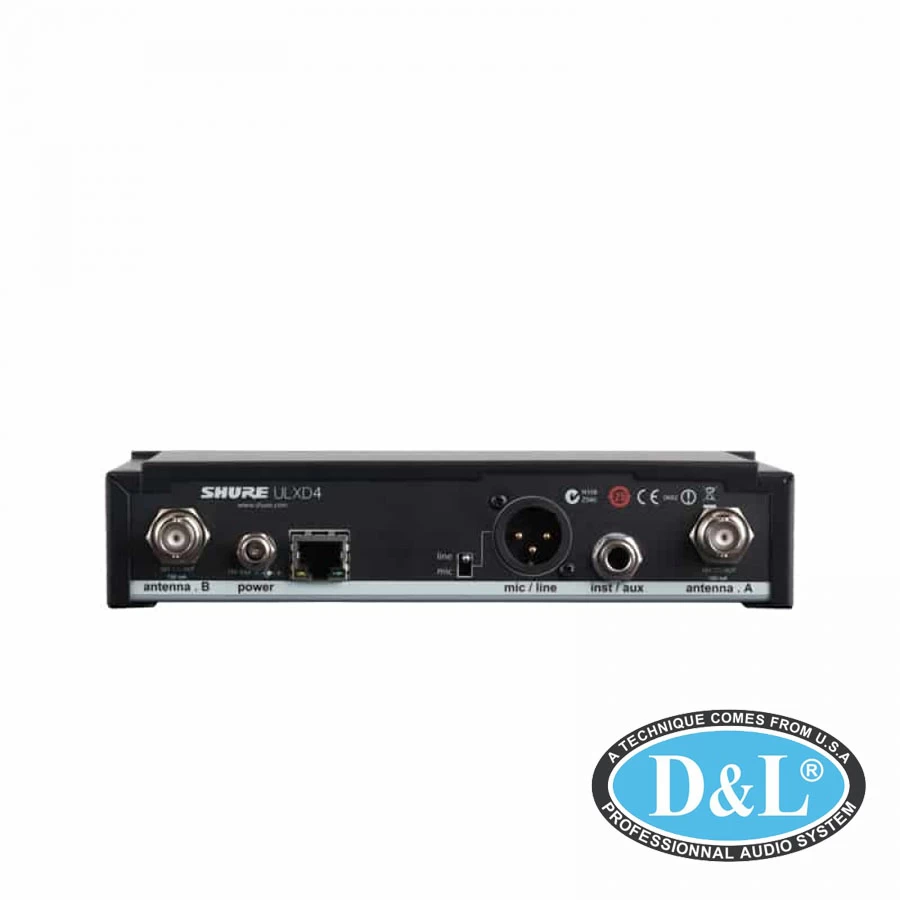

Single receiver features
- Digital predictive diversity
- 60 dB gain adjustable on front panel
- Audio and RF LED bar graph with peak indicator
- Encryption key activation indicator
- Audio outputs: XLR mic/line level and balanced 6.35mm jack
- RF inputs: BNC with active antenna power
- RJ45 connector: 1 x 10 / 100 Mbps Ethernet port
- External 240V AC 15V DC power supply
Additional features of dual and quad receivers
- Frequency diversity function for ULXD1 beltpack transmitters
- Audio summing function for pre-mixed outputs
- Dante™ digital audio network AES67
- RF Cascade outputs BNC connectors
- RJ45 connector: 2 Ethernet / Dante™ 10 / 100 Mbps / 1 Gbps ports
Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
