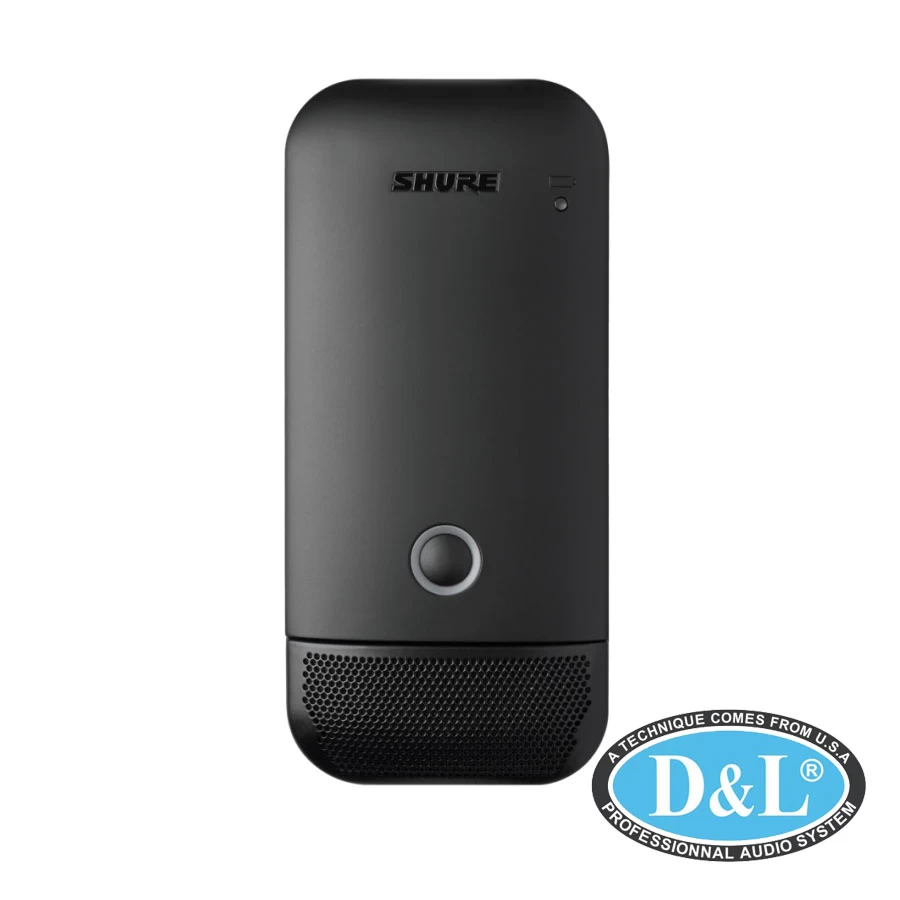

The ULXD6 Wireless Boundary Microphone Transmitter combined with ULX-D or QLX-D receivers deliver uncompromising digital audio clarity and solid RF performance in a form factor that fits perfectly in business settings.
- Live business events demand pristine sound and professional style:
- The ULXD6 Wireless Boundary Microphone Transmitter combined with ULX-D or QLX-D receivers deliver uncompromising digital audio clarity and solid RF performance in a form factor that fits perfectly in business settings.
- Large rental events and meeting spaces benefit from long working range, large channel counts, a wide selection of antenna distribution components, a choice of AA or rechargeable lithium-ion batteries, flexible Dante networking (ULX-D dual and quad channel receivers only), and secure AES-256 encryption.
- Compatible with ULX-D and QLX-D receivers
- Available in UHF TV band, 900 MHz and 1.2/1.5/1.8 GHz bands
- AES 256-bit encryption for applications for which secure transmission is needed
- Low-profile boundary form factor for meetings and events where quick setup and teardown is important
- Very short latency (<3 msec)
- Long transmission range (up to 300 feet/91 meters) for reliable performance
- SB900 rechargeable battery pack provides up to 9 hours of battery life
- Standard AA alkaline batteries are additional power options
- SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations for docked charging of 4 or 8 ULXD6 or ULXD8 transmitters
- Compatible with the full line of Shure antennas and distribution components
- Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
- Adjustable RF power, high-pass filter, and power lock settings

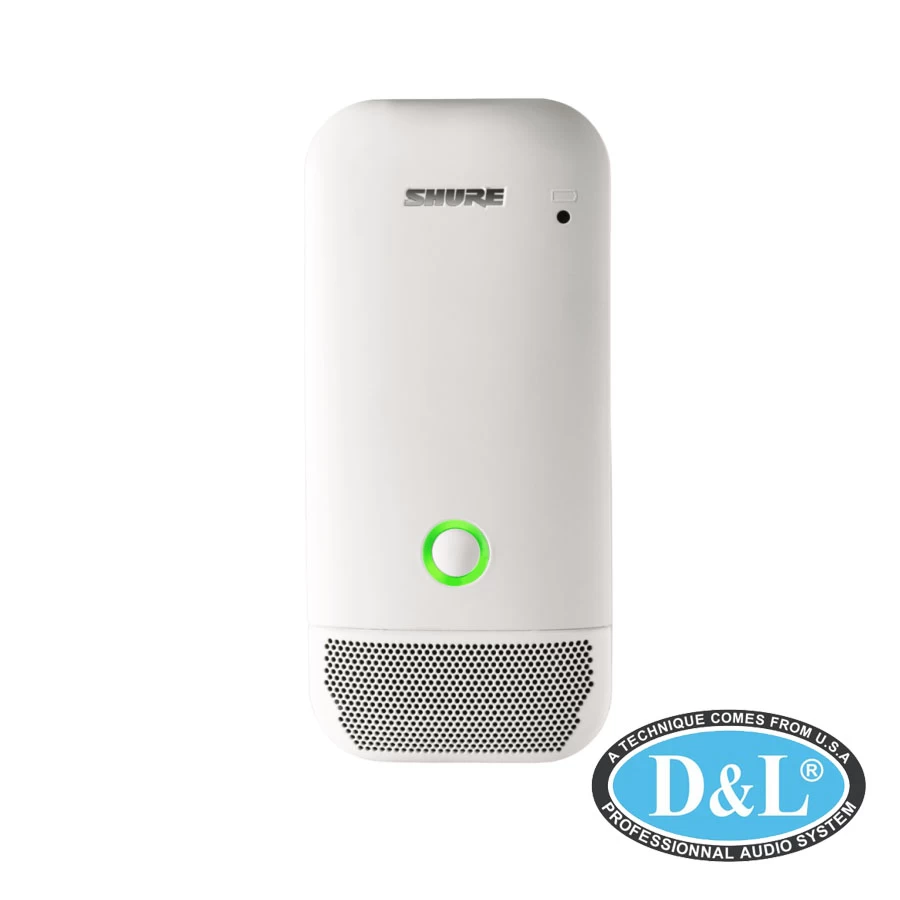

- Available in black or white finishes to complement any meeting room aesthetic
Thông số kỹ thuật
Transmitter
Transmitter Type | Tabletop |
RF Output Power | 1 / 10 / 20 mW |
Audio I/O | None |
Muting | Programmable Mute Switch |
Gain Range | 0 to 21 dB (3 dB Steps) |
Signal Processing | High-Pass Filter: -12 dB at 150 Hz, 12 dB/Octave Slope |
Sync Method | IR |
Antenna | 1 x Internal |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Shure SB900A (Not Included) |
Approx. Battery Life | Med.: 8 Hours (Alkaline) Med.: 9 Hours (Lithium Shure SB900A) |
USB/Lightning Connectivity | 1 x USB-A (Charging, Host Connection) |
Display & Indicators | 1 x LED (Mute) |
Housing | Plastic |
Dimensions | 2.4 x 1.3 x 4.5" / 62 x 34 x 114 mm |
Weight | 8.5 oz / 241 g (with Batteries) |
Microphone
Microphone Type | Boundary |
Sound Field | Mono |
Polar Pattern | Cardioid |
Packaging Info
Package Weight | 0.95 lb |
Box Dimensions (LxWxH) | 6.6 x 4.3 x 3.3" |
Wireless Technology | Digital UHF |
RF Frequency Band | G50: 470 to 534 MHz |
RF Bandwidth | 64 MHz |
Frequency Step Size | 25 kHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 328.1' / 100 m |
Sample Rate/Resolution | 48 kHz / 24-Bit |
Latency | < 3 ms |
Encryption | AES 256 |
Modulation | Proprietary |
