Micro C411 PP

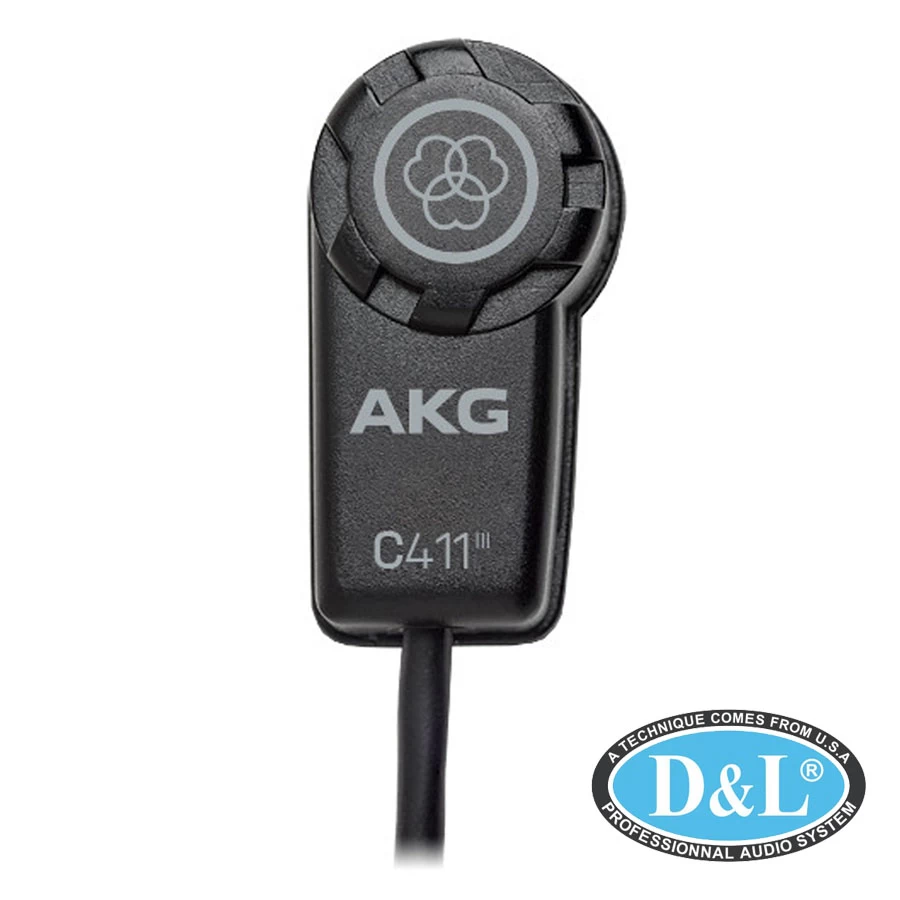

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.

Thông số kỹ thuật

General Specifications

• Type : Pre-polarized condenser transducer
• Polar Pattern : Figure of eight
• Audio frequency bandwidth : 10 - 18000 Hz
• Sensitivity : 2 mV/Pa
• Electrical impedance : 200 Ohms
• Recommended load impedance : 1000 Ohms
• Max. SPL for 1%/3% THD : 96 dB / 103 dB
• Current consumption : approx. 2.2 mA

Dimensions

• Length : 9.7 mm
• Width : 14.2 mm
• Height : 26.7 mm
• Net Weight : 225 g (8 oz.)
• Cable length : 3 m (10 ft.)

Design

• Body : plastic
• Finish : matte black

Audio Output

• Type : MPAV standard XLR connector
• Gender : Female
• Contacts : 3-pin
• Powering Interface
• Voltage : 9 to 52 V
• Current : 2 mA

Application

• Live Instrument : Yes

Instrument

• Piano / Strings : Yes
