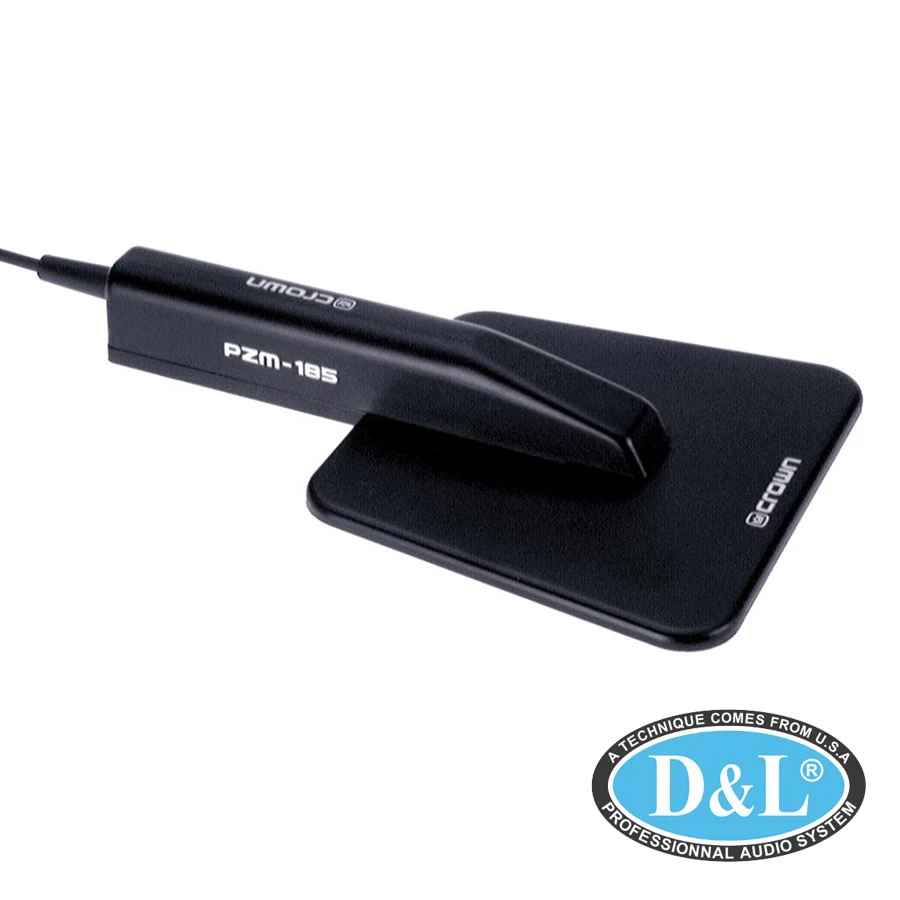

Micro PZM185

The PZM185 is a Pressure Zone Microphone® designed for applications such as group discussions, interviews, broadcast and home video production. The paddle can be detached, which makes it nearly invisible when mounted on tables, floors, walls, lecterns or cameras.

The PZM185 is powered by either an internal AAA 1.5V battery or 12–48V phantom power. It provides a wide, smooth frequency response and is protected against static and RFI. The XLR output is balanced and low-impedance, which allows long cable runs without hum pickup or high-frequency loss.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 50 - 16000 Hz
• Equivalent noise level : 21 dB-A
• Sensitivity : 0.8 mV/Pa
• Signal to Noise : 73 dB-A

Dimensions

• Length : 150 mm
• Width : 87 mm
• Height : 19 mm

Design

• Finish : satin black

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin
• Powering Interface
• Voltage : 12 to 48 V

Device

• Boundary Layer Microphone : Yes
