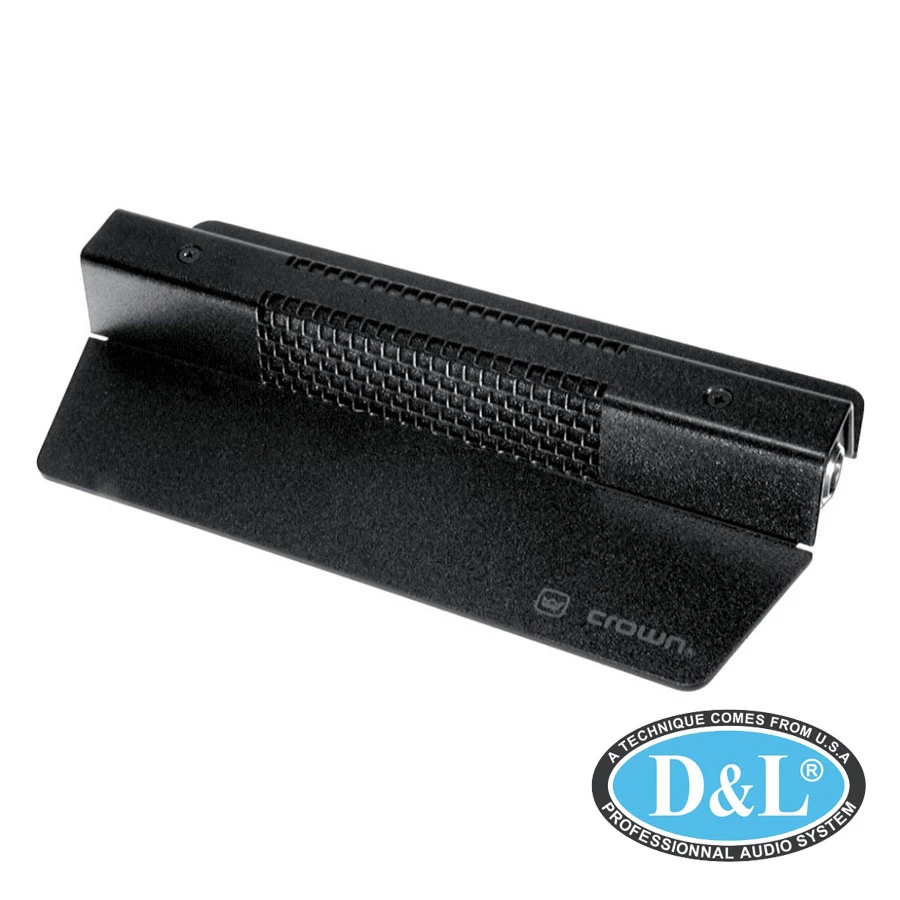

Micro PCC160

The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It´s capable of withstanding up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
PCC® (Phase Coherent Cardioid®) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 50 - 18000 Hz
• Equivalent noise level : 22 dB-A
• Sensitivity : 22 mV/Pa
• Signal to Noise : 72 dB-A
• Recommended load impedance : 2000 Ohms

Dimensions

• Length : 170 mm
• Width : 80 mm
• Height : 20 mm

Design

• Finish : black

Audio Output

• Type : Switchcraft TA3F
• Contacts : 3-pin
• Powering Interface
• Voltage : 12 to 48 V

Application

• Conferencing : Yes

Device

• Boundary Layer Microphone : Yes
