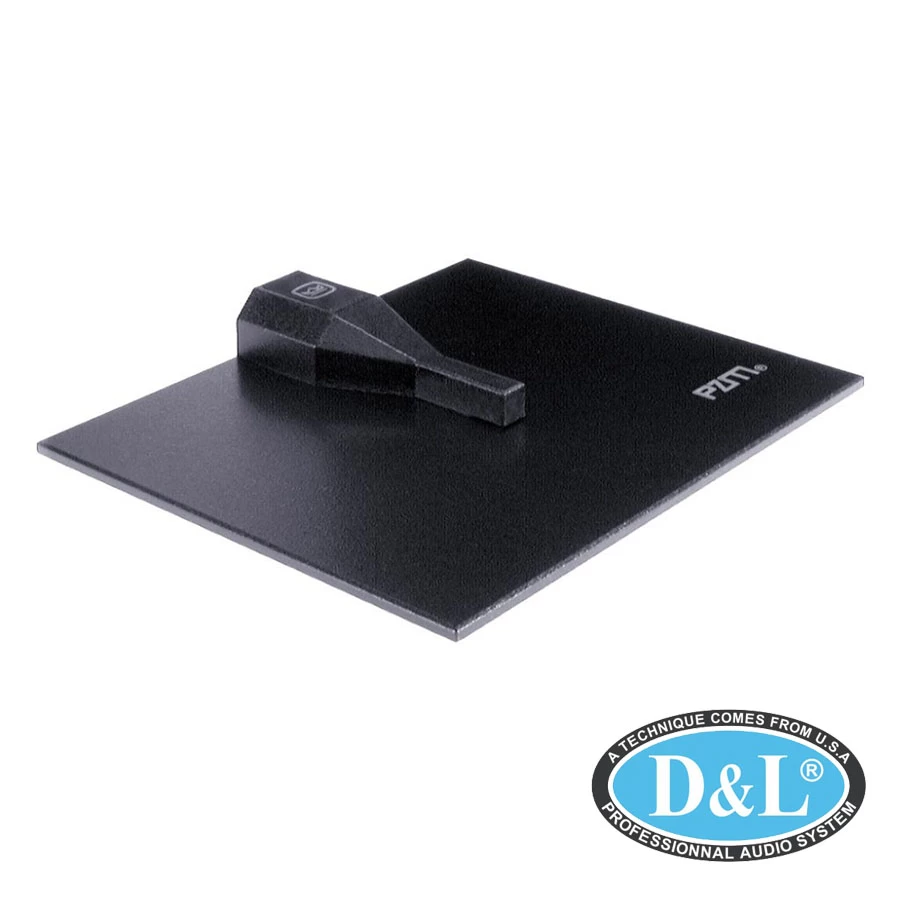

Micro PZM30 D

The PZM30 D high-performance hemispherical boundary layer microphone is a Pressure Zone Microphone® designed for professional recording, sound reinforcement and broadcasting. The capsule is mounted in the “pressure zone”, an area where direct sound and reflected sound are in phase, which provides a 6dB higher sensitivity.

Two selectable frequency responses (flat/rising) provide greater flexibility in mic placement and sonic character. The rising position of the frequency switch adds brilliance and a crisp attack on percussion, drums, or piano. The PZM30 D comes in a very rugged, low-profile, metal housing with detachable cable that makes it sturdy and reliable for heavy duty applications.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 20 - 20000 Hz
• Sensitivity : 7 mV/Pa
• Signal to Noise : 74 dB-A

Dimensions

• Length : 152 mm
• Width : 127 mm
• Height : 19 mm

Design

• Finish : black

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin
• Powering Interface
• Voltage : 12 to 48 V

Application

• Sound Reinforcement : Yes
• Retail : Yes

Device

• Boundary Layer Microphone : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
