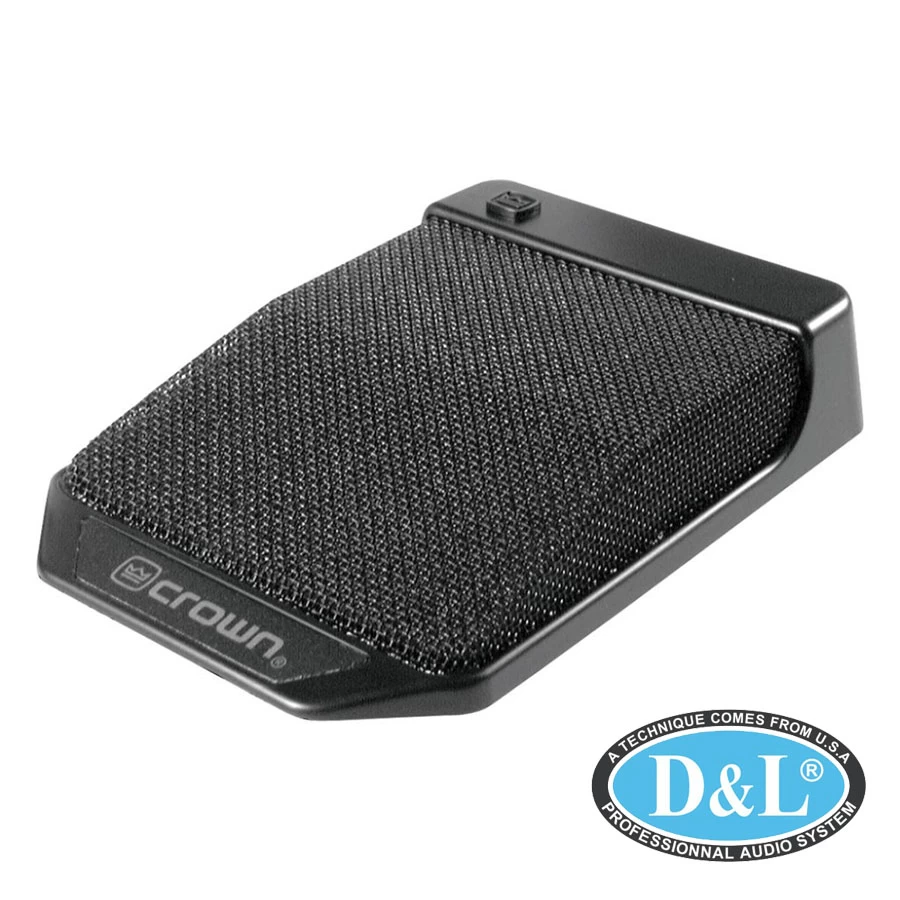

Micro PCC170

The PCC170 and the PCC170 SW are professional boundary layer microphones with supercardioid polar pattern to minimize background noise and feedback. The microphones are designed for use on boardroom tables or lecterns. Both microphones provide a bass-tilt switch, allowing the user to tailor the low-end response and reduce subsonic noise. The included RFI suppression ensures trouble-free operation even with active cell phones nearby.

The PCC170 SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on or momentary off. For easy installation, both microphones offer an XLR connector and a detachable cable.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 50 - 20000 Hz
• Equivalent noise level : 22 dB-A
• Sensitivity : 22 mV/Pa
• Signal to Noise : 72 dB-A

Dimensions

• Length : 123 mm
• Width : 86 mm
• Height : 23 mm

Design

• Finish : black

Audio Output

• Type : Switchcraft TB3M
• Gender : Male
• Contacts : 3-pin
• Powering Interface
• Voltage : 12 to 48 V

Application

• Conferencing : Yes

Device

• Boundary Layer Microphone : Yes

Product specifications may vary according to country or project needs when ordering
Thông số kỹ thuật sản phẩm có thể thay đổi tùy theo nhu cầu của quốc gia hoặc dự án khi đặt hàng
