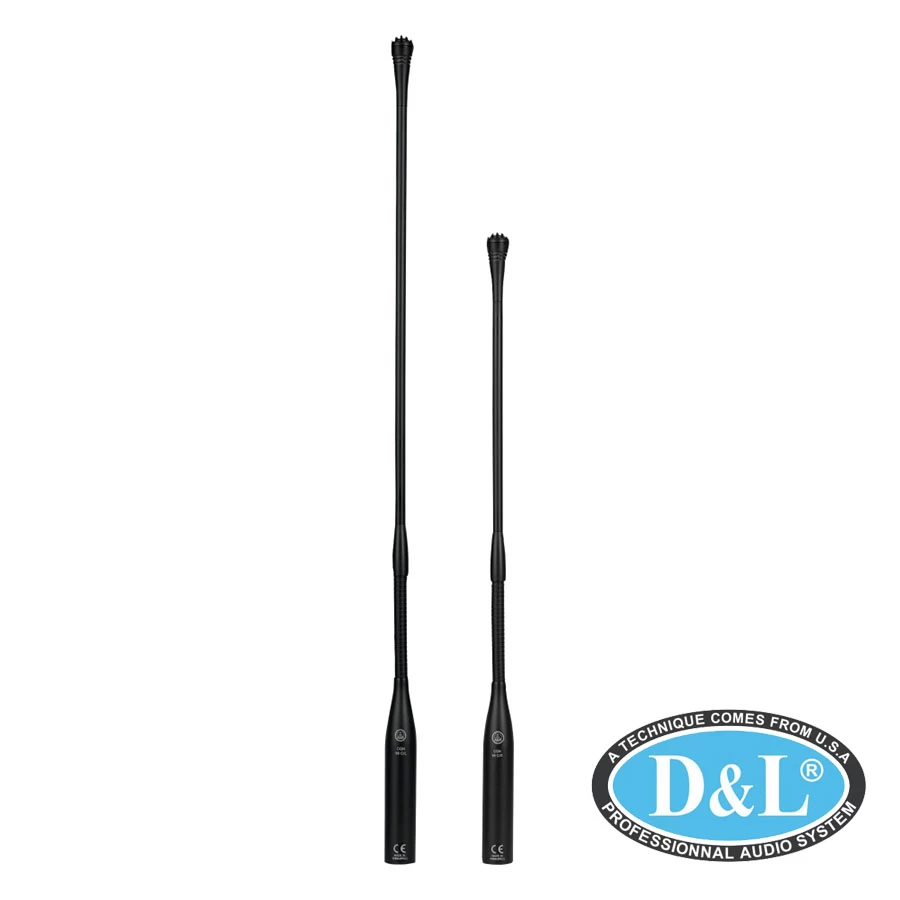

Micro CGN99 C

The CGN99 C/S and CGN99 C/L, part of the DAC Series, are condenser gooseneck microphones with a cardioid polar pattern. They are specially designed for inexperienced speakers who talk into the microphone from widely varying angles. The rugged gooseneck is available in two different lengths - C/S - 30cm (12in); C/L - 50cm (20in) and ideal for fixed and mobile installations. CGN99 C/S and CGN99 C/L come with an integrated XLR phantom power adapter with 250Hz bass rolloff. The phantom power adapter connects to any standard mixer input with 9V to 52V power supply.

Thông số kỹ thuật

General Specifications

• Audio frequency bandwidth : 70 - 18000 Hz
• Equivalent noise level : 21 dB-A
• Signal to Noise : 73 dB-A
• Bass cut filter : 250 Hz
• Electrical impedance : 600 Ohms
• Recommended load impedance : 2000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Height : 380 mm
• Diameter : 13.5 mm
• Net Weight : 160 g

Design

• Finish : matte black

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin

Powering Interface

• Voltage : 9 to 52 V
• Current : 3 m
